0-5574 4-1 OPERATION
SECTION 4 SYSTEM:
OPERATION
4.01 Preparations for Operating
At the start of each operating session:
!
WARNING
Disconnect primary power at the source before assembling or disassembling power supply, torch parts, or torch and leads
assemblies.
A. Torch Parts Selection
Check the torch for proper assembly and appropriate torch parts. The torch parts must correspond with the
type of operation, and with the amperage output of this power supply. Use only genuine Cigweld parts with
this torch.

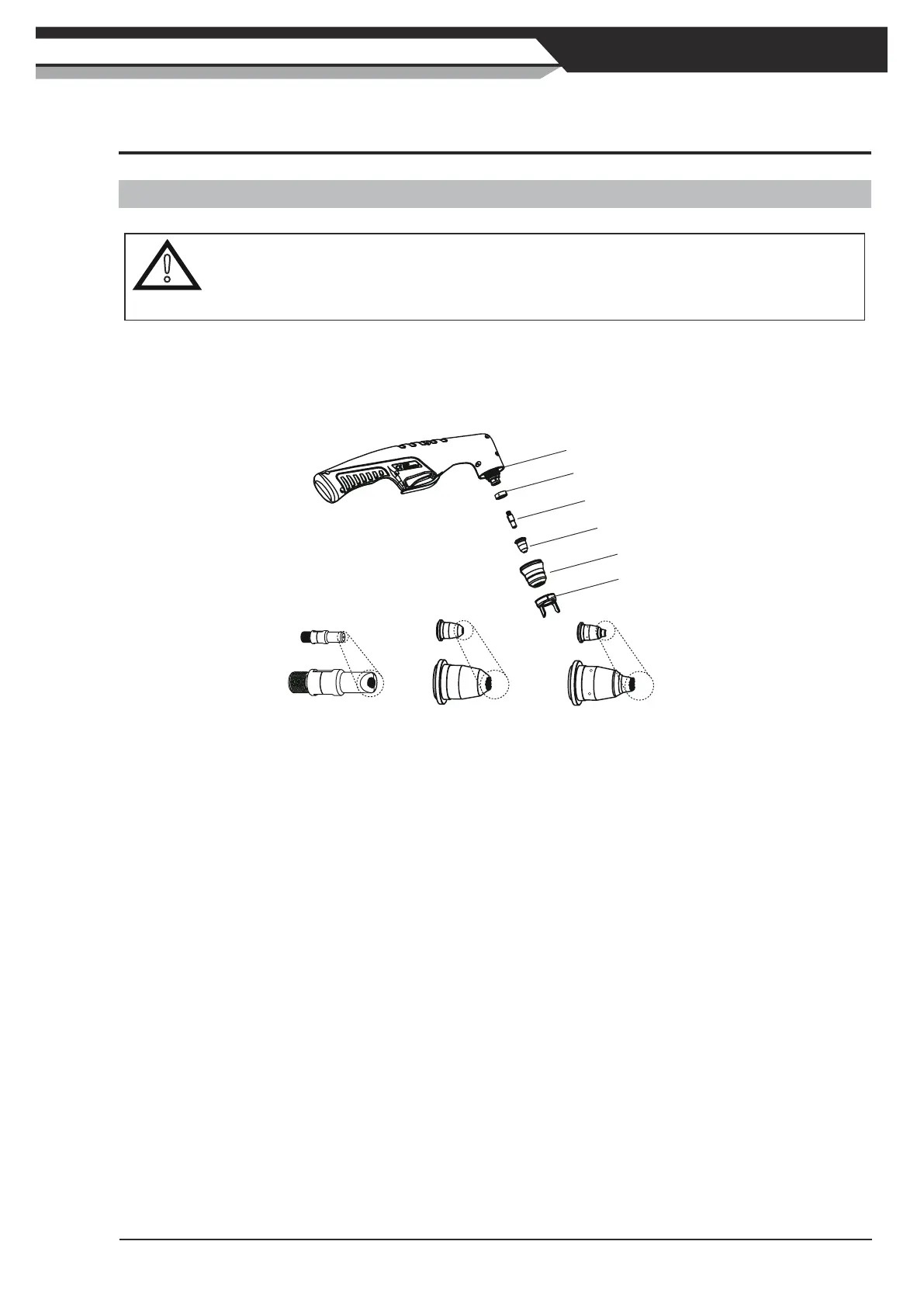

A-13888
O-Ring
Electrode
Tip
Shield Cup
Worn Electrode Worn Cutting Tip
Standoff Guide
Diffuser
Worn Gouging Tip
Figure 4-1: Torch Parts Selection
B. Torch Connection
Check that the torch is properly connected. Refer to Section 3.06 for details.
