ESAB CIGWELD CutSkill 60 - Power Supply Controls and Features

CutSkill 60
OPERATING MANUAL
0-5574 2-3 INTRODUCTION
2.05 Power Supply Controls and Features
1
A-13883
2
3
4
5
6
7
8

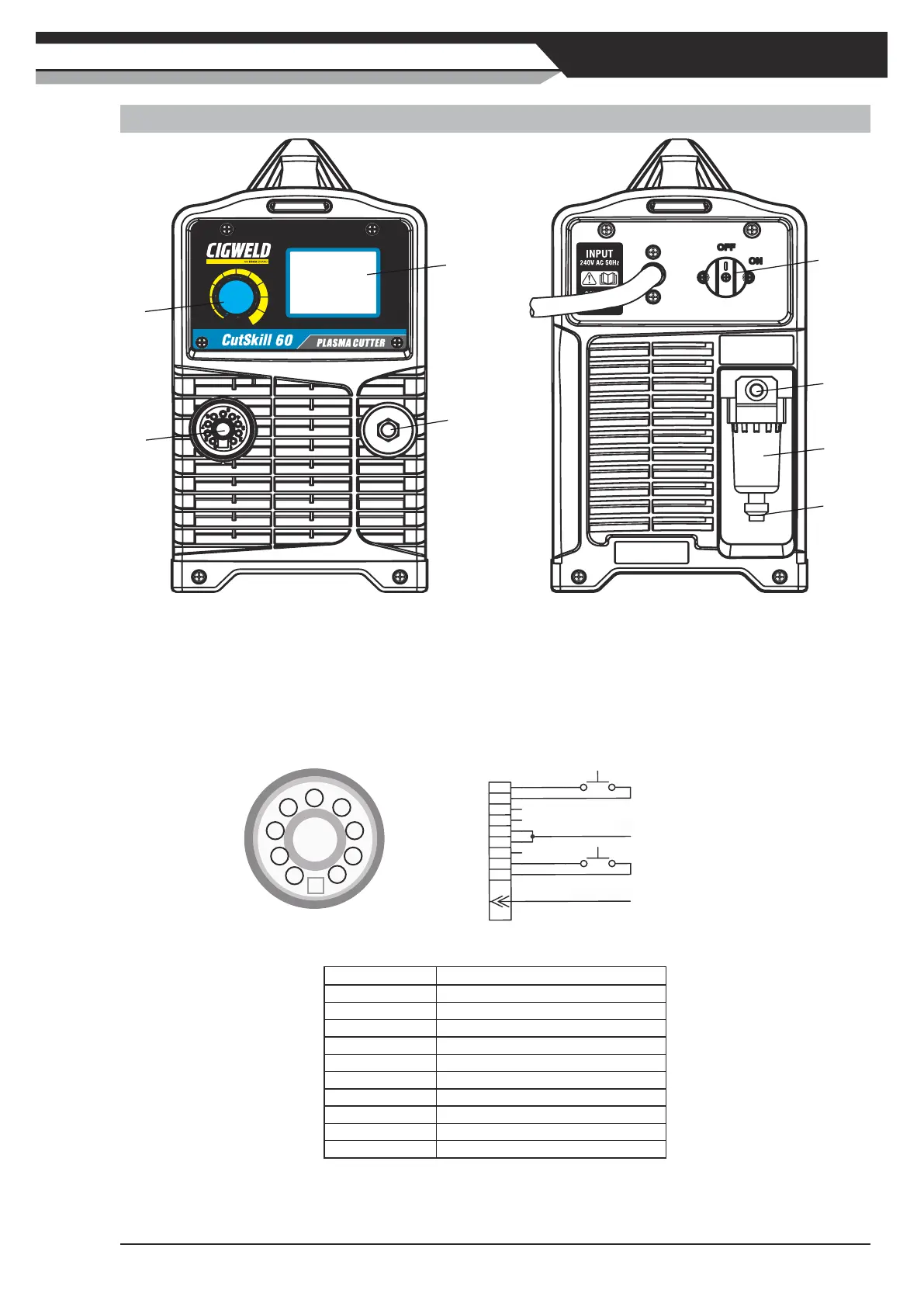

Figure 2-2: CutSkill 60
1. Plasma Cutting Torch Adaptor
The plasma cutting torch adaptor is the connection point for the plasma cutting torch. Connect the torch by
pushing the torch connector into the brass torch adaptor firmly and screwing the plastic torch nut clockwise
to secure in position. To remove the Plasma cutting torch simply reverse these directions.
Trigger Switch
A-13903
1
2
3
4
5
6
7
8
9
PIP Switch
Electrode
Tip
1
2
3
4
5
6
7
8
9
Figure 2-3: Torch Adaptor Connection
Socket Pin Function
1 Torch Trigger
2 Torch Trigger
3 Not Connected
4 Not Connected
5 Tip
6 Tip
7 Not Connected
8 PIP Switch
9 PIP Switch
Centre Socket Electrode
Table 2-4
