ESAB CIGWELD CutSkill 60 - Parts List; Power Source Replacement Parts

CutSkill 60
OPERATING MANUAL
0-5574 6-1 PARTS LIST
SECTION 6:
PARTS LIST
The parts list provides a breakdown of all replaceable components.
6.01 Power Source Replacement Parts
Item # Qty Description Catalog #
1 1 Panel Cover CSP337097
2 1 PCB Inverter CSP337098
3 1 Panel Base CSP337099
4 1 Panel Front CSP337019
5 1 Dinse Socket CSP337020
6 1 Centre Adaptor CSP337021
7 1 PCB LCD CSP337022
8 1 Panel Control CSP337100
9 1 Shield Panel CSP337024
101ControlKnobCSP337025
11 1 PCB Encoder CSP337026
12 1 Output Inductor CSP337101
13 1 Main Transformer CSP337102
14 1 Inductor PFC CSP337103
15 1 Fan Assembly CSP337104
16 1 Solenoid Assebly CSP337031
17 1 Earth Inductor CSP337032
18 1 Power Switch CSP337028
19 1 Pressure Sensor Assembly CSP337106
20 1 Air Regulator CSP337030
21 1 Air Filter CSP337033
22 1 Panel Rear CSP337107
23 1 Common Chock PCB CSP337105
24 1 Handle CSP337108
1
2
3
5
4
6
8
11
10
12
13
15
20
22
23
24
17
18
19
14
21
9
7
A-13885

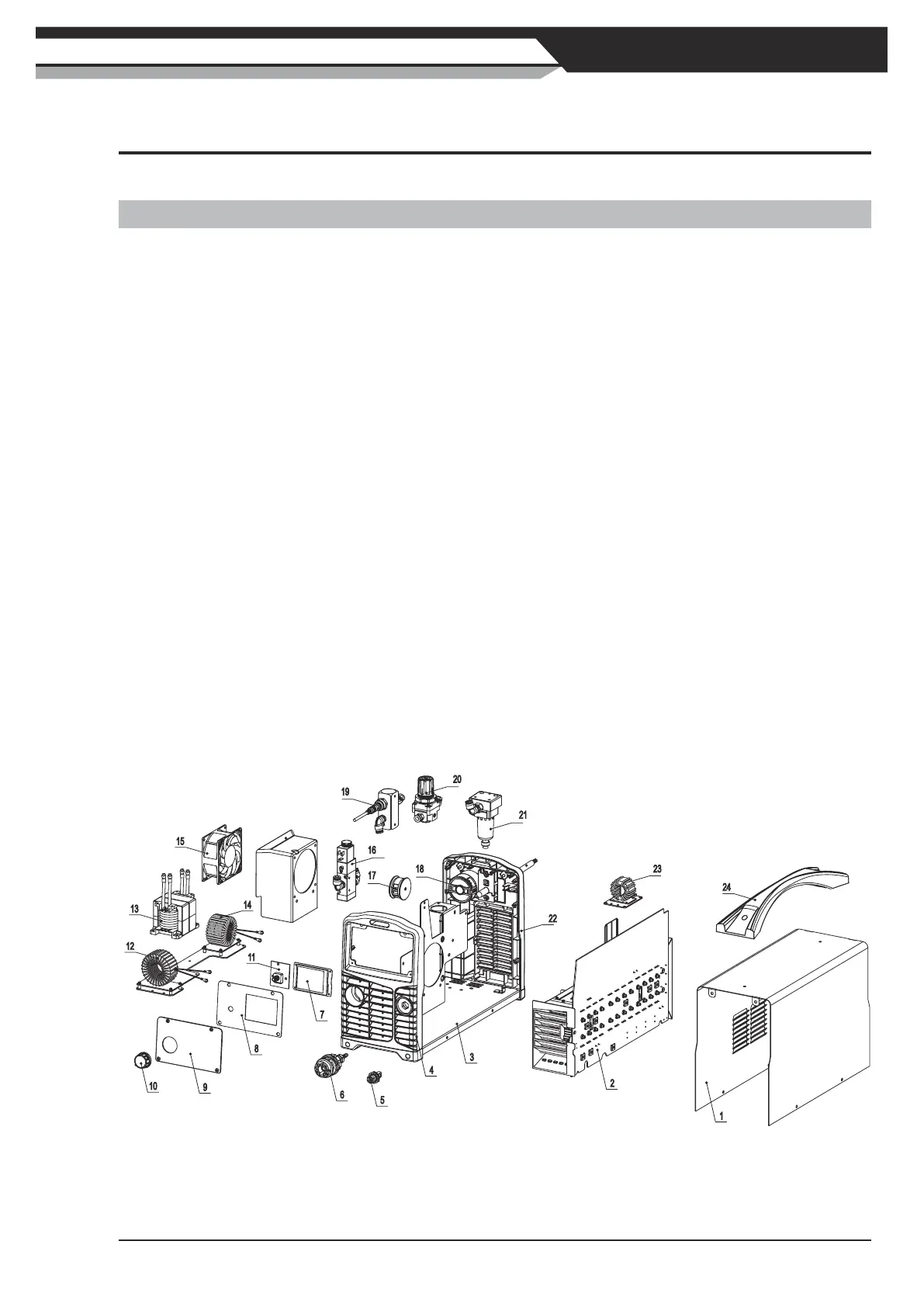

Figure 6-1: CutSkill 60 Power Source Replacement Parts
