CutSkill 60
OPERATING MANUAL
INSTALLATION 3-4 0-5574
C. Installing Optional Inline Filter
An optional inline filter (P/N CSP337039) is recommended for improved filtering with compressed air and keep-
ing moisture or debris out of the torch.
1. Attach the inline filter hose to the Inlet Port 1/4" NPT of the system filter.
2. Attach the filter assembly to the filter hose.
3. Connect the air line to the filter using the 1/4" NPT. The illustration of Figure 3-3 shows typical fittings as an
example.
A-13889
Hose Clamp
Gas Supply
Hose
1/4” NPT Inlet Port
Inline Filter

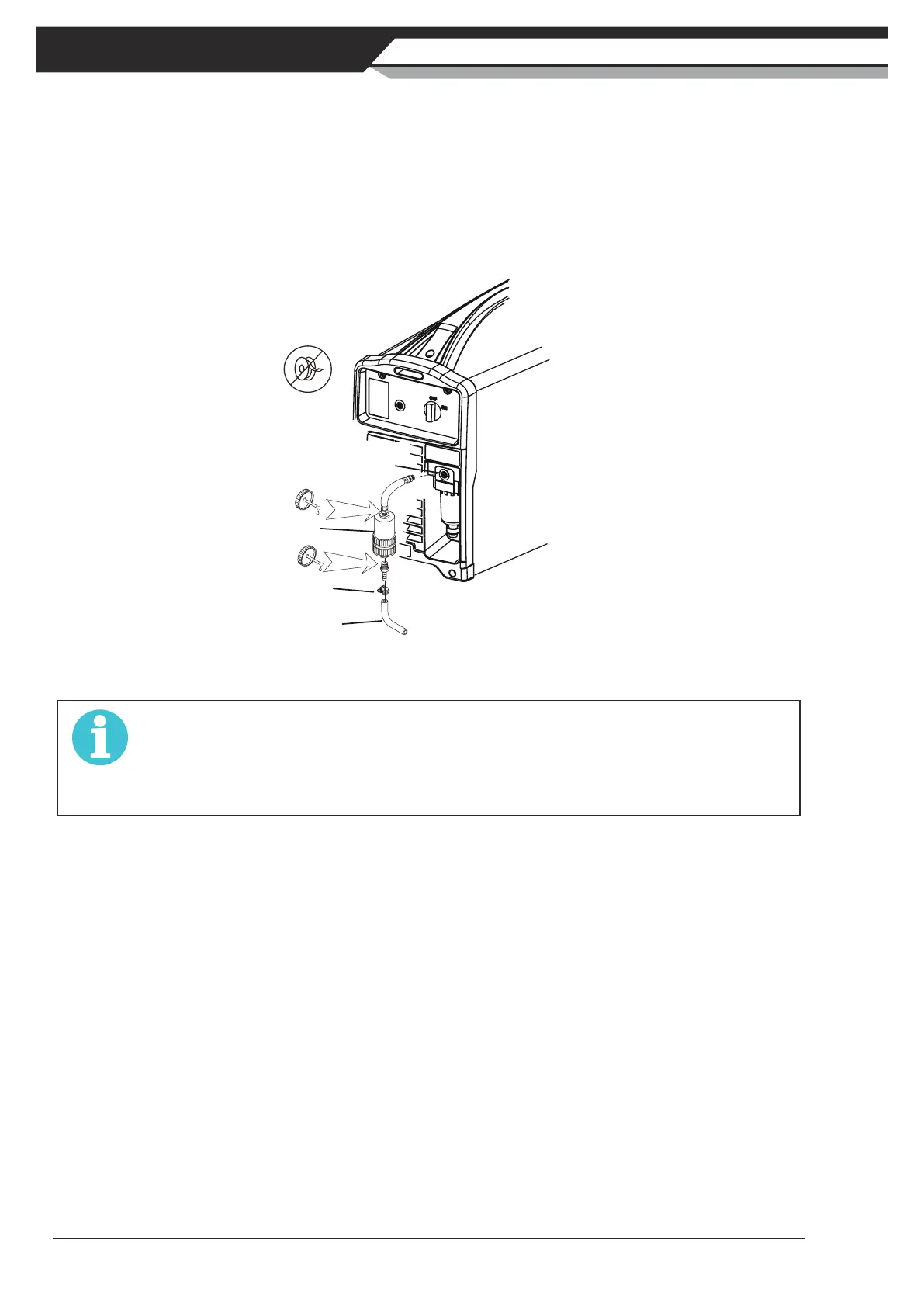

Figure 3-3: Connecting Inline Filter
NOTE!
Pressure should be set at 6.0 kPa at the high pressure gas cylinder regulator.
Supply hose must be at least 6 mm I.D..
For a secure seal, apply thread sealant to the tting threads, according to manufacturer's instructions. Do Not use Teon
tape as a thread sealer, as small particles of the tape may break o and block the small gas passages in the torch.
