Advanced measurements

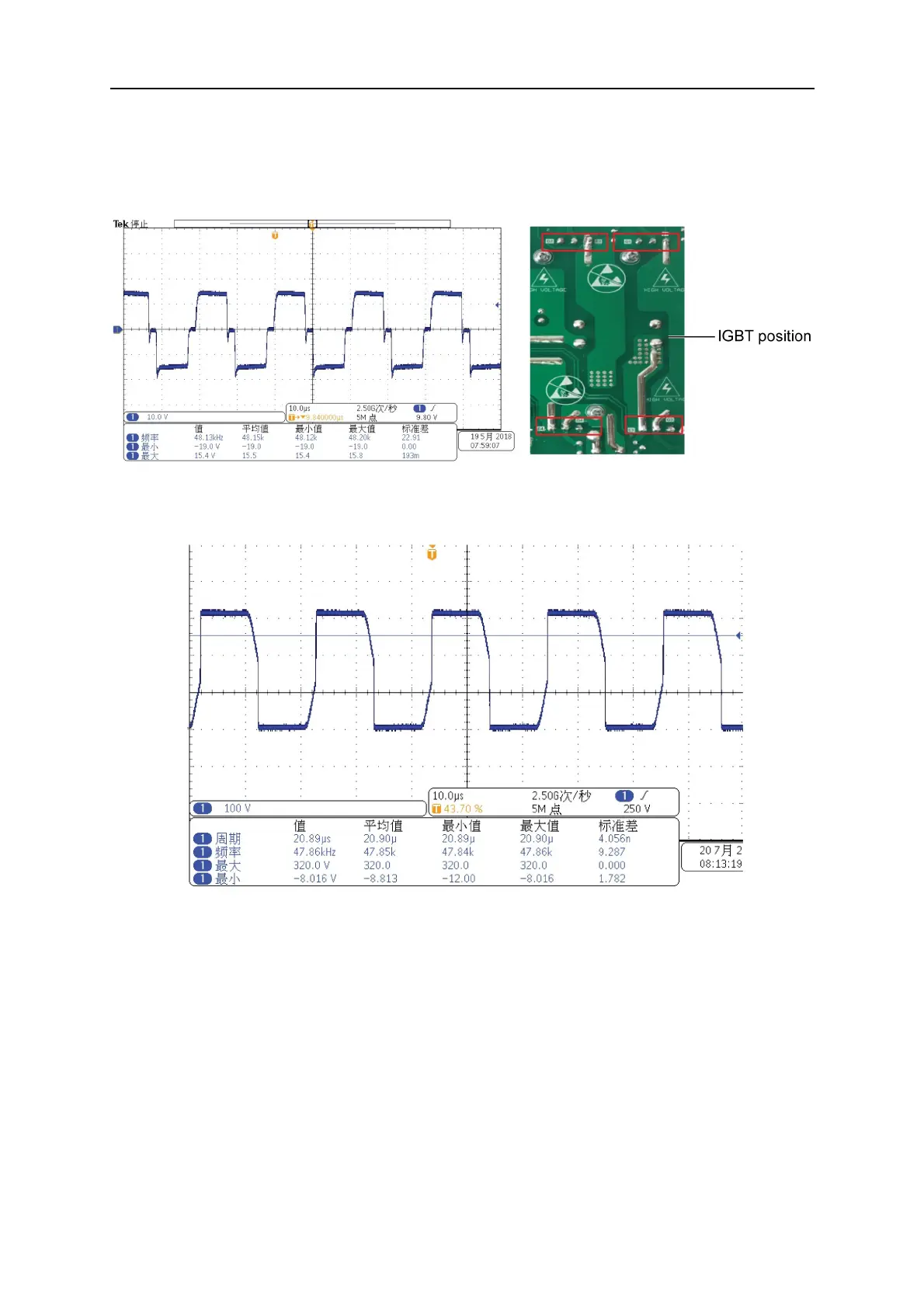

IGBT (Q1-Q4) GE drive waveform test
The drive frequency is 48±3kHz.
Drive frequency is 48 kHz, the amplitude is about 15V.
Main transformer secondary waveform test
The no-load voltage is normal.
