ESAB Rustler EM 280C PRO - Inlet Wire Guides; Middle Wire Guide; Outlet Wire Guide

5  OPERATION
0463 930 001
- 18 -
© ESAB AB 2023

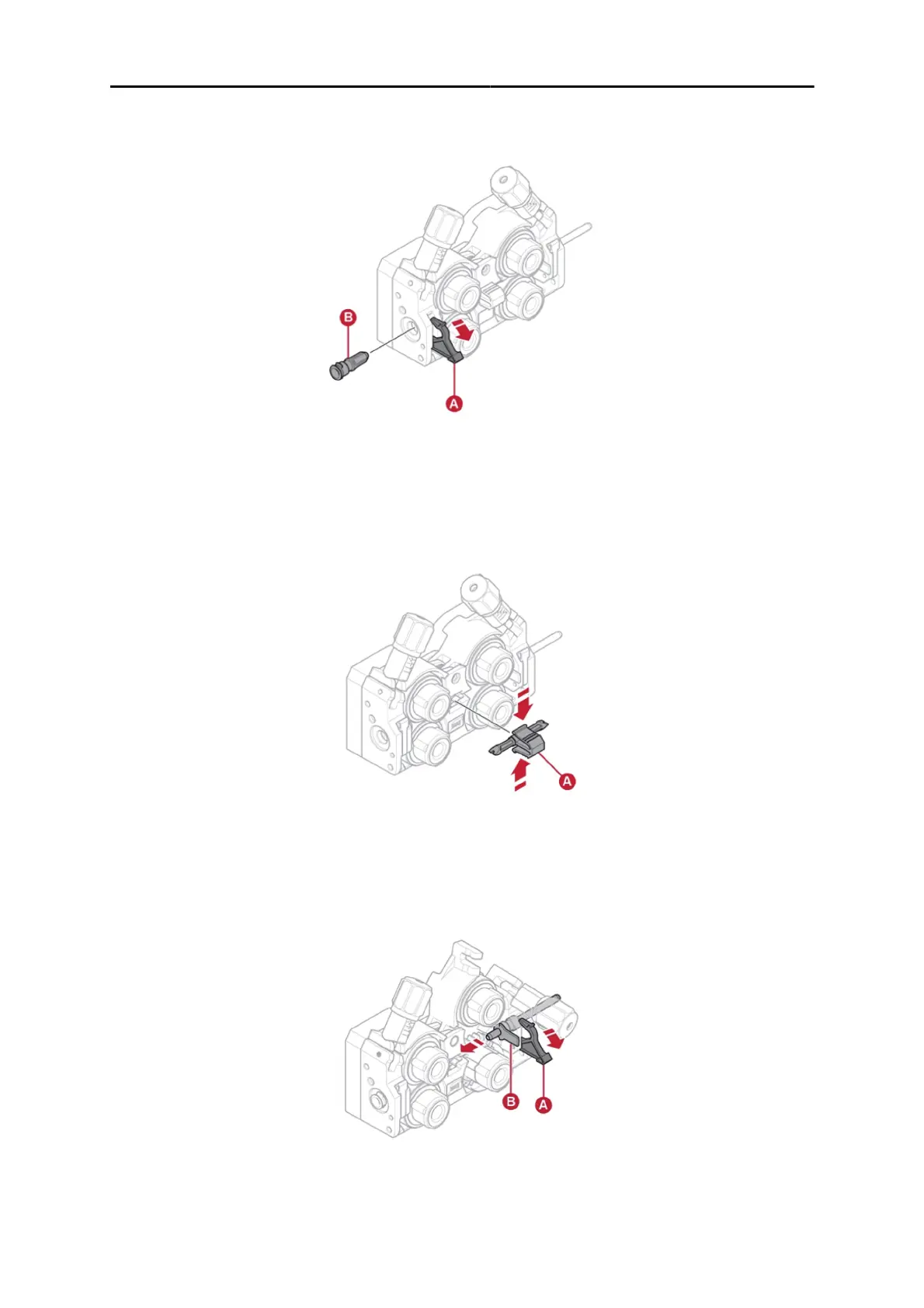

5.9.1 Inlet wire guides
1) Unlock the inlet wire guide quick lock (A) by folding it out.
2) Remove the inlet wire guide (B).
3) Install the correct inlet wire guide (according to the WEAR PARTS appendix).
4) Lock the new inlet wire guide using the wire guide quick lock (A).
5.9.2 Middle wire guide
1) Apply a little pressure on the middle wire guide clip and pull out the middle wire guide (A).
2) Push in the correct type of wire guide (according to the WEAR PARTS appendix). The clip
automatically locks the wire guide when in the correct position.
5.9.3 Outlet wire guide
1) Remove the lower right feed roller (see Section 5.8 "Changing feed rollers", page17).
2) Remove the middle wire guide (see Section 5.9.2 "Middle wire guide", page18).
3) Unlock the outlet wire guide quick lock (A) by folding it out.
4) Remove the outlet wire guide (B).
