6.3 Internal control panel

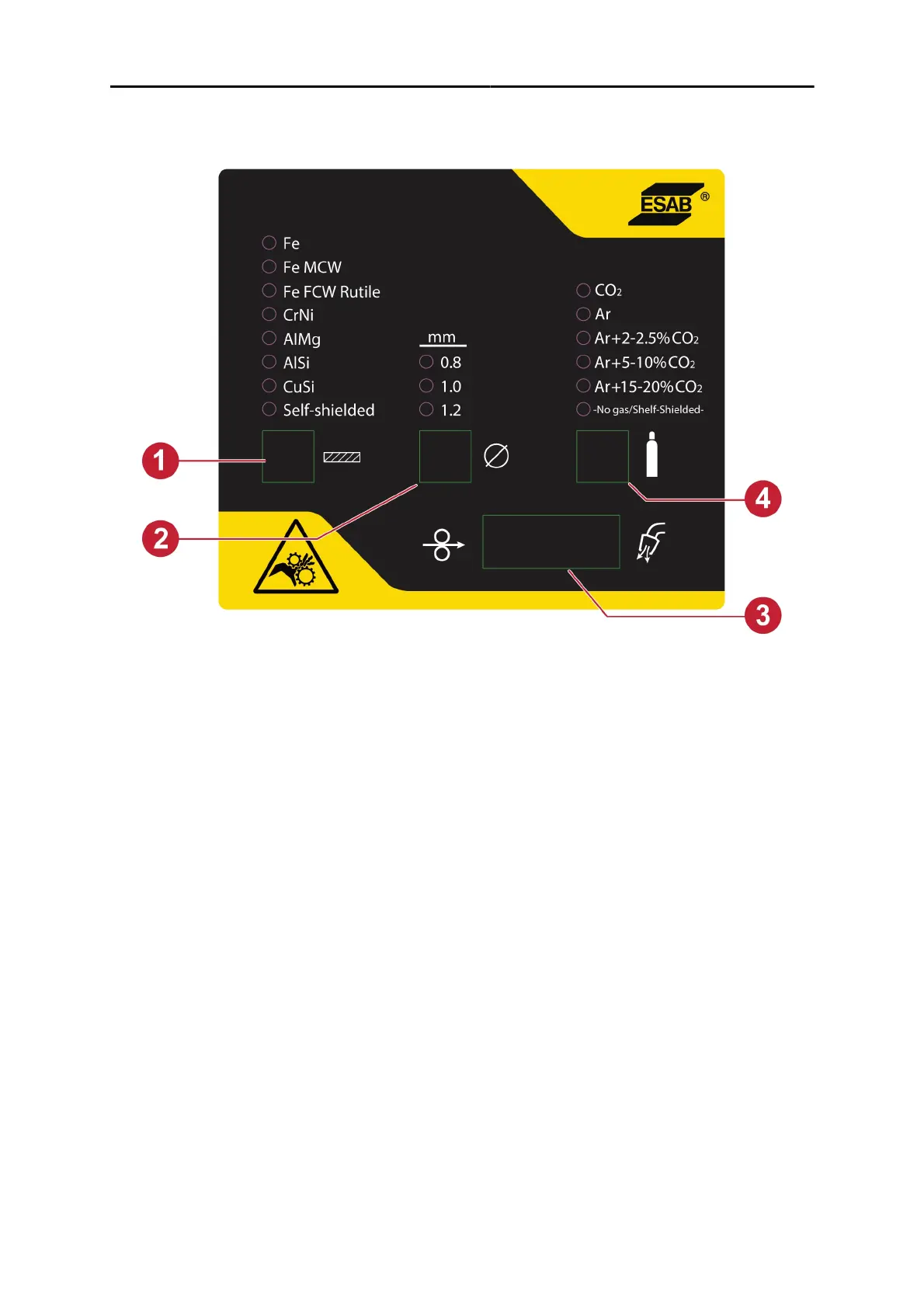

1. Material selection button 3. Wire inch and gas purge button
2. Wire diameter selection button 4. Gas selection button (Synergic variant only)
Material selection button
This is used to select welded base material for optimal characteristics in the internal control panel.
Wire diameter selection button
This is used to select the diameter of the installed wire in the internal control panel.
Wire inching and gas purge button
Wire inching is used to feed wire without welding voltage being applied. The wire is fed as long as
the button is pressed. This function is active in MIG applications only.
Gas purging is used while measuring the gas flow or for flushing any air or moisture from the gas
hoses before welding starts. Gas purging occurs for 15 seconds when the gas purge button or torch
trigger is pressed or until it is pressed again. Gas purge occurs without voltage or wire feed start.
This function is active in MIG applications only.
Gas selection button
This is used to select the proper gas type that is currently connected to the equipment in the internal
control panel.
