20
E5 Operating the Appliance
Important: Test the power switch and spark ignition before the operating pressure is checked or the fascia
is fitted.
The fire is operated by a power switch that is located on the fascia. Testing the power switch and spark
ignition can be done with the gas supply either turned on or o.
With the power supply and power switch connected, lean the fascia beside the fire so that the right
end is up and the tactile control pad is visible. Run through the steps for igniting the pilot, found in
section F6 “Operating the Appliance” on page 25.
E6 Checking the Gas Operating Pressure
Note: Ensure that the jets match the gas type that is being used. See section E4 “Gas Type Conversion” on
page 15 if necessary.
Turn on the gas. Turn the power on. Check the inlet pressure upstream of the appliance.
NOTE: The regulator that is supplied with the fire MUST NOT BE REMOVED. Removal of the regulator,
or replacing it with one not intended for use with an Escea fire, will void the limited appliance warranty and
may be dangerous.

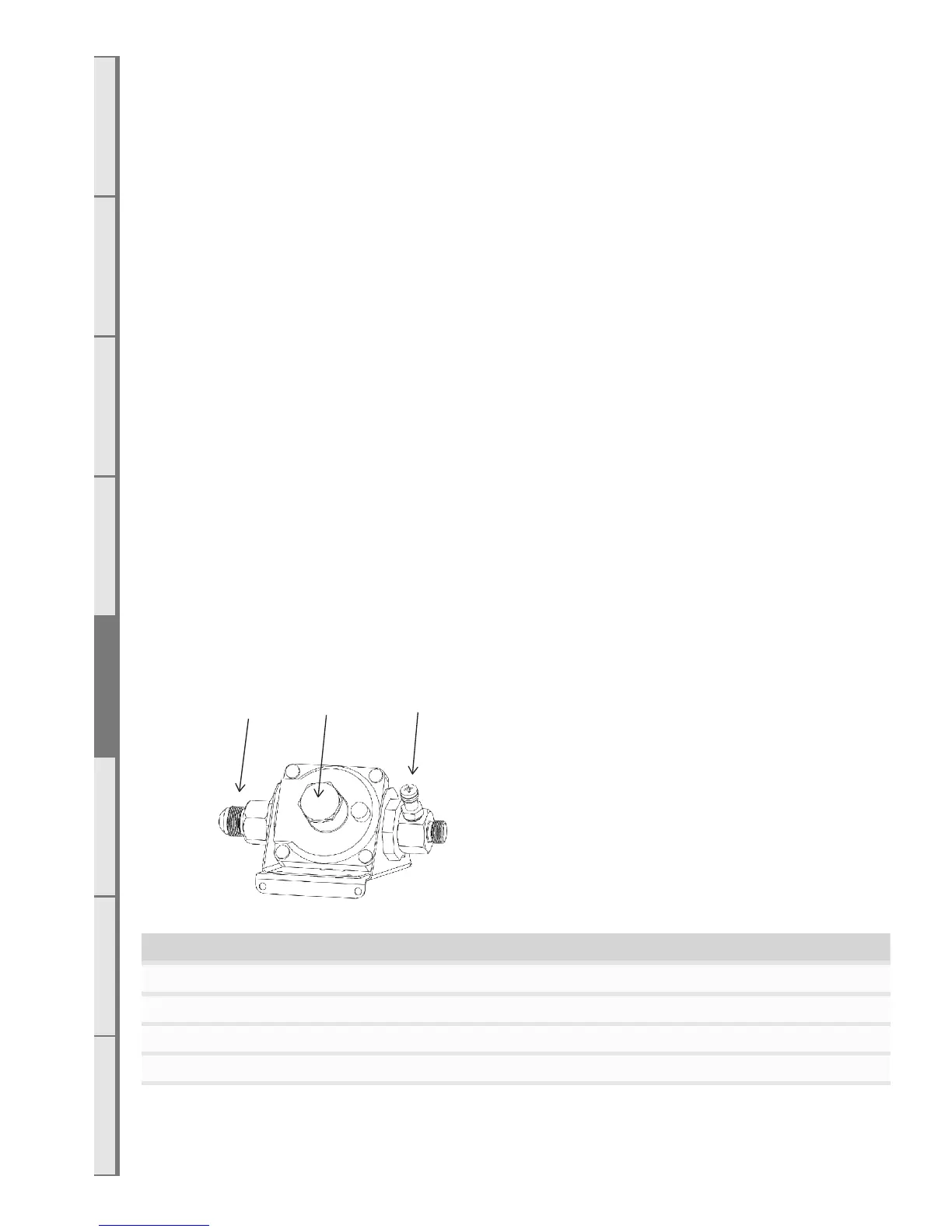

Test the operating pressure using test point C on the regulator shown below. The regulator is located at
the lower front of the appliance. This must be done before the fascia has been fitted.
The operating pressure has been factory set. Please check that the operating pressure is exactly as
listed below and, if not, adjust the screw in the centre of the regulator (point B) until the pressure is
correct. If unable to do this, reassess the inlet gas pressure/pipes.
A B C
Gas Pressure Table Gas Type
ULPG Propane Natural Gas
Minimum Inlet Pressure - Pre-Regulator 2.5 kPa 2.5 kPa 1.0 kPa
Maximum Inlet Pressure - Pre-Regulator 5.0 kPa 5.0 kPa 5.0 kPa
Operating pressure - Post-Regulator (Point C) 2.2 kPa 2.0 kPa 1.0 kPa
A - Inlet Gas Connection
B - Pressure Adjustment Screw
C - Operating Pressure Test Point
