E4 Gas Type Conversion
THIS APPLIANCE IS CONFIGURED TO OPERATE ON NATURAL GAS (NG). If gas type
conversion is not required then skip to the next section.
Your gas fire has been supplied with the necessary parts for gas conversion. Follow the steps on the
following pages to change from NG to ULPG/Propane or vice versa.
WARNING: The regulator that is supplied with the fire MUST NOT BE REMOVED.
Removal of the regulator, or replacing it with one not intended for use with this Escea fire, will void
the limited appliance warranty.
Turn o power and gas first.

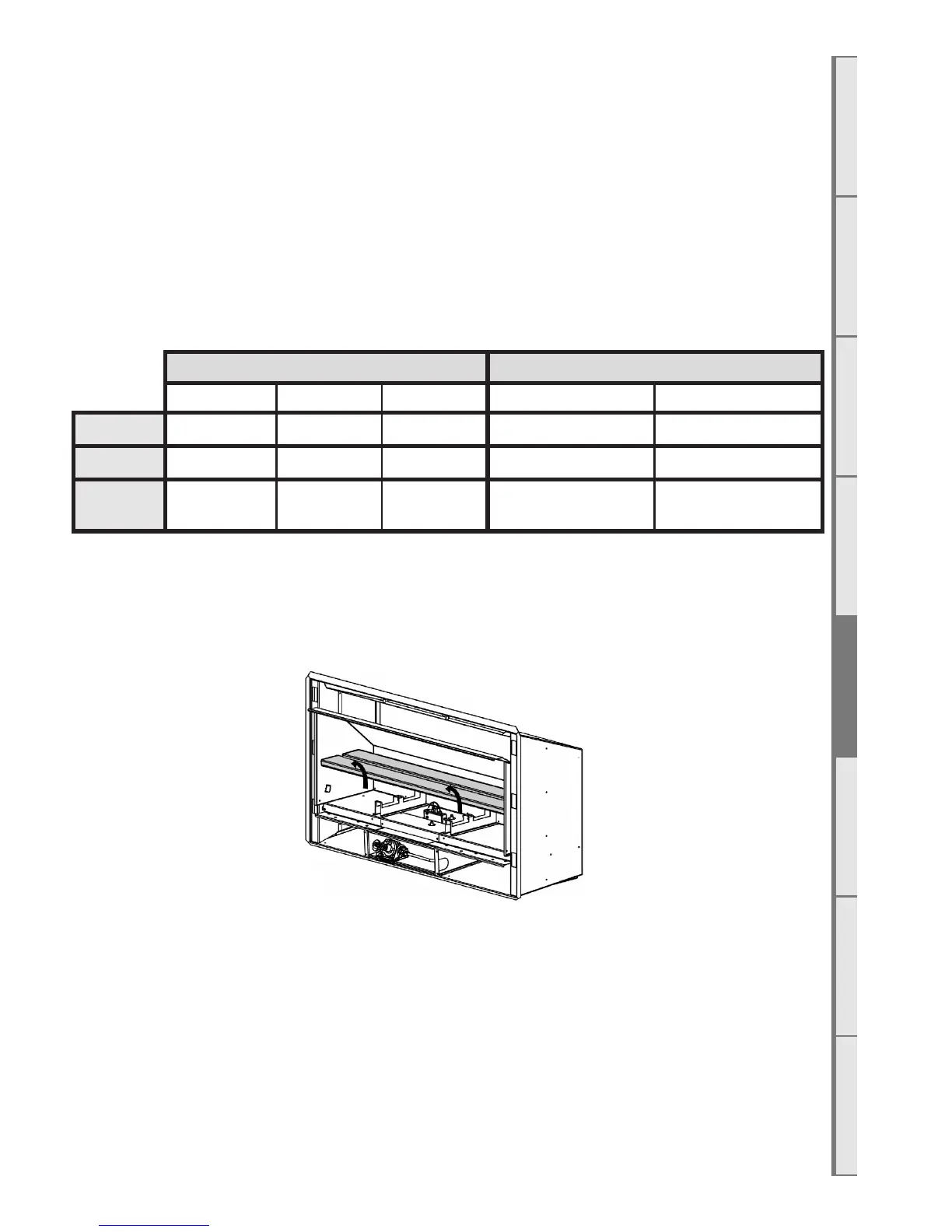

Jets Burner Collars
Front Burner Rear Burner Pilot Front Burner Rear Burner
Propane
Ø 1.3mm Ø 1.3mm Ø 0.30mm Ø11mm Hole x 2 Ø11mm Hole x 2
ULPG
Ø 1.25mm Ø 1.25mm Ø 0.30mm Ø11mm Hole x 2 Ø11mm Hole x 2
Natural
Gas
Ø 4.0mm Ø 4.0mm Ø 0.45mm
Ø5mm Hole x 2 -
Collar must be fitted
Ø5mm Hole x 2 -
Collar must be fitted
The fascia, fuelbed, and stone cartridge should all be removed prior to doing the gas conversion.
Step 1: Remove the two screws holding the burner clamps in place. Remove the clamps. Lift out both
burners to gain access to the burner jets.
Step 2: Change the two jets with the conversion jets supplied in the kitset. Refer to the table at the
start of this section to confirm jet sizes for each gas type.
