Burner Jets

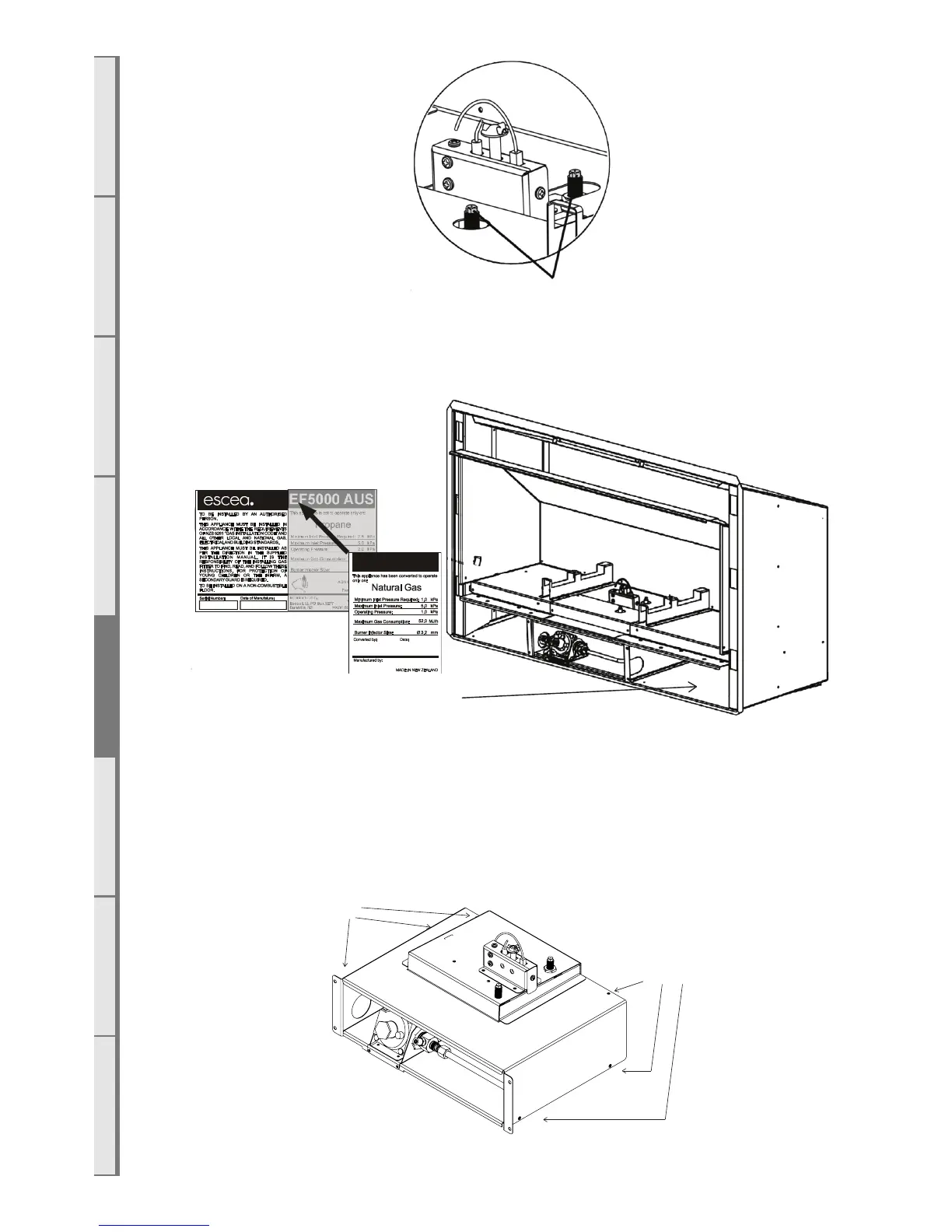

Cover the existing gas type label with the new gas type label supplied in the kitset. Ensure that the
serial number and the date of manufacture are still visible. Write your name, company (if appropriate),
and date of conversion on the new label with permanent marker.
Burner Jets
Data Label Position
EF5000 AUS
Escea Ltd, PO Box 5277
Dunedin, NZ
www.escea.net
Part No. 620161_2
AGA Cert. No. 7427
AGA Cert. No. 7427
Escea Ltd, PO Box 5277
Dunedin, NZ
www.escea.net
Part No. 620164_2
EF5000 AUS
Step 3: Remove the four screws from the black infill panel and remove the panel. Undo the flexible
gas tube that is connected to the engine. Remove all screws that are holding the engine in place and
remove the engine from the fire.
Step 4: Remove the 6 screws from the engine cover (2 on each side, 2 on the top back) and slide the
cover o. Also remove the 1 screw from the back panel and remove the back panel.
Remove 3 x
screws
Remove 3 x
screws
