Finishing the Installation
F1 Assembly of the Stone Cartridge

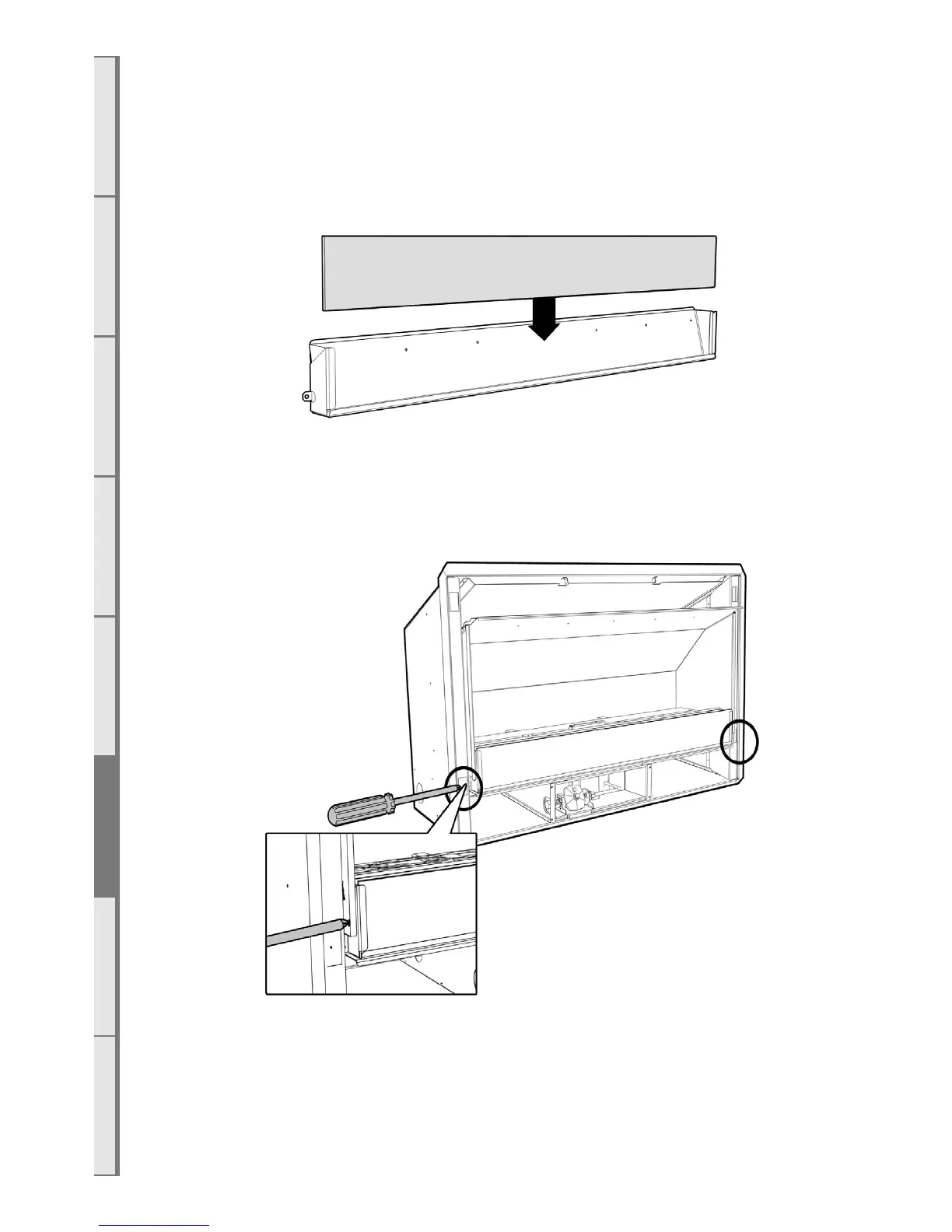

The glass which fits inside the stone cartridge has been packaged to protect it during transit; it can be
found inside the firebox. Insert the glass strip into the stone cartridge between the two metal flanges
and push it all the way to the bottom (as shown below).
With the glass in position, fix the stone cartridge to the fire by using the two supplied screws (circled
in the diagram below). This must be done before the fascia is fitted. A bag of pebbles (river stones) are
also supplied. Use these to fill the stone cartridge.
F2 Fitting the Fascia
Before fitting the fascia, the hooks must be attached using the screws supplied. Ensure the wires
connecting the fascia to the fire are securely connected, as per section E3 “Connecting the Power
Supply and Power Switch” on page 14.
