eschmann SES2000 VAC LS3 - Fig.2.2 Autoclave: General Arrangement

To Next Page

To Previous Page

SES 2000 Vac (LS3) AUTOCLAVE Part 2

ST-SM45g Page 13 of 53

PART 2 DESCRIPTION

1 Process display window 10 Seal retaining rim 19 Front panel

2 Control panel 11 Aerotight nut 20 Chassis

3 Door latching handle 12 Door safety catch 21 Printer

4 Pressure door 13 Pressure chamber assembly 22 Foot

5 Door latch 14 Work tray 23 Door beam

6 Pressure safety indicator 15 Reservoir lid 24 Door knob

7 Door cover 16 Reservoir 25 PCB cooling conduit

8 Seal retaining disc 17 Cover screw 26 Link

9 Door seal 18 Unit cover

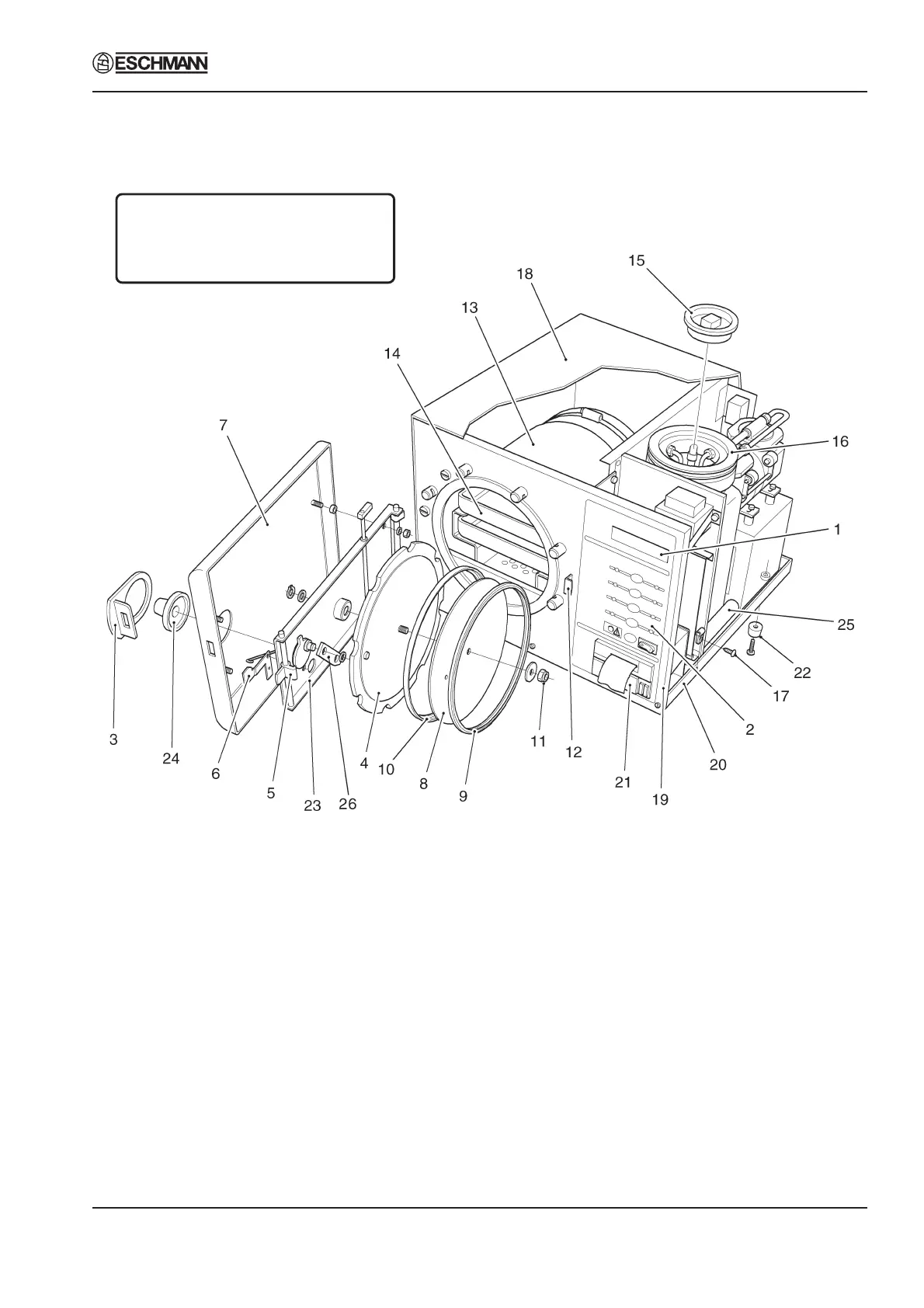

Fig. 2.2 Autoclave: General Arrangement

Note: Some autoclaves will have a

different pump to that shown. See

maintenance section and parts list for

pump replacement details.
