eschmann SES2000 VAC LS3 - APPENDIX C; NEW FITTINGS FOR EMC BOARD JANUARY 2005

SES 2000 Vac (LS3) AUTOCLAVE Appendix C
ST-SM45g Page 53 of 53
APPENDIX C
New fittings for EMC board January 2005
The fitting of the choke which is part of the EMC board has been changed. Without using the mounting plate
and parts shown below, chokes with the new fitting cannot be used in units that have the old chassis
(i.e. a chassis without the two new hank bushes that align with the two fixing holes on the base of the choke).

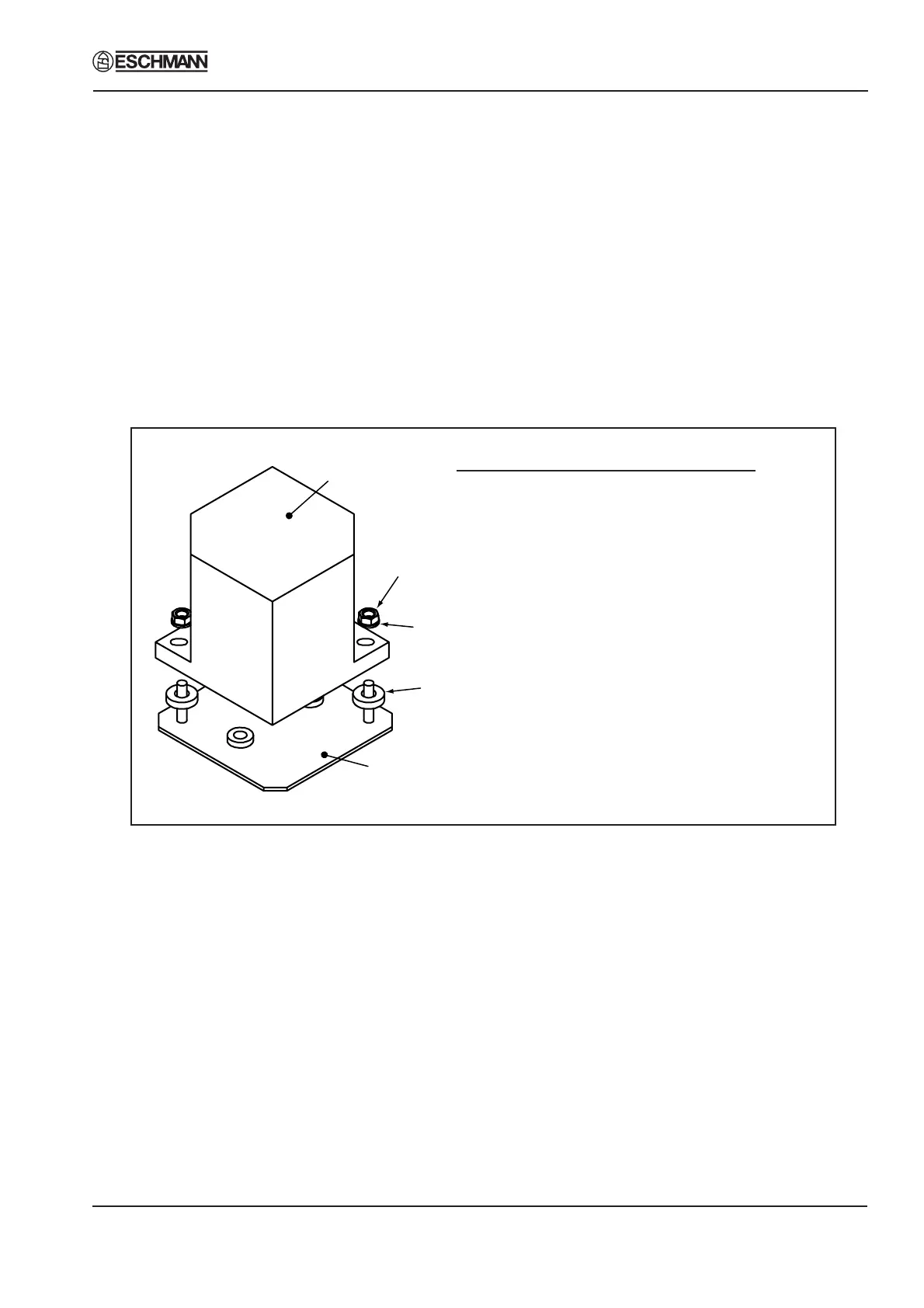

The drawing and information shown below detail all the parts required and the fitting instructions to enable
the new choke to be fitted to an old chassis.
If the unit has a chassis with the new hank nuts the choke is fitted to the chassis with:
2 - M3 x 6mm Pan head screw (part number 391086)
2 - M3 shakeproof washers (part number 307159)
Note: The items 1, 3, 4 and 5 below are not required.
3
2
1
4
5
Item Part No. Description Qty.
1 112701 Mounting plate 1
2 n.a. Choke (part of EMC
board 424156) 1
3 380044 Spacer 2
4 709860 M3 washer 2
5 710390 M3 nut (Nyloc) 2
n.a.=not applicable
Assembly notes:
If fitted remove the double sided tape
from the base of the choke (item 2).
Fix mounting plate to chassis with:
2 x M4 x 6mm Pan head screws (Part No. 307152)
and 2 x M4 washers (Part No. 710731).
Fit choke onto mounting plate with spacers, nuts
and washers as shown in illustration.
