SES 2000 Vac (LS3) AUTOCLAVE Part 2

ST-SM45g Page 15 of 53

PART 2 DESCRIPTION

1 Heating element 9 ON/OFF (O/I) switch 17 Transformer

2 Mains fuses 10 Enclosure fan 18 Band heater

3 Mains cable 11 Condenser fan 19 Control board

4 Microswitch 12 Solenoid door lock 20 Printer

5 EMC board 13 Front panel board 21 Manual reset overheat cut-out

6 Choke 14 Solid-state relay board* 22 Pressure test port

7 Pressure transducer 15 Band heater temperature sensor 23 Thermocouple entry port

8 Overheat warning lamp 16 Chamber temperature sensors 24 Band heater overheat cut-out

25 Bulb (for Manual Reset 21)

* see Appendix B

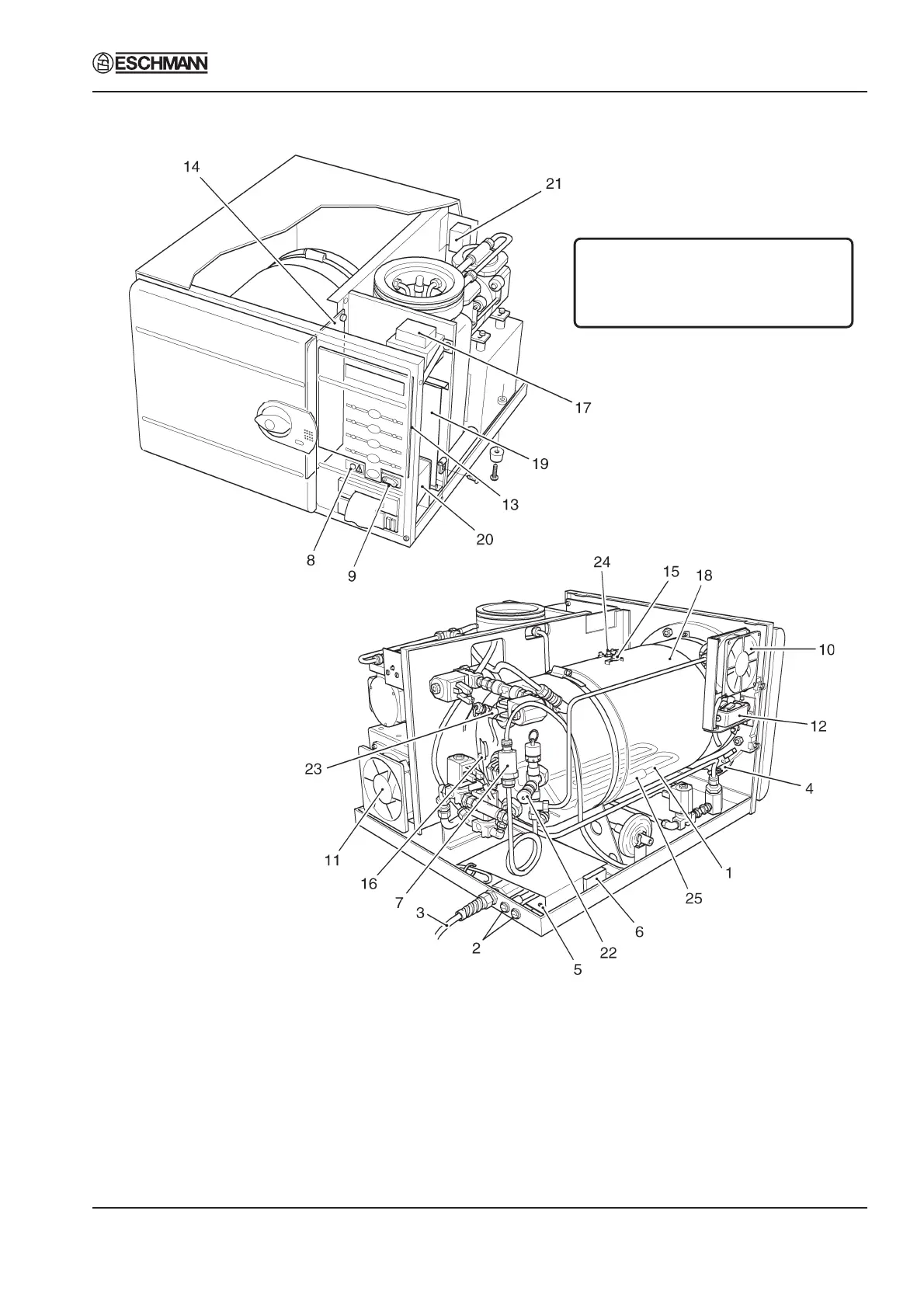

Fig. 2.4 Autoclave: Heater and Process Controls

Note: Some autoclaves will have a

different pump to that shown. See

maintenance section and parts list for

pump replacement details.
