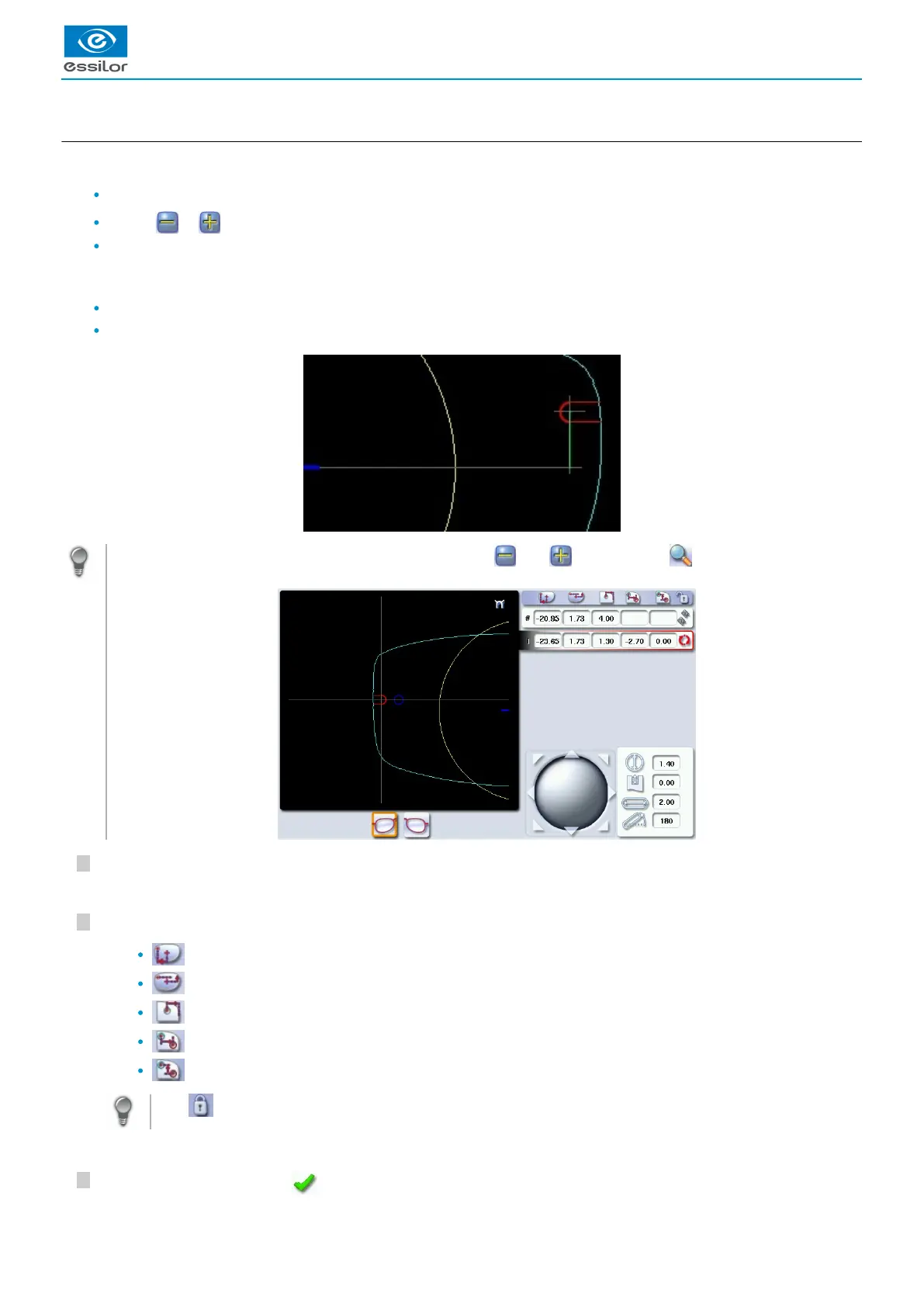

d. Adjusting the position of a drilling point
You have three options for adjusting the position of a drilling point on a shape:
use the virtual mouse,
use the or buttons to decrease or increase the selected value,
enter the exact coordinates of the drilling point directly.
The drilling coordinates are those of its entrance drill-hole.
For a drill-hole, it is the center.
For a slot and a notch, the entrance point is always on the side which is furthest away from the edge of the lens:
For greater precision, when you use the virtual mouse or the and buttons, press to zoom in on the selected
drilling point: the displacement step is 0.01mm (0.1mm for normal display).
Press on the drill-hole, slot or notch to select it.
Press a few seconds on the value corresponding to the coordinates to be modified:
X coordinates
Y coordinates
Distance in relation to the edge of the lens.
X coordinates in relation to the reference drilling point
Y coordinates in relation to the reference drilling point
Lock the distance in relation to the edge of the lens to adjust only the Y position of the drilling point.
Enter the new value and press to confirm.
The drilling point is displayed in red.>
The numeric keypad is displayed.>
