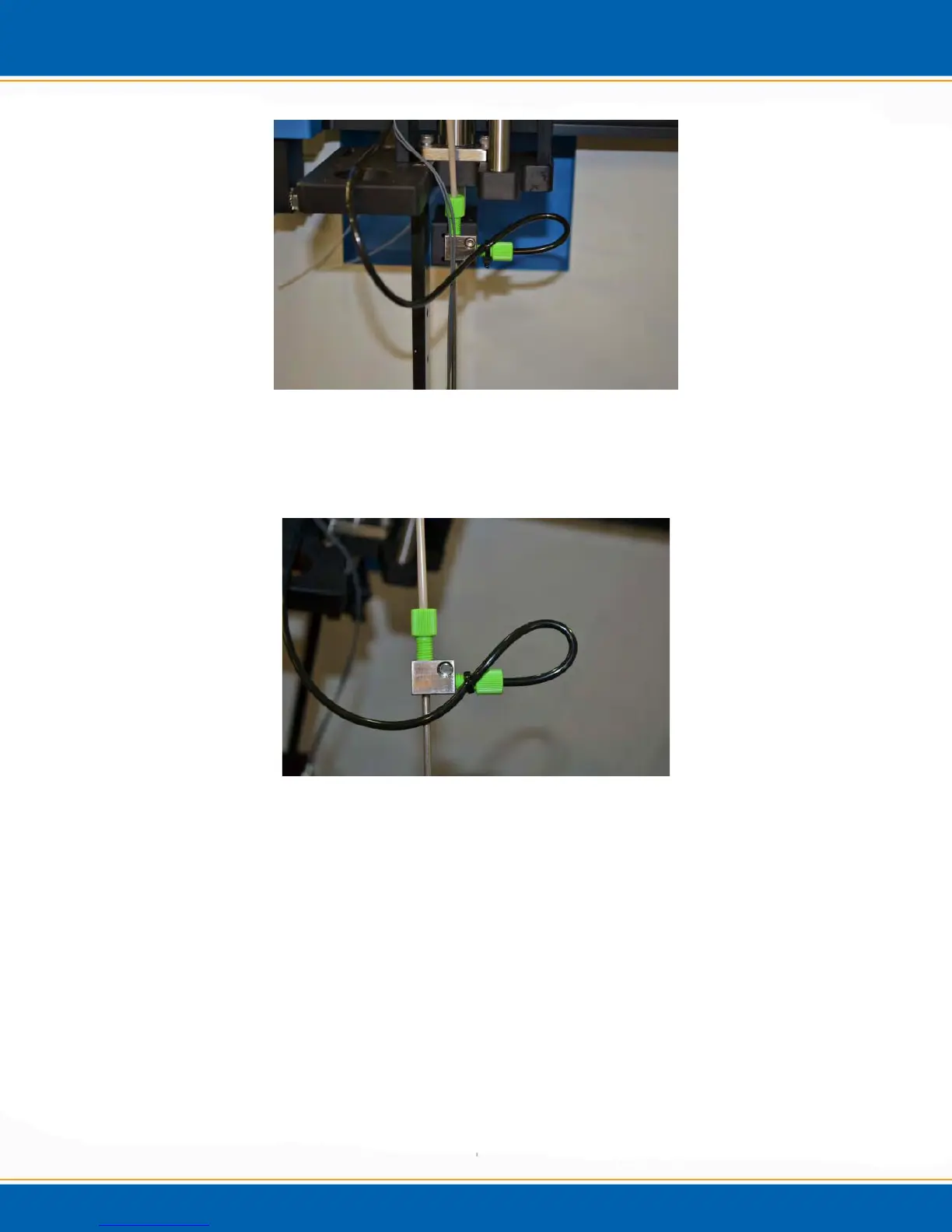

Figure 4aq: Water Needle with Socket Head Screw
2. After the needle is removed from the block, remove both tubing lines by backing out
green nut with Teflon ferrules from the side and top of the needle. See Figure 4ar.
Figure 4ar: Needle with Tubing Lines
3. Install new water needle, reattach tubing lines and reinstall to needle block
