Appendix D--Installation of a Centurion WS to a Tekmar 3100/3000
Concentrator
1. Unpack the Centurion as instructed in Chapter 2 of this manual.
2. Install all the lines and communication cables to the Centurion as Instructed in Chapter 2.
3. Set up the water reservoir as instructed in Chapter 2.
4. Soil and Water Line connections to Tekmar 3000/3100:

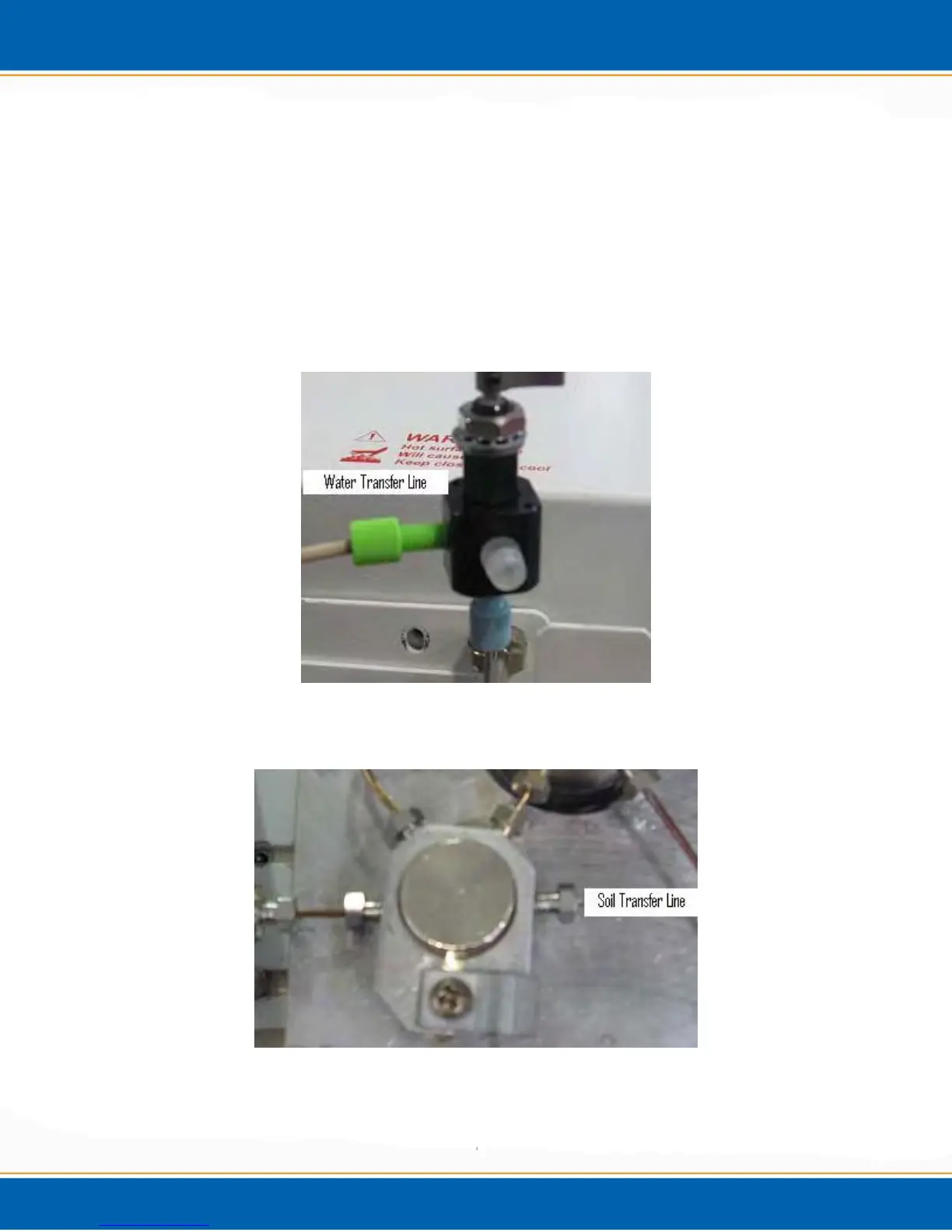

 Connect the water line to the three way valve on the concentrator as shown
here.
 Connect the soil transfer line to the 4 way Tee on the concentrator as
displayed in the figure below.
