12 OneTrack and OneTrack Backbone Planning and Installation Manual
DMX IN
DMX “dead zone” or
second DMX input and
terminator required
DMX TERM
L-coupler
L-coupler L-coupler
L-coupler
T-couplerT-coupler
T-couplerT-coupler
start
DMX
terminator
data
coupler
location
track
Key:
coupler wiring
requires modification
(see note below)

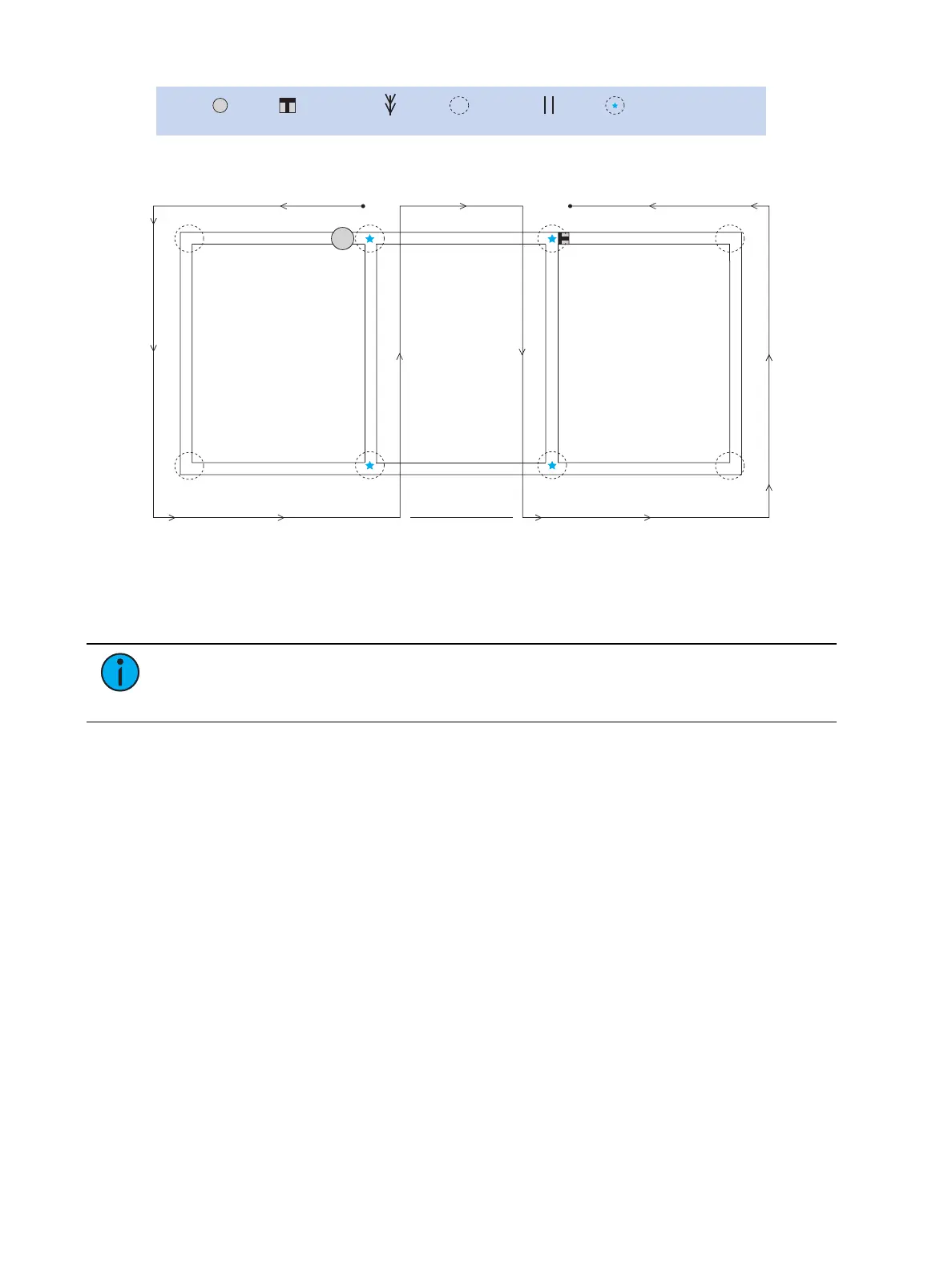

Figure 11: Advanced DMXsystem
Note: You must disconnect some coupler wiring (in couplers indicated with a star in
the example above) for the data line to function as shown. See Reconfiguring DMX
Data Lines on page 22 for more information.
