18 OneTrack and OneTrack Backbone Planning and Installation Manual
• When using L-, T-, X-, I-, or Flex-Couplers (see
OneTrack Accessories on page 33
), use
two-inch pendant clips to provide attachment points as close to the end of each
connecting piece of track as possible.

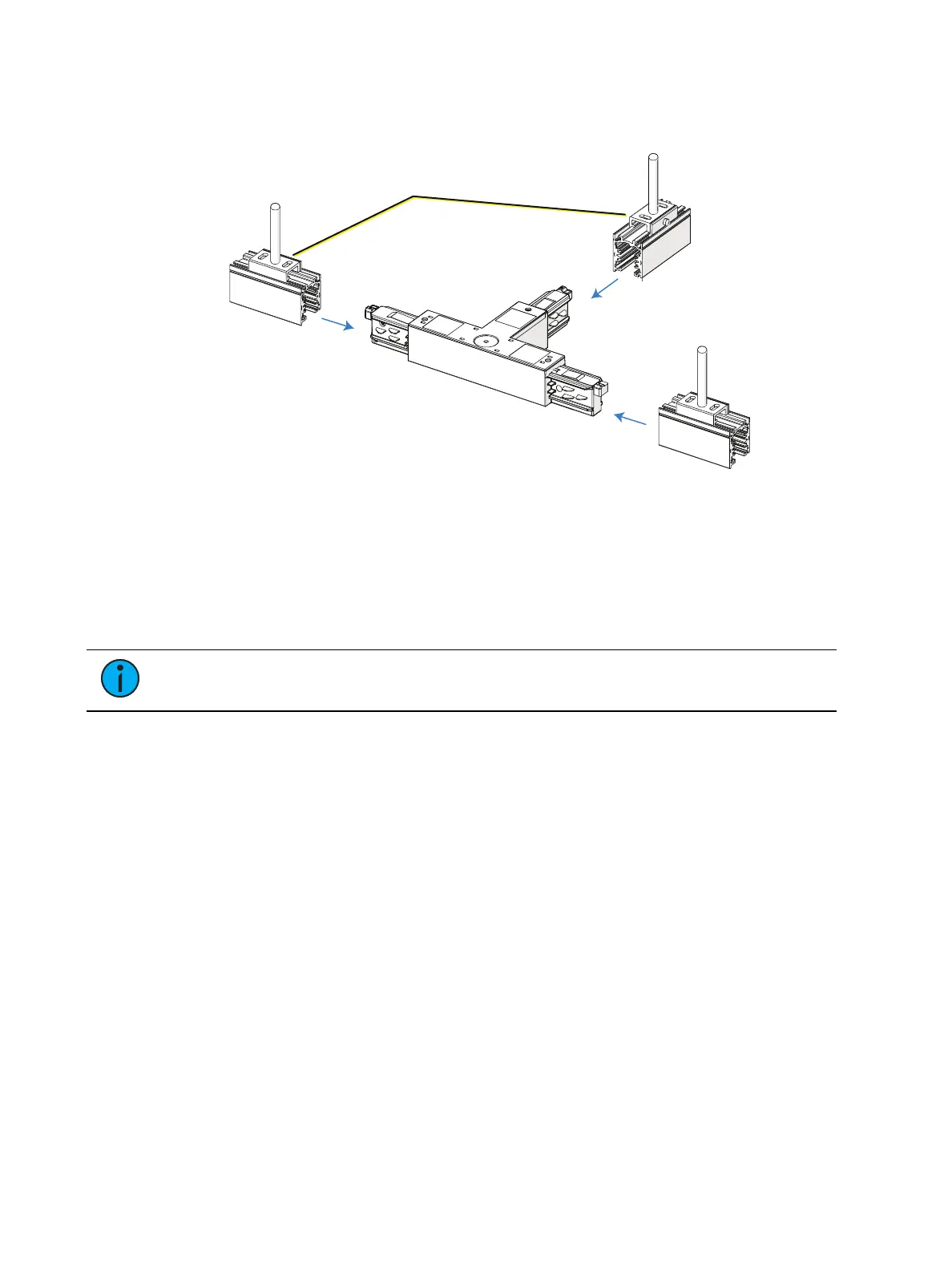

Use pendant clips to
support track at each
connection point
Figure 18: Two-inch pendant clips for coupler support
Properly installed surface-mounted track (OneTrack only) will relieve stress on the connection
joints. When planning your installation, consider track stability as well as suspended physical
load capacity when determining the number of attachment points to the structure.
Be sure to follow the instructions supplied with each component when installing the track
system.
Note:
OneTrack suspended by threaded rod or wire rope will move when mounting
and adjusting fixtures. If this is undesirable, consider surface-mounting instead.
