Euphonix System 5 Installation Guide

Euphonix System 5 Installation Guide Interconnecting System Components
28
Audio Hookup

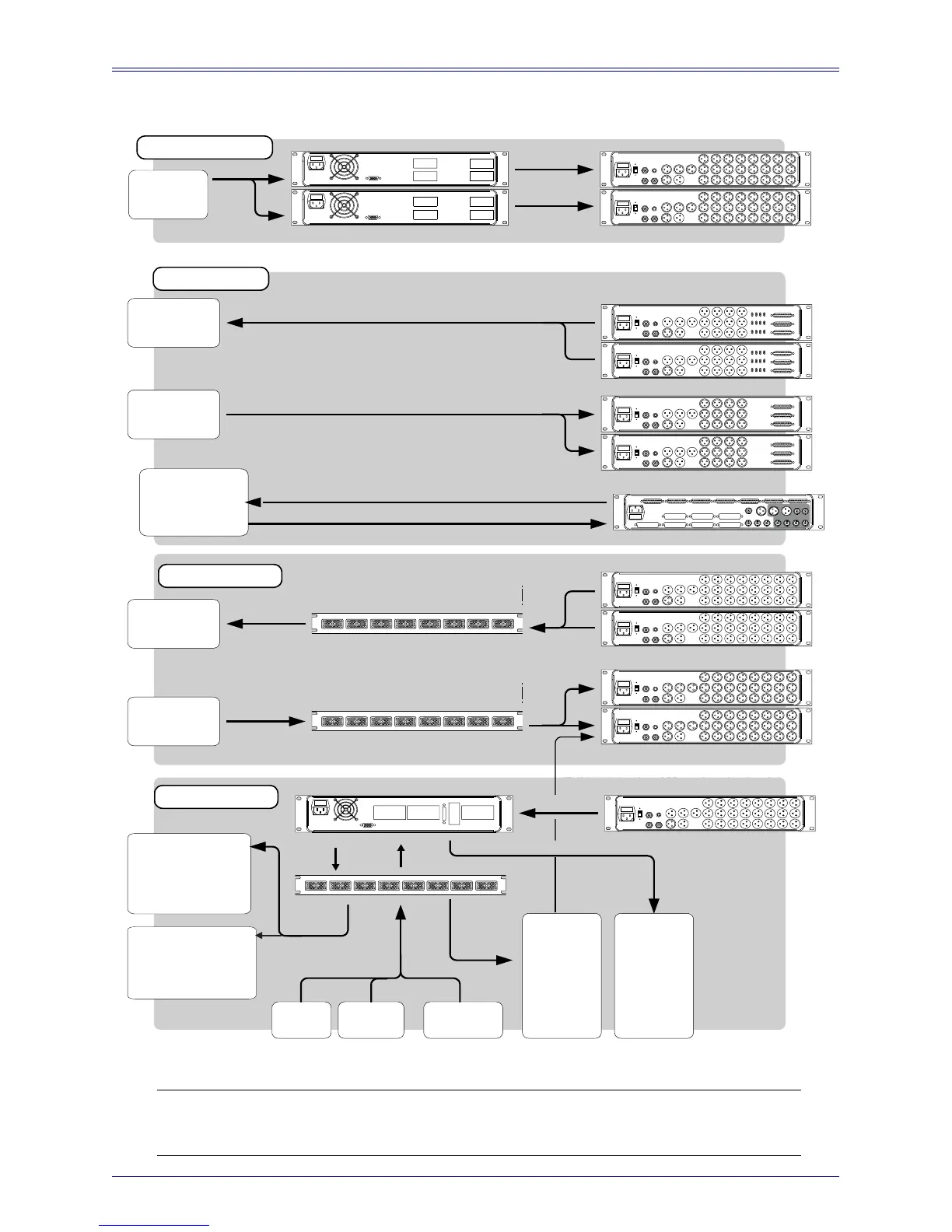

Figure 2-9 Audio Hookup
Devices requiring
format conversion
1-56 In
1-56 Out
Cabling dependant on device type
FC726
FORMAT CONVERTER
AM713
AM713
Analog to MADI
Studio
Mic Lines
1-48
24 Analog
48 Analog
24 Analog
Microphone
Mic Line Interface
ML530
OUTPUTS
INPUTS
1-12
13-24
ML530
OUTPUTS
INPUTS
1-12
13-24
AES/EBU
Device Outputs
1-48
AES/EBU
Device Inputs
1-48
48 channels (24 AES/EBU pairs)
Digital I/O
DM714
DM714
AES/EBU to MADI
MD704
MD704
MADI to AES/EBU
48 channels (24 AES/EBU pairs)
2 Analog
(Talkback feed to AM713 Aux Analog In)
Analog
Device Outputs
1-48
Upper 25-48 Lower 25-48 Upper 1-24 Lower 1-24
Patchbay
48 Analog
48 Analog
Analog
Device Inputs
1-48
Upper 25-48 Lower 25-48 Upper 1-24 Lower 1-24
Patchbay
48 Analog
48 Analog
Analog I/O
AM713
AM713
Analog to MADI
MA703
MA703
MADI to Analog
MA703
MADI to Analog
Control Room
Main Monitors (7.1)
Alt 1 Monitors (5.1)
Alt 2 Monitors (stereo)
Studio
Mon A - SLS (7.1)
Mon B - Cue 1 (stereo)
Mon C - Cue 2 (stereo)
Mon D - Cue 3 (stereo)
Console
Talkback
Producers
Talkback
24 Analog
(MC524 In 2)
6 Analog
(MC524 In 1)
38 Analog
Outs 1 &2)
(MC524
30 Analog
6 Analog
Studio
Listen
Mics (4)
Talkback
Mic Preamp
Outs (2)
Listen Mic
Preamp
Outs (4)
Solo Bus
Out (stereo)
8 Analog
Upper 25-48 Lower 25-48 Upper 1-24 Lower 1-24
Patchbay (optional)
Talkback
Mic Preamp
Outs (2)
Listen Mic
Preamp
Outs (4)
Solo Bus
Out (stereo)
8 Analog (MC524 Out 3)
MC524
OUT 1
OUT 3
IN 1
IN 2
OUT 2
Monitor Interface
Monitoring
NOTE
: MA703, MD704, AM713, and DM714 converters have extra pairs of auxilliary
AES/EBU and analog channels available. See page 51.
(auxilliary channels not available in Patchnet)
