Euphonix System 5 Installation Guide

Euphonix System 5 Installation Guide System 5 Components
38
Sync Card
AES Sync In (BNC): The DF66 SuperCore clocks to the signal at this port when the
sync source is set to AES Sync. Connect this port to a digital sync reference.
AES Sync In (3-pin Lemo Female): The DF66 SuperCore clocks to the signal at this
Word In (BNC): The DF66 clocks to the signal at this port when the sync source is set to
Word Clock. Connect this port to a digital sync reference.
Word Out (BNC): This signal is active regardless of selected sync source.
Bridge Card
SP662 DSP Line Card
port when the sync source is set to AES Sync. Connect this port to a digital sync reference.
Bridge Cards are used to connect (or bridge) multiple SP662 DSP Line Cards in a DF66.
They mount on top of the SP662 cards. The Bridge Card shown in Figure 3.2 is a 6x6 (for
bridging six SP662 cards). Other types of Bridge Cards are 2x2, 3x3, 4x4, and 5x5.
MADI In (4) and MADI Out (4) digital audio ins and outs on a Combination D (Combo
D) Subminiature connector. A MADI I/O DSP Line Card Cable connects to this Combo
D connector and transports the MADI I/O to eight BNC connectors. See the MADI
Hookup diagram (figure 2-9) and the MADI I/O DSP Line Card Cable diagram (figure
3-3) for details on these connections.

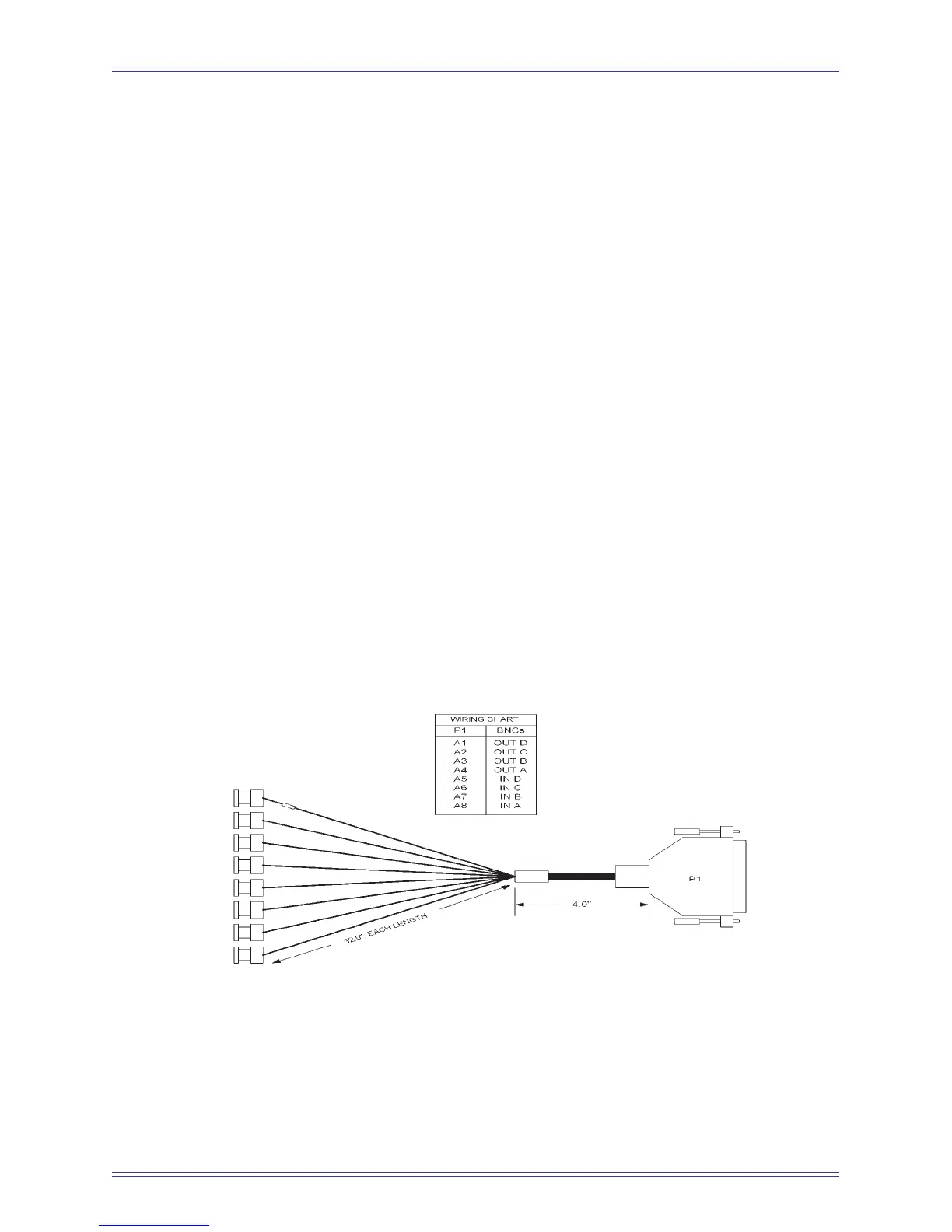

Figure 3-3 MADI I/O DSP Line Card Cable
