85

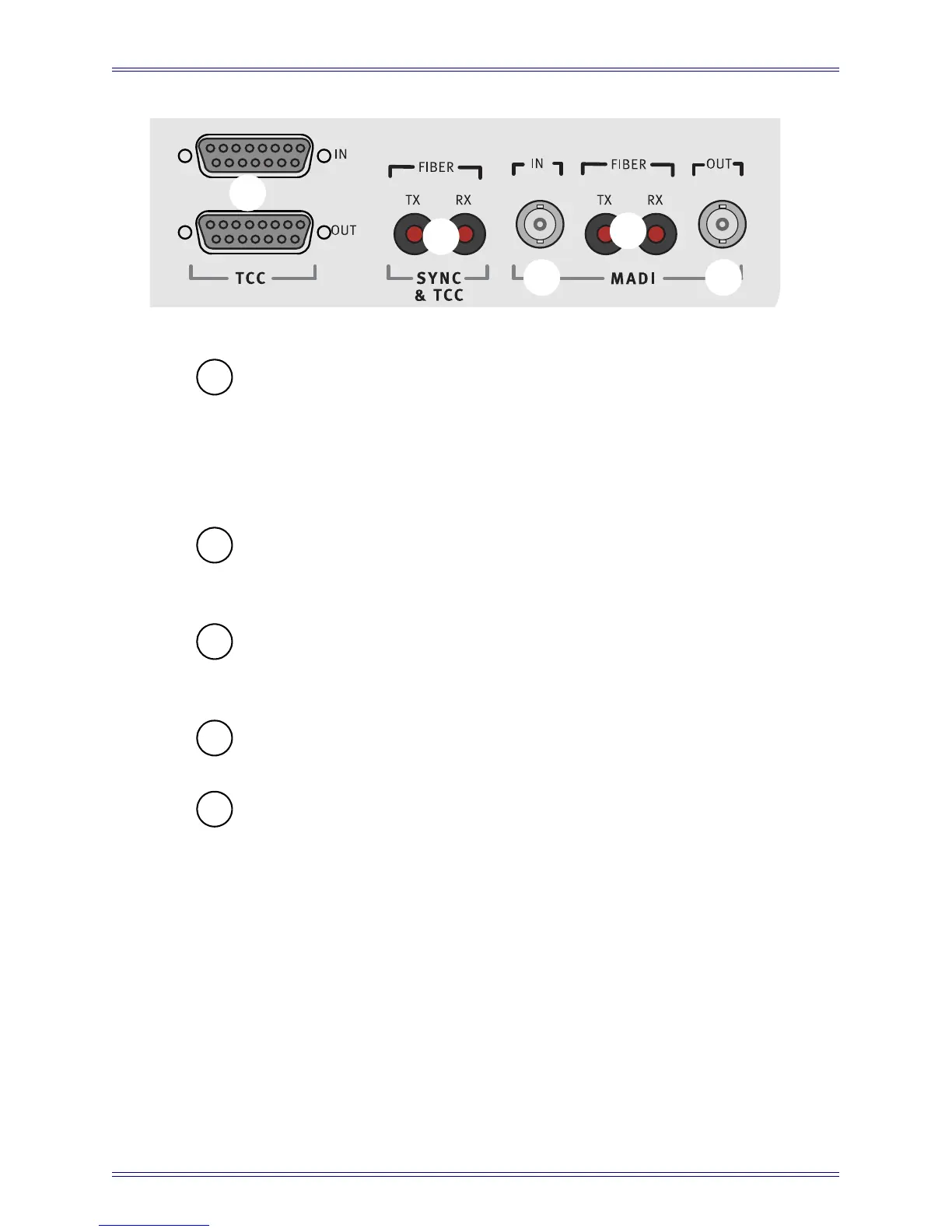

Figure 3-44 Rear Panel TCC, MADI, and Fiber Connectors
TCC IN/Out (DB15): Connect TCC IN to TCC control port at local unit.
Connect TCC OUT to TCC control port at remote unit.
Because the same unit is used at both ends, each has a TCC IN and a TCC OUT
connector. However, only the TCC IN is intended to be used at the local end and the
TCC OUT at the remote end.
FIBER SYNC/TCC TX/RX (ST Optical Connector): Connects local and re-
mote units. Connect local RX and TX to remote TX and RX, respectively.
Both connections are required for proper operation.
FIBER MADI TX/RX (ST Optical Connector): Connects local and remote
units. Connect local RX and TX to remote TX and RX, respectively. A single
connection can be used if MADI signals are only required for one direction.
MADI IN (BNC): MADI connection for signal being transmitted over fiber.
MADI OUT (BNC): MADI connection for signal being received from fiber.
1
3
54
2
1
2
3
4
5
System 5 Components x System 5 Installation GuideinohpuE
