Euphonix System 5 Installation Guide
36
Chapter 3: System 5 Components
This chapter discusses the System 5 components and all connectors necessary for operation.
Pinouts for user-wired connections are shown for each component, along with the cables
and connectors provided by Euphonix.
DF66 SuperCore
The DF66 contains three types of cards: SP662 DSP Line Card, Bridge Card (there are five
and Sync Card (all cards shown in Figure 3-2).
Power Connectors (IEC): Accepts standard IEC power cords (provided). Two autoranging
switching supplies accept voltages between 100–240 VAC, 50–60 Hz.

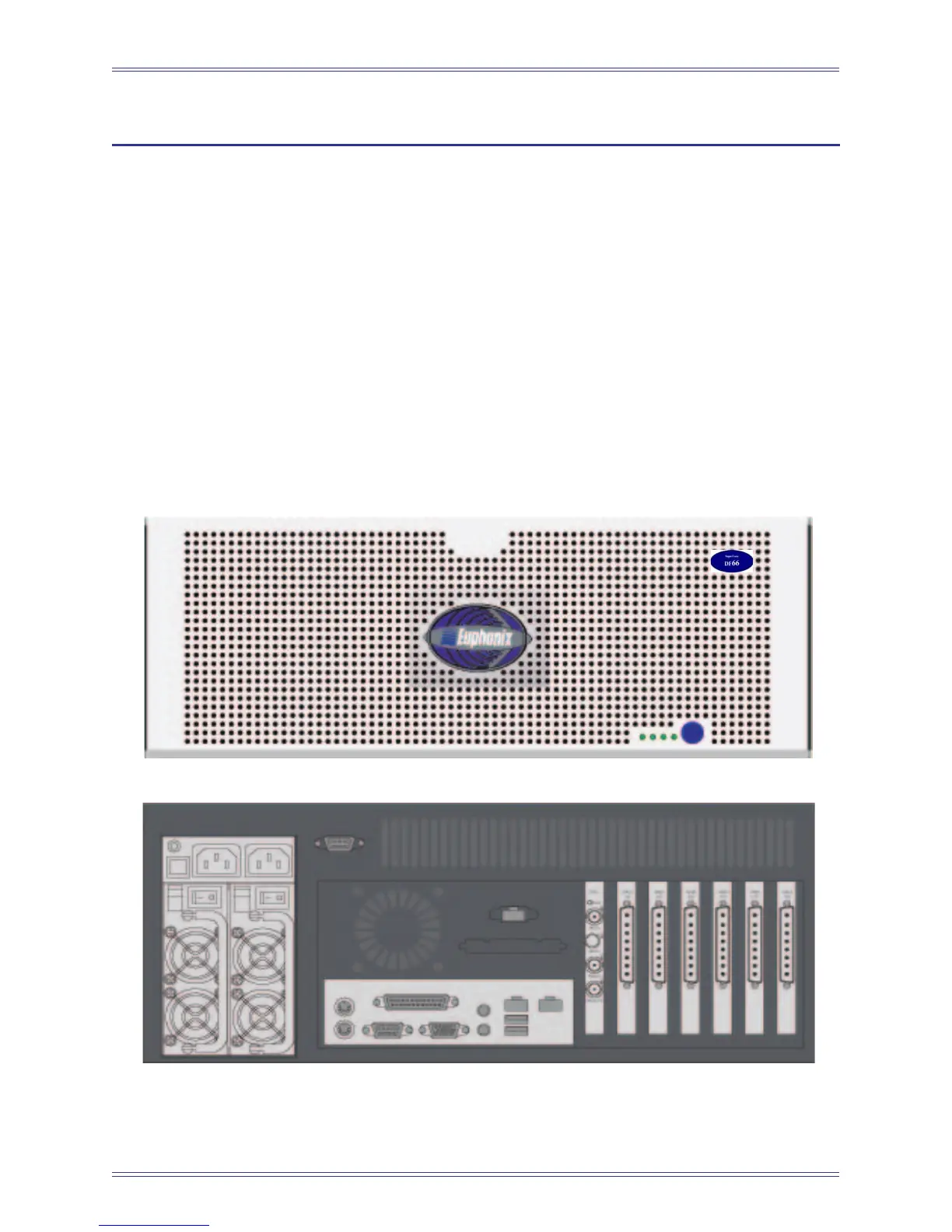

Figure 3-1 DF66 SuperCore Front and Rear Views
types of Bridge Cards)
System 5 Components
Please see the DF66 Super Core Service Manual for an overview of its components.
