Euphonix System 5 Installation Guide

84

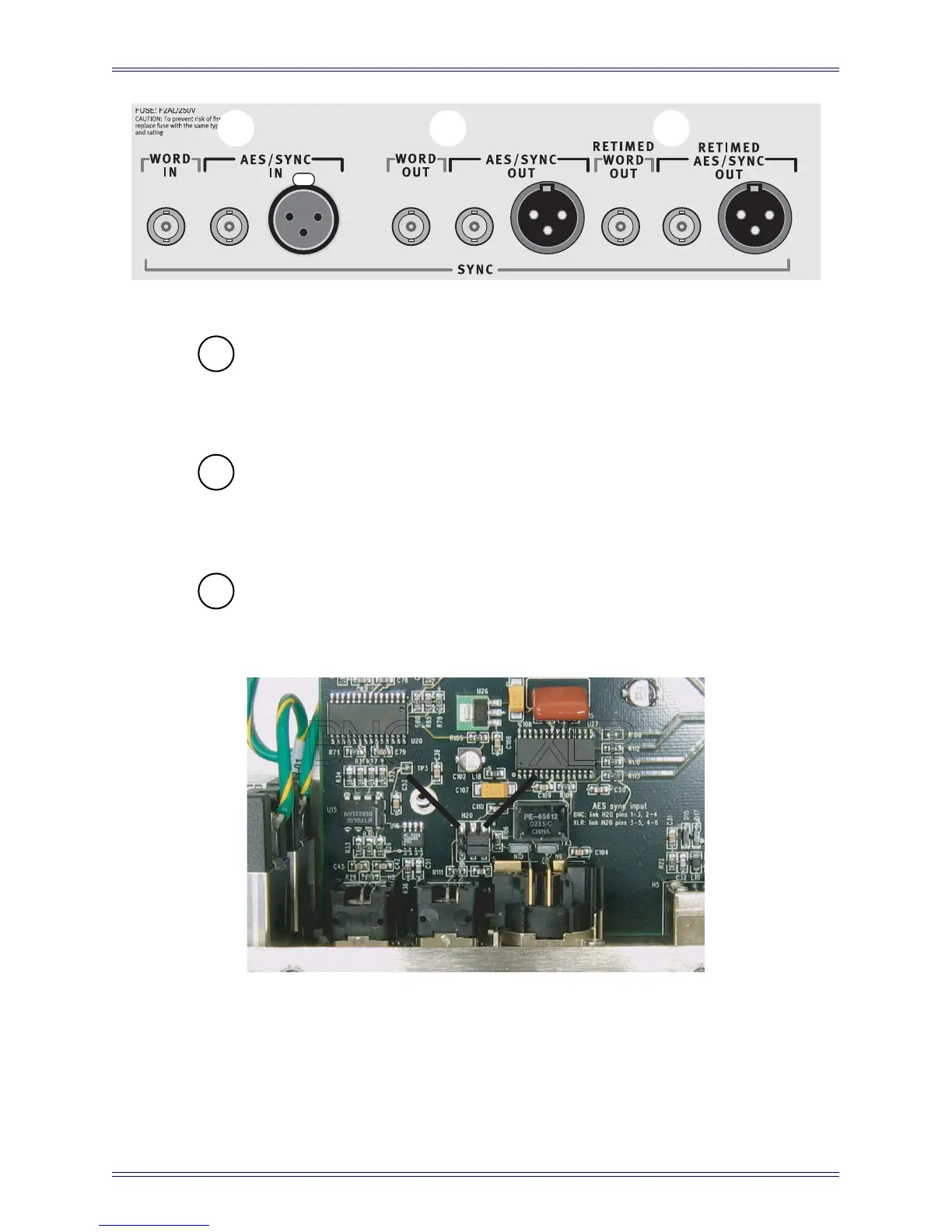

Figure 3-42 Rear Panel Sync Connectors
AES/SYNC IN (female XLR or BNC), WORD IN (BNC): Connect this port to
a digital sync reference (local unit only). Selection for XLR or BNC input is done
using two internal jumpers shown in Figure 3-39 Internal Sync Input Jumper..
The unit is shipped from the factory with the jumpers set for the XLR input.
AES/SYNC OUT (male XLR or BNC), WORD OUT (BNC): Connect one of
these ports to the digital sync reference input of any device receiving MADI at
the remote unit. Only one output connection (XLR or BNC) should be used at a
time.
RETIMED AES/SYNC OUT (male XLR), RETIMED WORD OUT (BNC):
Connect one of these ports to the digital sync reference input of any device send-
ing MADI from the remote unit back to the local unit.
Figure 3-43 Internal Sync Input Jumper
1 2 3
1
2
3
XLRBNC
