Euphonix System 5 Installation Guide System 5 Components
57
MA703 MADI to Analog Converter
Front Panel

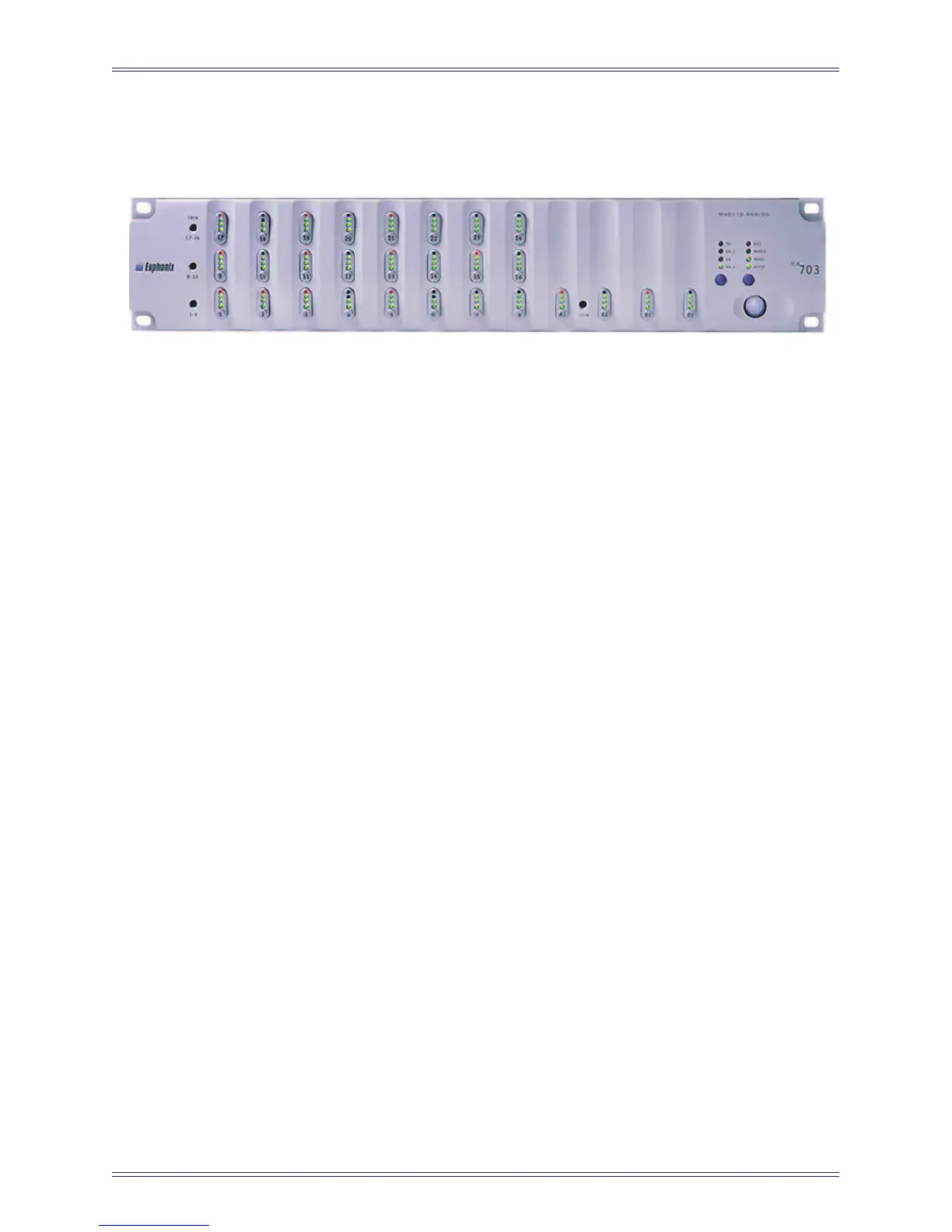

Figure 3-21 MA703 Front Panel
Signal Strength LEDs: Each of the 28 channels has a four-segment LED that represents
the following signal levels: -42 dB, -18 dB, -6 dB (green), -0.05 dB (red).
Output Trim Access:
Three detented trim rotary switches adjust the maximum analog
output level of channels 1-8, 9–16, and 17–24 in 2-dB steps between +12 and +26 dBu.
Sample Rate LEDs: These LEDs indicate the sample rate to which the converter is cur-
rently locked. Sample rates are auto-sensed. Supported sample rates are 96 kHz, 88.2 kHz,
48 kHz, 44.1 kHz, and Custom rates from external sources.
Sample Rate Source LEDs: These LEDs indicate the format of the Sample Rate Source
to which the converter is currently locked. Sample Rate Source can be auto-sensed or man-
ually selected. If an external source is not detected, the MA703 mutes its outputs. If a man-
ually selected source is not present, the Sample Rate Source indicator blinks.
• AES: Sample Rate locked to AES Input.
• Word: Sample Rate locked to Word Clock Input.
• MADI: Sample Rate locked to MADI.
• Auto: Sample Rate Source has been auto-sensed.
These LEDs appear in the same order in which signals are tested for their presence. This
detection procedure occurs when the converters are powered on. The Sample Rate Source
can also be selected manually.
Manual Selection Buttons: The button below each Sample Rate LED row manually se-
lects the sample rate.
Power Switch: On/Off switch.
