Euphonix System 5 Installation Guide

Euphonix System 5 Installation Guide System 5 Components
66
FC726 Format Converter
NOTE: FC726 is the same as FC727 but does not support Pro Tools.

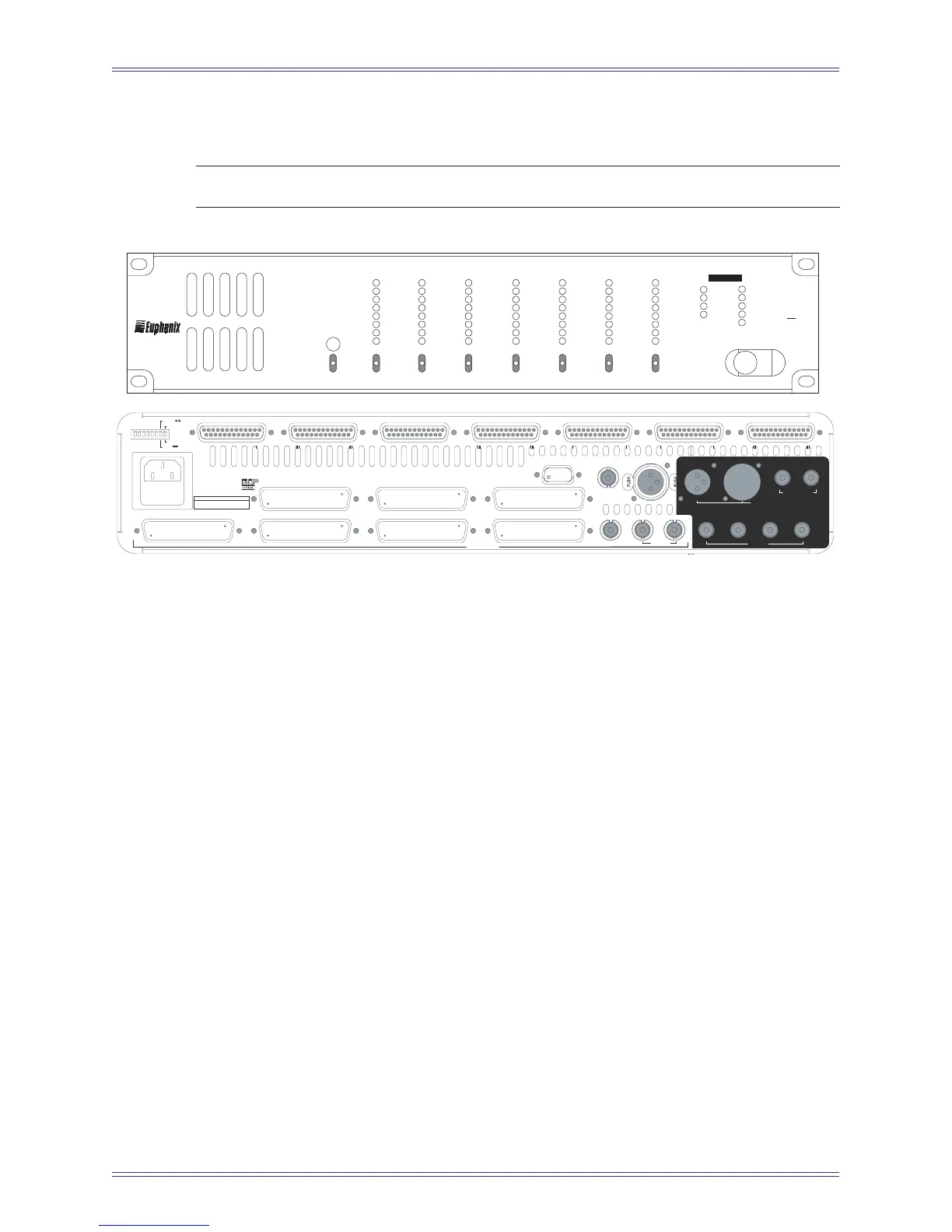

Figure 3-29 FC726 Front and Rear Panels
The FC726 Format Converter provides 56 sample-rate selectable, AES/EBU inputs and
outputs. It also allows direct connection to the following third-party digital formats: TDIF,
ProDigi, SDIF-2, and ADAT
Optical.
Power Connector (IEC): Accepts standard IEC power cord (provided). An autoran-
ging switching supply accepts voltages between 100–240 VAC, 50–60 Hz.
Format A Common Connectors (seven DD-50): Connects to third-party devices.
Each connector provides eight bidirectional channels. Appropriate adapters must be used
for each format to connect the third-party devices. Specify cable requirements at time of
order. See Table 3-8 through Table 3-11 for pinout specifications.
Format A AES Connectors (seven DB-25): Connects to AES devices. Each connec-
tor provides eight bidirectional channels (four AES pairs). Specify cable requirements at
time of order.
MADI A In 1 / MADI A Out 1 (two BNC): The MADI A In/Out Ports interface with
non-Euphonix MADI devices. At 48 kHz, MADI A provides 56 channels of 24-bit audio;
at 96kHz, 28 channels of 24-bit audio channels (cable not provided).
Format A AES Sync In (female XLR): Connect an AES Sync signal to this XLR con-
nector to synchronize the Format A MADI signal. According to the AES specification, to
operate correctly the AES sync signal must use the same sample rate as the incoming
MADI (cable not provided).
FC
726
FORMAT CONVERTER
MADI
SDIF-2
PRODIGI
TDIF
ADAT
PROTOOLS
AES
SRC
MADI
SDIF-2
PRODIGI
TDIF
ADAT
PROTOOLS
AES
SRC
MADI
SDIF-2
PRODIGI
TDIF
ADAT
PROTOOLS
AES
SRC
MADI
SDIF-2
PRODIGI
TDIF
ADAT
PROTOOLS
AES
SRC
MADI
SDIF-2
PRODIGI
TDIF
ADAT
PROTOOLS
AES
SRC
MADI
SDIF-2
PRODIGI
TDIF
ADAT
PROTOOLS
AES
SRC
MADI
SDIF-2
PRODIGI
TDIF
ADAT
PROTOOLS
AES
SRC
SRC ENABLE
96
48
44.1
CUSTOM
AES
WORD
MADI
FORMAT A
AUTO
FORMAT B
CH 1-8
CH 9-16 CH 17-24 CH 25-32 CH 33-40 CH 41-48 CH 49-56
FORMAT A
OUTPUT BIT
DEPTH
16
20
24
MADI
ON (STD)
OFF
ON (ALT)
OUTPUT BIT
DEPTH
16
20
24
OUTPUT BIT
DEPTH
16
20
24
OUTPUT BIT
DEPTH
16
20
24
OUTPUT BIT
DEPTH
16
20
24
OUTPUT BIT
DEPTH
16
20
24
OUTPUT BIT
DEPTH
16
20
24
FC726
EUPHONIX, INC.
PALO ALTO
MADE IN THE U.S.A.
AES 49-56 AES 41-48 AES 33-40 AES 25-32 AES 17-24 AES 9-16 AES 1-8
SERVICE
IN
IN
AES
SYNC
AES SYNC
WORD SYNC
IN
OUT
FORMAT B
MADI A
MADI
B
IN 2
OUT 2
IN 1
OUT 1
IN
CH 49-56 CH 41-48 CH 33-40 CH 25-32
CH 17-24 CH 9-16 CH 1-8
SDIF-2 SYNC
or
SLAVE CLK
OUT
FORMAT A
OU
T
VA C FUSE
100-240 1.0-0.5A 2.5A
50/60Hz
SLOW
CURRENT
FMT A FMT B
AES STEREO
AES MONO
FMT A AES/FMT B/FMT A
IN THRU
SLAVE CLK
CAUTION: To prevent risk of fire replace fuse with the same type and rating,












11
12







13
