Euphonix System 5 Installation Guide System 5 Components
75
SD942 8ch SD De/Embedder (three BNC): The SD941 is an interace for embedded audio in
SDI signals (270Mb/s). It can simultaneously de-embed and embed up to eight channels of
audio from/to a single SD video stream (SMPTE272M standard). Video In, Out, and Thru
are provided. Setup is via the web browser interface.
DD913 8ch AES Out (four BNC): The DD912 is an 8ch AES/EBU output interface. Coaxial
outputs are at 75 ohms. Sample rates up to 96kHz are supported, following the system clock.
DD909 8ch AES In (four female XLR): The DD908 is an 8ch AES/EBU input interface. XLR
inputs are at 110 ohms, with sample rate converters. Sample rates up to 96kHz are supported.
DD910 8ch AES Out (four male XLR): The DD910 is an 8ch AES/EBU output interface.
XLR outputs are at 110 ohms. Sample rates up to 96kHz are supported, following the system
clock.
DD911 4ch AES In/Out (four BNC): The DD911 is a 4ch AES/EBU input/output interface.
Coaxial inputs and outputs are at 75 ohms, with sample rate converters on the inputs. Sample
rates up to 96kHz are supported. Relays connect related inputs and outputs if power fails
(hardware bypass).
DD912 8ch AES In (four BNC): The DD912 is an 8ch AES/EBU input interface. Coaxial in-
puts are at 75 ohms, with sample rate converters on the inputs. Sample rates up to 96kHz are
supported.
DD908 4ch AES In/Out (two female XLR, two male XLR): The DD908 is a 4ch AES/EBU
input/output interface. XLR inputs and outputs are at 110 ohms, with sample rate converters
on the inputs. Sample rates up to 96kHz are supported.
DA923 4ch Analog Line Output (DA-15 female): The AD923 is a 4ch 24-bit D/A converter
with four balanced analog outputs. It supports sample rates up to 96kHz.

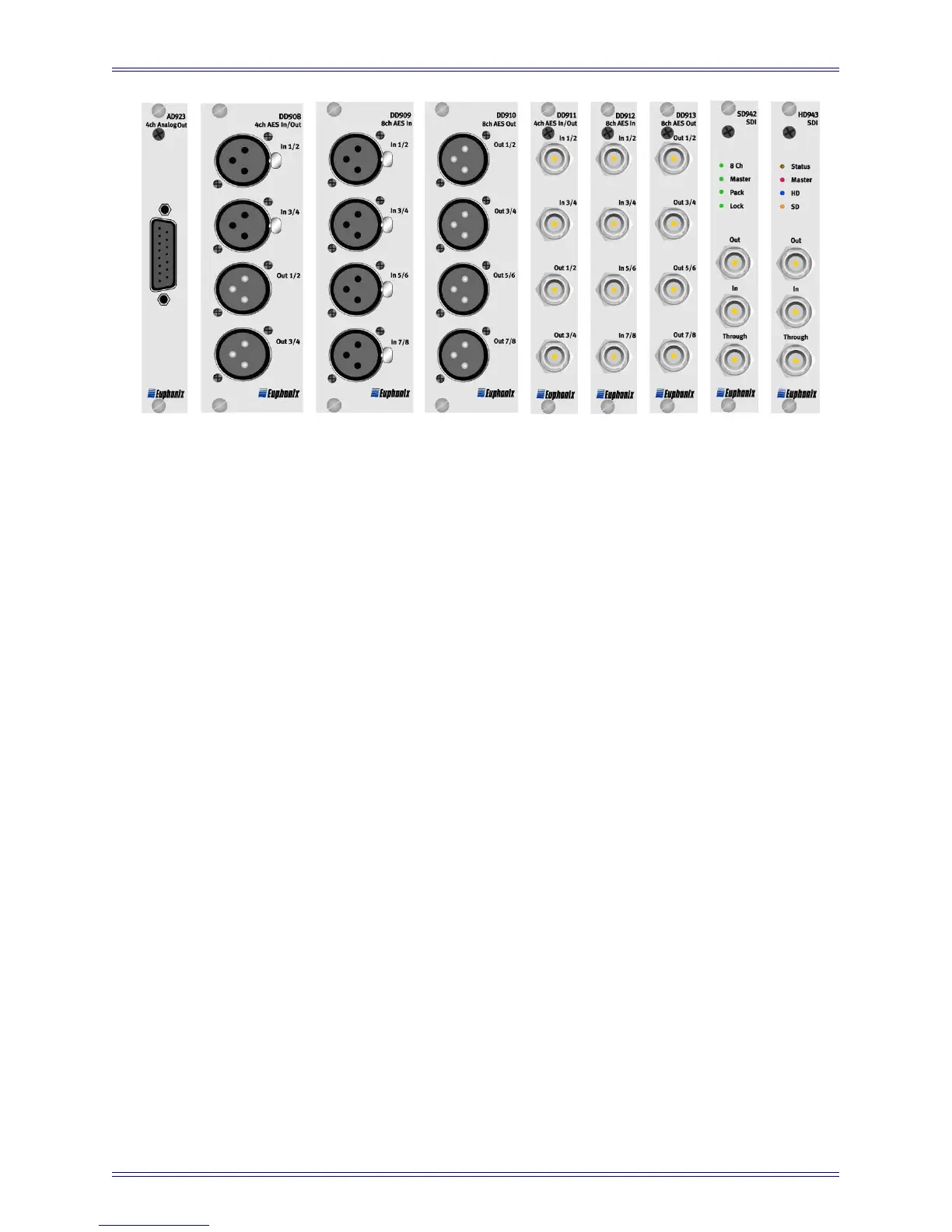

Figure 3-32 More Modular I/O modules
