Euphonix System 5 Installation Guide System 5 Components
79
TT002
Input and Output Connections

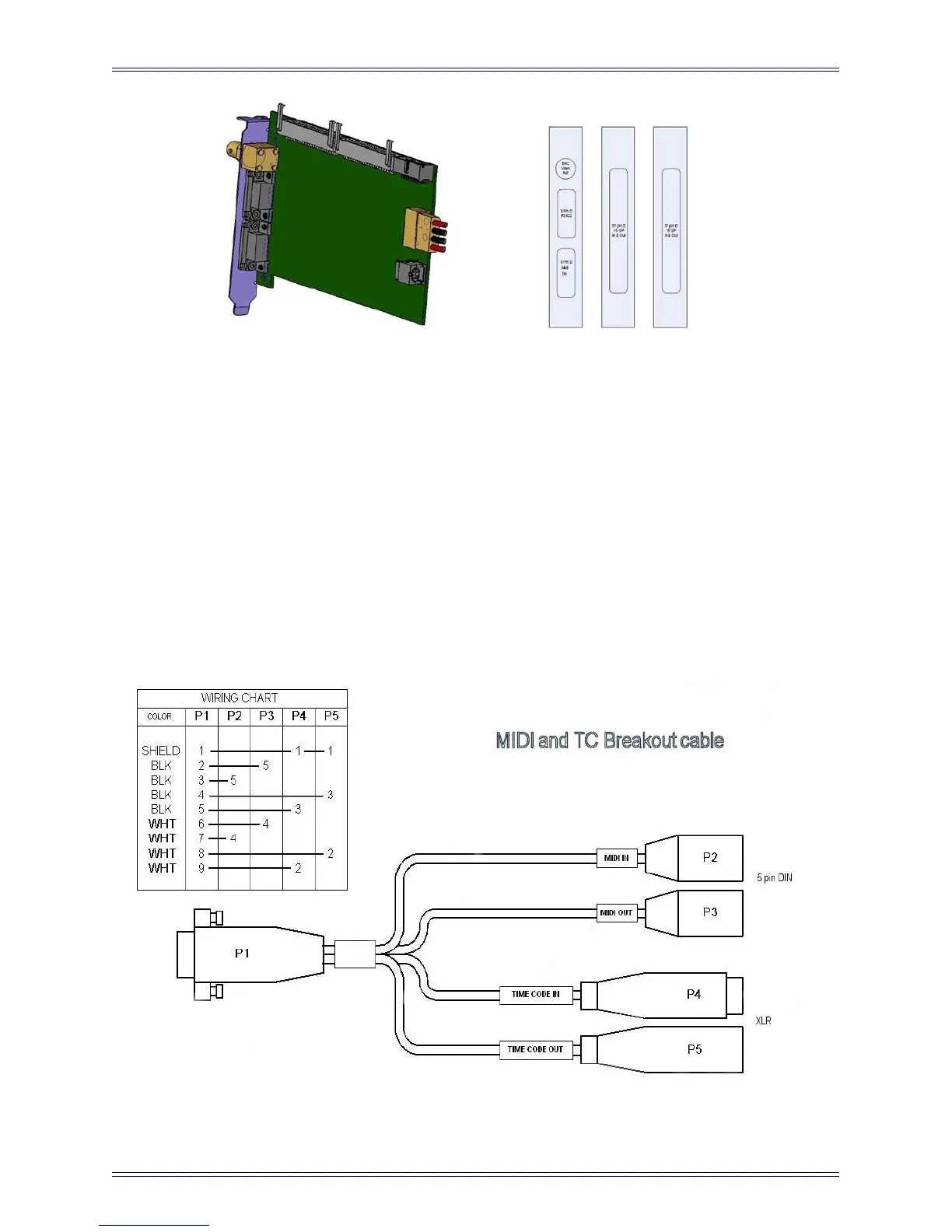

Figure 3-37 TT002 P1 connections and pinouts
Figure 3-36 TT002 card and panels
1 2
P1
The TT002 is a single-port RS422 (Sony 9-pin) machine controller that is installed in the
System Computer. It also supports Midi Machine Control (MMC), and can read and
generate timecode over MIDI, RS422, and LTC. A BNC input connector accepts Bi/Tri-
Level video reference signals.
General-purpose inputs and outputs are handled by the TT002. Thirty-two buffered TTL
inputs and open-collector outputs are available on two 37-pin D-subminiature connectors
on the rear panel of the System Computer. Two TT002’s may be used for a total of 64
GPIO.
