Jumpers and connectors
Issue G 29

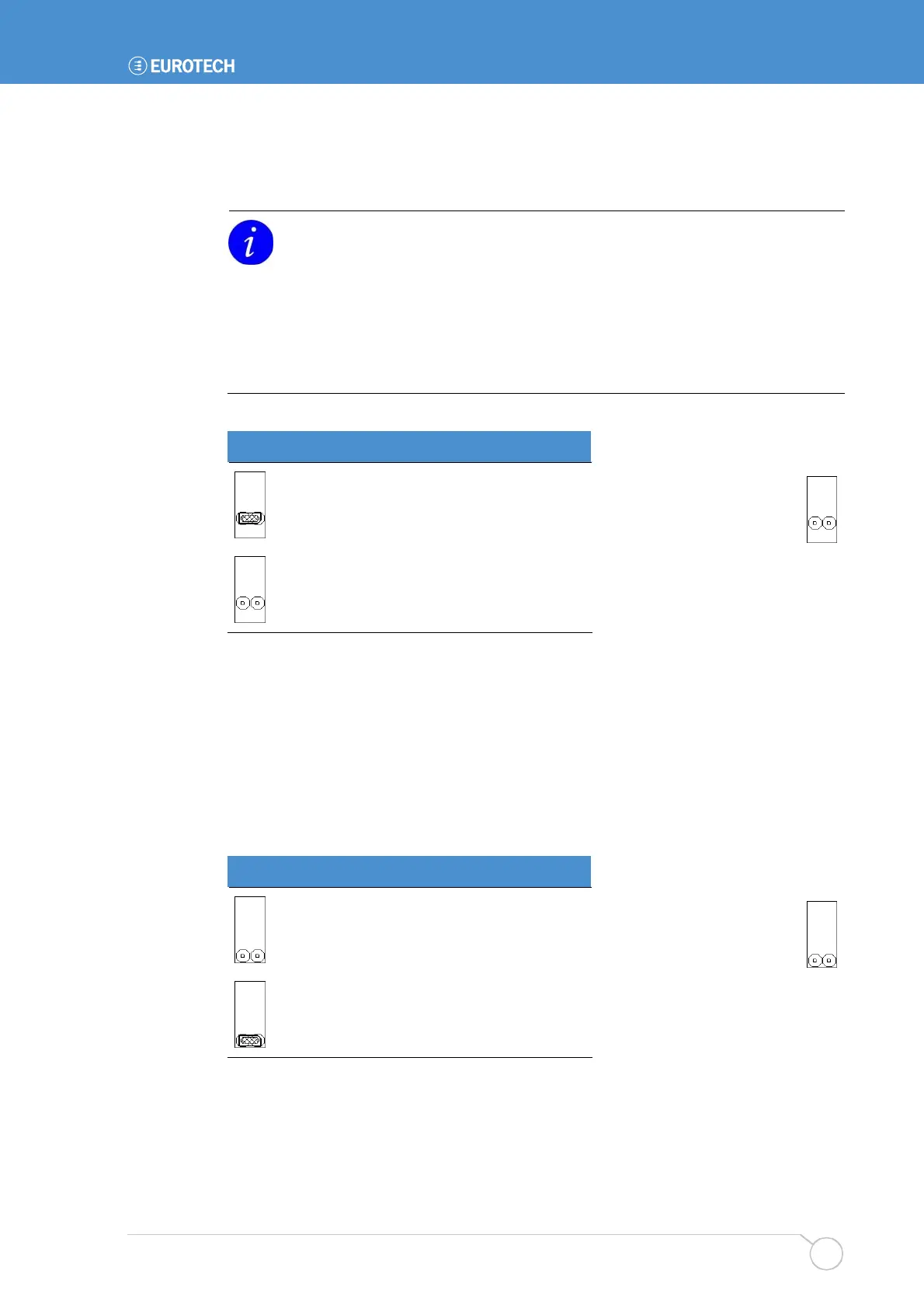

APOLLO V2Ix: -CMOS reset jumper
Used to clear the contents of the battery backed CMOS memory.
Please note:
• Because CMOS values are backed up in an onboard EEPROM, clearing the
CMOS results in the CMOS values being reloaded from the EEPROM.
• To restore the CMOS to factory default settings the Reset EE jumper position
should be used.
• Changes to this jumper setting must only be made with board power
completely removed. To do this you must remove the power cable.
CMOS Description
Reset CMOS memory.
CMOS unchanged.
APOLLO V2Ix: TPM jumper
This position is used with the APOLLO TPM to provide future functionality.
APOLLO V2Ix: Reset EE jumper
This position is used to reload the default CMOS values from the system BIOS into the
backup EEPROM and onboard CMOS. The CMOS and EEPROM updates are only
performed during a power cycle so setting this jumper during normal board operation will
have no effect.
CMOS Description
Reload CMOS EEPROM.
CMOS EEPROM unchanged.
Default setting:
Default setting:
