Jumpers and connectors
Issue G 37

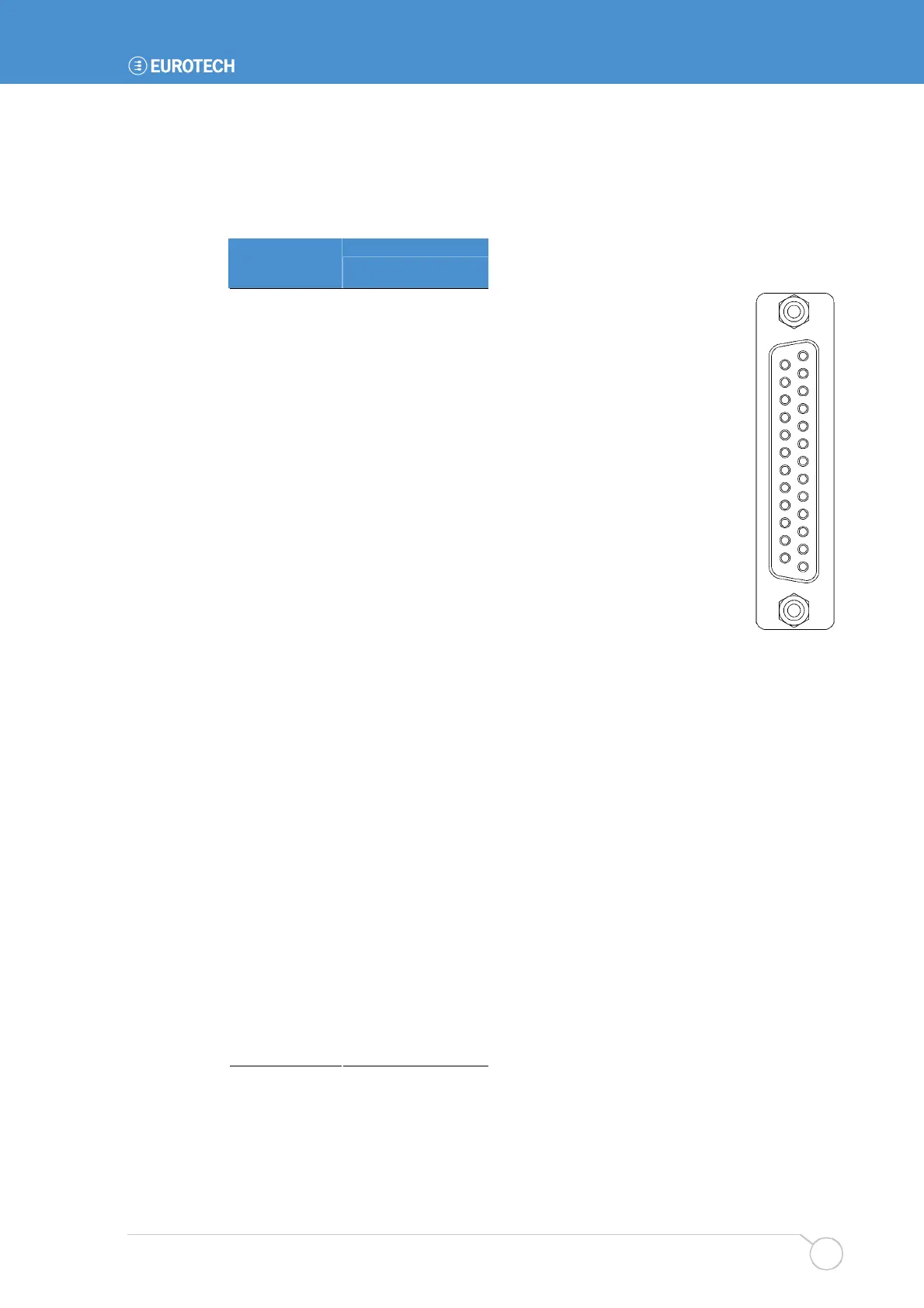

J7A – Parallel port (LPT1)
DB25 female
PC99 Colour: Maroon
DB25
D-type socket Signal name
1 STROBE
2 D0
3 D1
4 D2
5 D3
6 D4
7 D5
8 D6
9 D7
10 ACKNOWLEDGE
11 BUSY
12 PAPER EMPTY
13 SELECT
14 AUTOFEED
15 ERROR
16 INIT
17 SELECT IN
18 Ground
19 Ground
20 Ground
21 Ground
22 Ground
23 Ground
24 Ground
25 Ground
1
13
14
25
