APOLLO user manual
Issue G
36

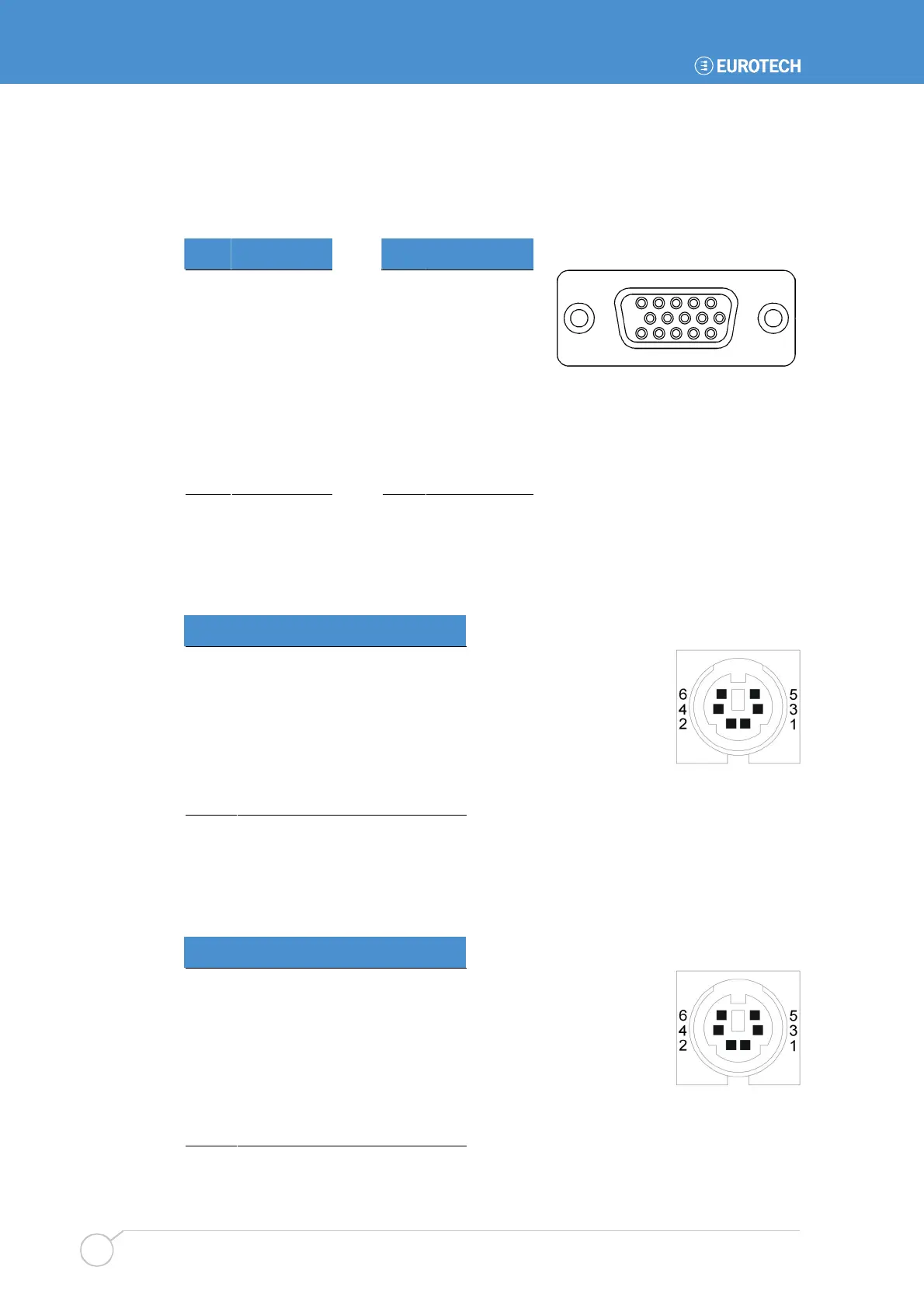

J6A – VGA CRT connector
DB15 Female
PC99 Colour: Blue
Pin Signal name Pin Signal name
1 Red 2 Green
3 Blue 4 No Connect
5 Ground 6 Ground
7 Ground 8 Ground
9 +5V (Fused) 10 Ground
11 No Connect 12 DDCSDA
13 HSYNC 14 VSYNC
15 DDCSCL
J6B – PS/2 keyboard
Connector: 6-pin Mini-DIN
PC99 Colour: Purple
Pin Signal name
1 KB DATA
2 No Connect
3 Ground
4 +5V
5 KB CLOCK
6 No Connect
J6C – PS/2 mouse
Connector: 6-pin Mini-DIN.
PC99 Colour: Green
Pin Signal name
1 MS DATA
2 No Connect
3 Ground
4 +5V
5 MS CLOCK
6 No Connect
5
1
15
11
