Jumpers and connectors
Issue G 35

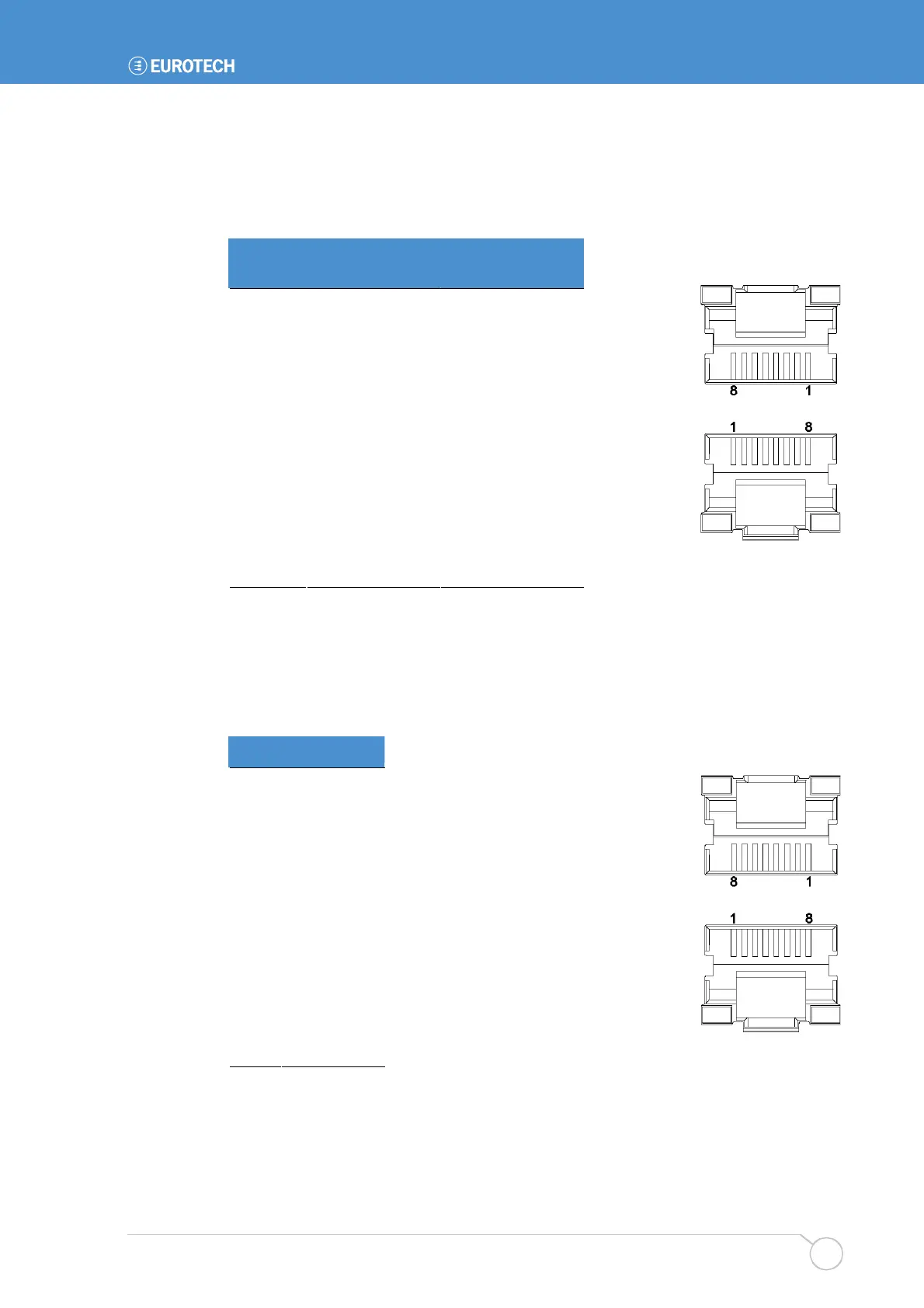

J5A – Primary LAN
APOLLO V1Ix: RJ-45 10/100Mb/s or optional 10/100/1000Mb/s.
APOLLO V2Ix: RJ-45 10/100/1000Mb/s.
Pin
Signal name
(10/100)
Signal name
(10/100/1000)
1 TX+ MD0+
2 TX- MD0-
3 RX+ MD1+
4 No Connect MD2+
5 No Connect MD2-
6 RX- MD1-
7 No Connect MD3+
8 No Connect MD3-
For a Gigabit Ethernet (10/100/1000) connection the network cable should be a CAT5 or
above and include all four pairs.
J5B – Secondary LAN
RJ-45 10/100Mb/s.
Pin Signal name
1 TX+
2 TX-
3 RX+
4 No Connect
5 No Connect
6 RX-
7 No Connect
8 No Connect
