J4A – IEEE1394 (Firewire) connector port 0

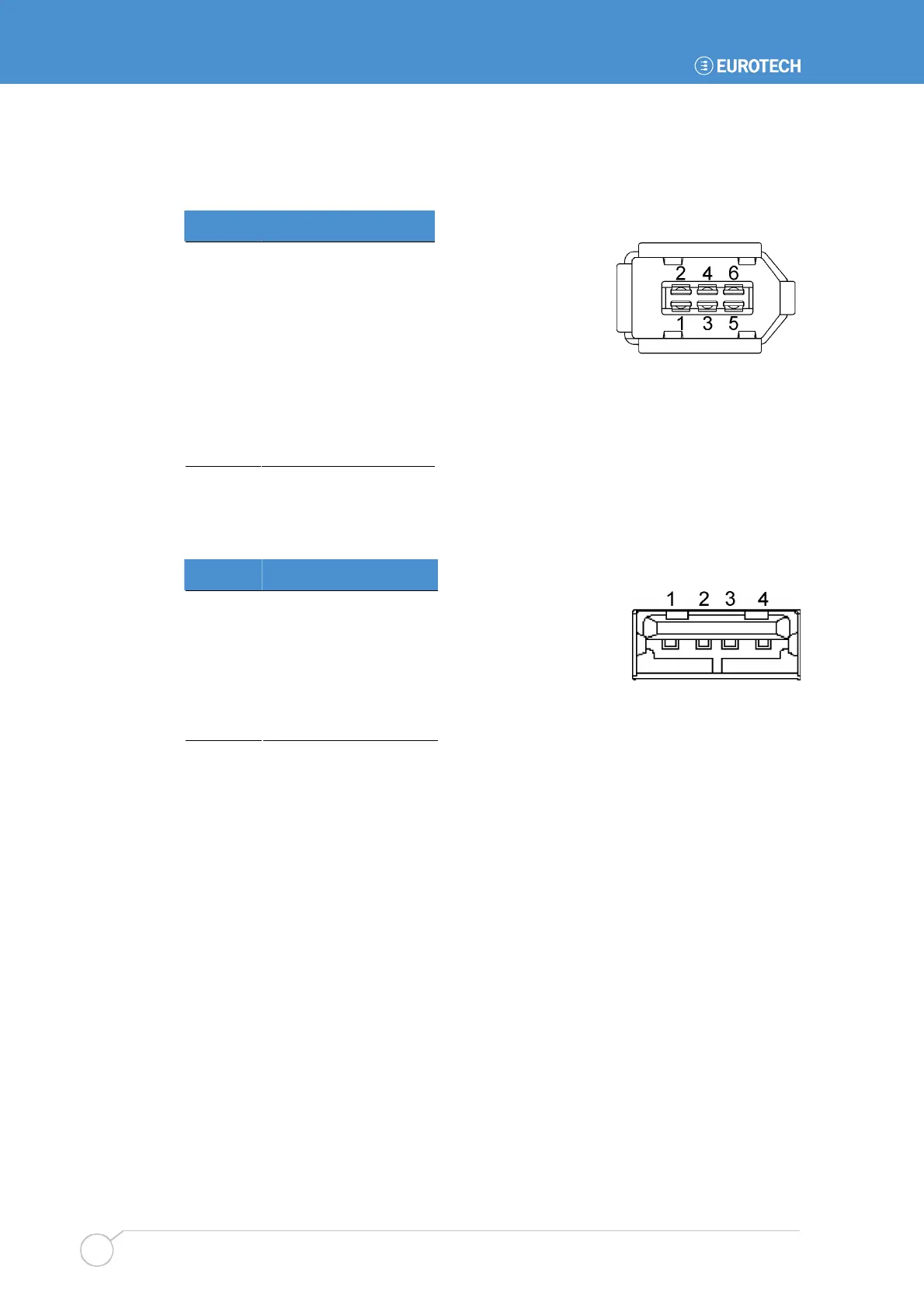

6-pin IEEE1394 connector.
Pin Signal name
1 +12V (fused)
2 Ground
3 TPB0-
4 TPB0+
5 TPA0-
6 TPA0+
J4B and J4C – USB ports 1 and 2
USB type A connector.
Pin Signal name
1 VBUS
2 Data-
3 Data+
4 Ground
