APOLLO user manual
Issue G
46

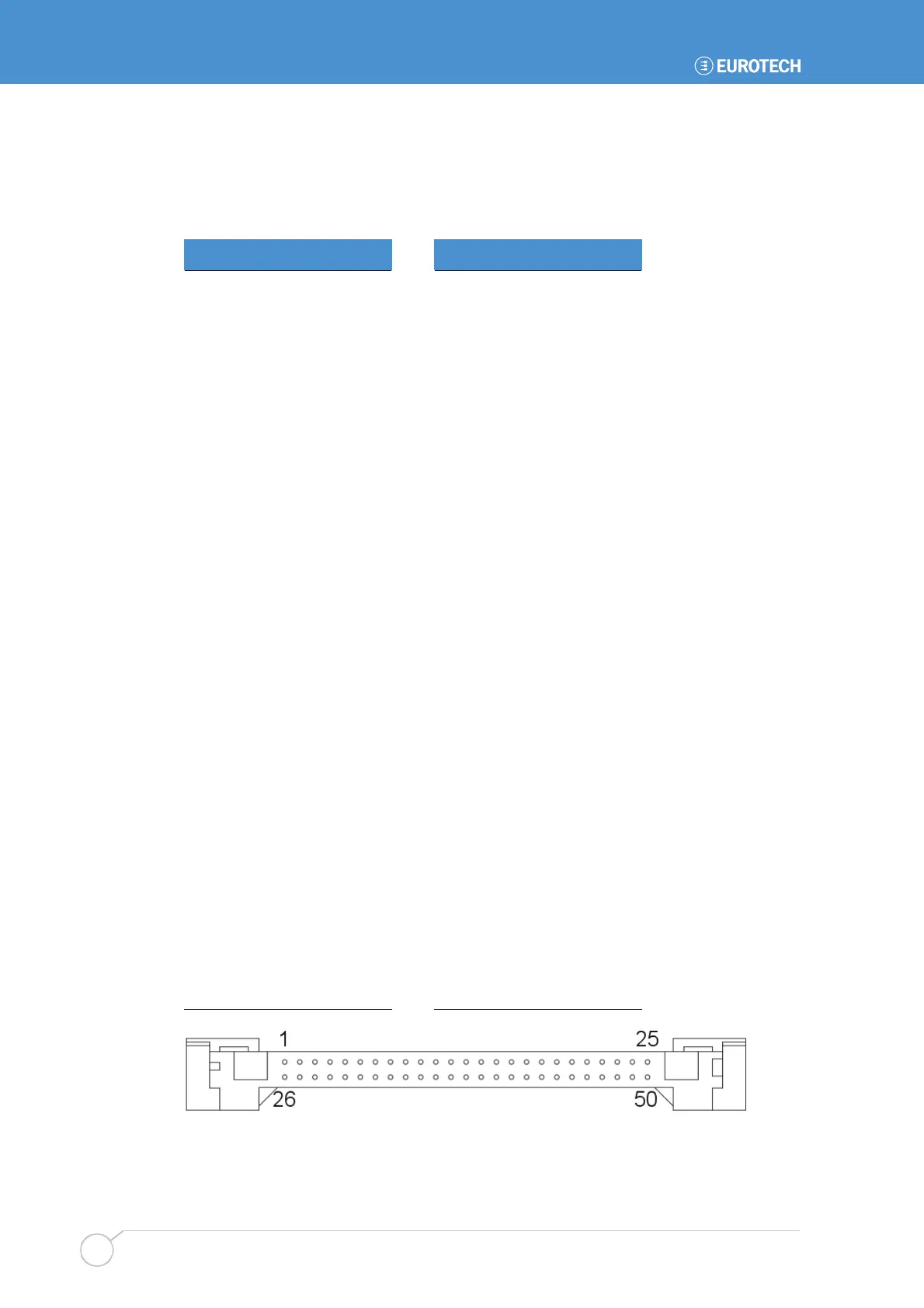

J20 – CompactFlash
®
socket
Compact Flash CF+ type I/II socket.
Connector: 50 pin right angle CompactFlash
®
.
Pin Signal name Pin Signal name
1 Ground 2 D03
3 D04 4 D05
5 D06 6 D07
7 /CE1 8 A10
9 /OE 10 A09
11 A08 12 A07
13 CF VCC 14 A06
15 A05 16 A04
17 A03 18 A02
19 A01 20 A00
21 D00 22 D01
23 D02 24 /IOCS16
25 /CD2 26 /CD1
27 D11 28 D12
29 D13 30 D14
31 D15 32 /CE2
33 /VS1 34 /IORD
35 /IOWR 36 /WE
37 /INTRQ 38 CF VCC
39 A25 40 /VS2
41 RESET 42 /WAIT
43 /INPACK 44 /REG
45 /BVD2 46 /BVD1
47 D08 48 D09
49 D10 50 Ground
