Jumpers and connectors
Issue G 45

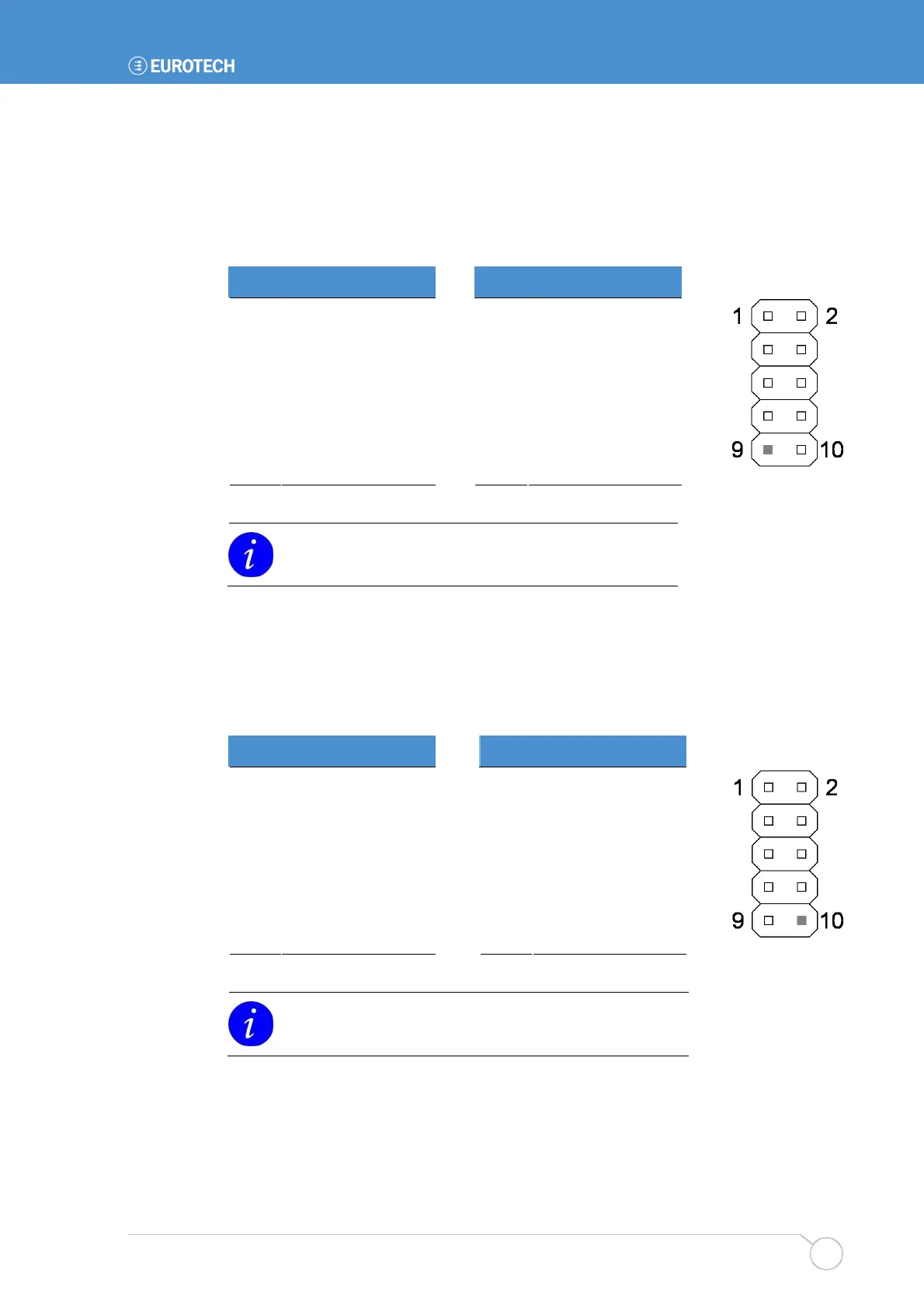

J18 – USB ports 3 and 4
10-way, 2.54mm (0.1") x 2.54mm (0.1") dual row header.
Mating connector: Harwin M20-1070500
Mating connector crimps: Harwin M20-1180022
Pin Signal name Pin Signal name
1 VBUS (port 3) 2 VBUS (port 4)
3 D- (port 3) 4 D- (port 4)
5 D+ (port 3) 6 D+ (port 4)
7 Ground 8 Ground
9 Key (no pin) 10 Ground
For error free data transmission, cable certified for USB
2.0 operation should be used.
J19 – IEEE1394 connector port 1
10-way, 2.54mm (0.1") x 2.54mm (0.1") dual row header.
Mating connector: Harwin M20-1070500.
Mating connector crimps: Harwin M20-1180022.
Pin Signal name Pin Signal name
1 TPA1+ 2 TPA1-
3 Ground 4 Ground
5 TPB1+ 6 TPB1-
7 +12V (fused) 8 +12V (fused)
9 Shield ground 10 Key (no pin)
For error free data transmission, cable certified for
IEEE1394 operation should be used.
