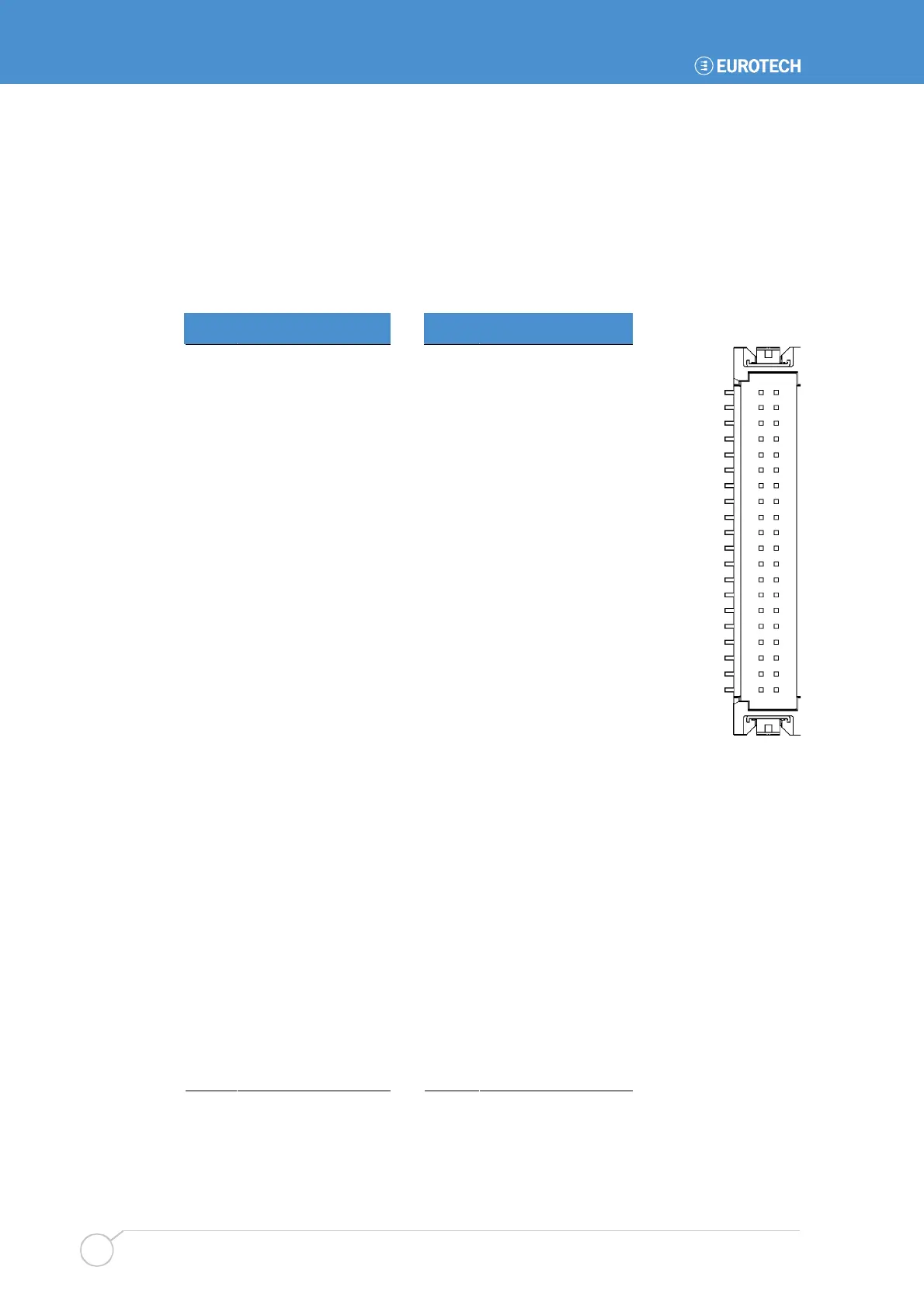

J17 – LVDS display interface (Dual channel)
40-way 2mm Hirose DF13-40DP-1.25V.
Mating connector: Hirose DF13-40DS-1.25C
Crimps: Hirose: DF13-2630SCFA
For optimum performance of the LVDS interface a shielded twisted pair cable should be
used.
Pin Signal name Pin Signal name
1 +3.3V 2 +3.3V
3 +3.3V 4 +3.3V
5 Ground 6 Ground
7 IYA0- 8 IYA1-
9 IYA0+ 10 IYA1+
11 Ground 12 Ground
13 IYA2- 14 IYA3-
15 IYA2+ 16 IYA3+
17 Ground 18 Ground
19 ICLKA- 20 IYB0-
21 ICLKA+ 22 IYB0+
23 Ground 24 Ground
25 IYB1- 26 IYB2-
27 IYB1+ 28 IYB2+
29 Ground 30 Ground
31 IYB3- 32 ICLKB-
33 IYB3+ 34 ICLKB+
35 Ground 36 Ground
37 Ground 38 Ground
39 DDC CLK 40 DDC DATA
1
2
40
39
