December 2019W11/W12/W13 | Operation manual
3.4.3 Joystick for lifting frame
Accident hazard due to wheel loader tipping!
Keep the lifting frame lowered during transport.
Accident hazard due to uncontrolled lifting frame movement!
Only operate the lifting frame and attachment from the driver's seat!
Always work calmly and cautiously. Hectic and rapid operation leads to accidents.
Always lower the lifting frame during interruptions and at the end of the shift.

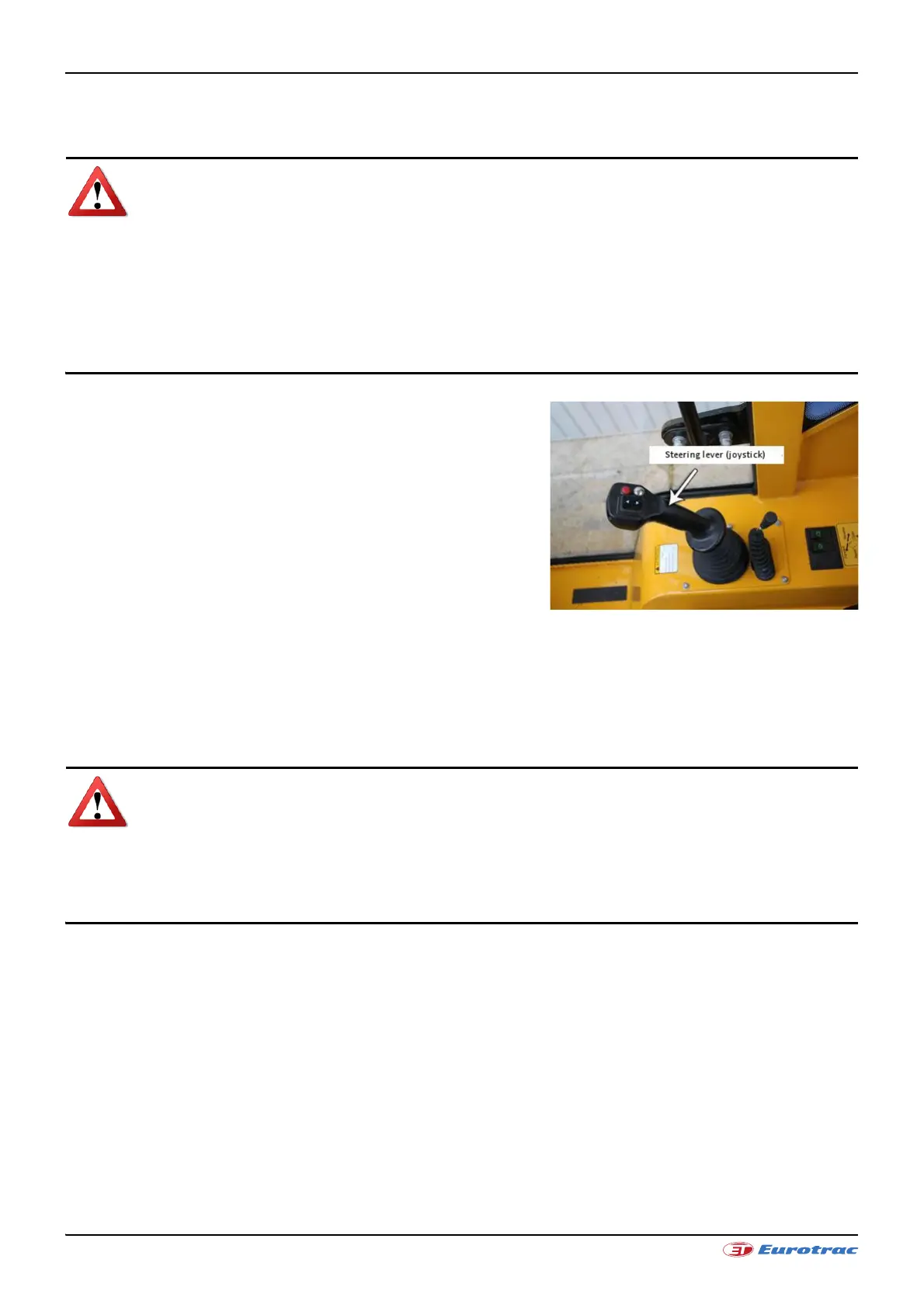

Lifting frame movements are controlled by the joystick. The joystick
is located to the right of the driver's seat.
Lifting frame
• Move the joystick backwards:
the lifting frame rises.
• Move the joystick forwards:
the lifting frame lowers.
• Move the joystick 2 step forwards:
the lifting frame is now in the floating position (optional extra).
Attachment
• Move the joystick left: the attachment tips inwards.
• Move the joystick right: the attachment tips outwards.
3.4.4 Joystick for ancillary hydraulics
Hazard due to hydraulic system overheating! Ensure that the ancillary hydraulics joystick is always in the "zero
position" when the ancillary hydraulics are not required. Lock the ancillary hydraulics joystick when it is not
required. (To do this, press the joystick down firmly until it locks into place. To unlock, you must pull the joystick
back up firmly.) Avoid soiling. Ensure that the hydraulic connections are clean!
