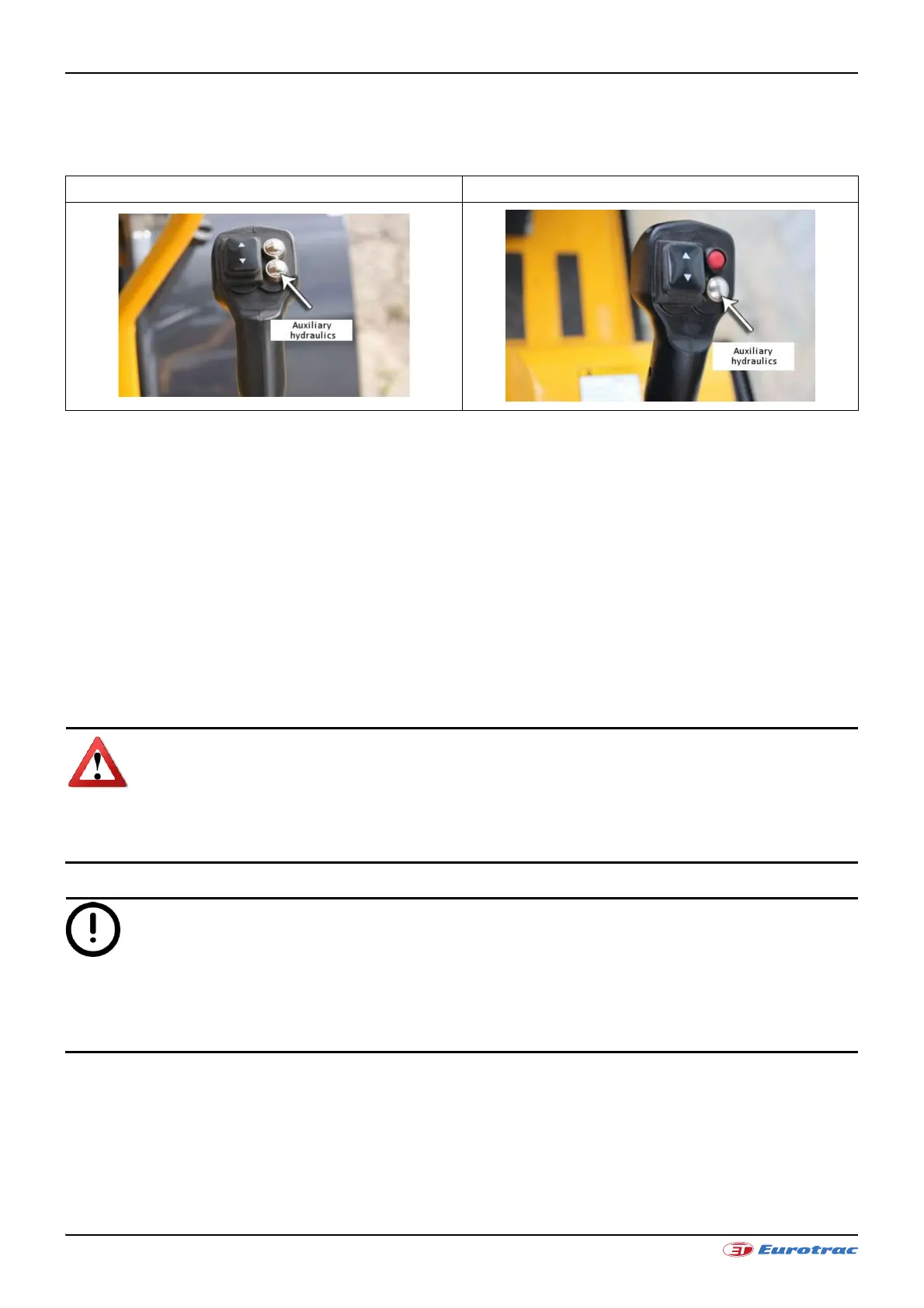

The additional hydraulics on the front arm: press the ancillary hydraulics button and move the joystick to the left
and right. The ancillary hydraulics can be very precisely controlled. Take care to use the joystick carefully.
• Push the joystick to the left (and simultaneously press the ancillary hydraulics button):
The left connection is the pressure side, the right is the return.
• Push the joystick to the right (and simultaneously press the ancillary hydraulics button):
The right connection is the pressure side, the left is the return.
This may vary from model to model. Please always check this before using the wheel loader with optional
equipment.
Ancillary hydraulics
This can be operated using an additional lever with changeover valve. Let yourself be instructed by qualified
personnel and complete this manual here.
3.4.5 Lifting frame locking and joystick for ancillary hydraulics
Danger due to unintentional lifting frame activation when driving on the road. Always lock the lifting frame by
applying the lock before driving on the road. Always lock the lifting frame before leaving the wheel loader. Only
release the lock when you are sat in the driver's seat and start to work.
The lifting frame and the control lever for the ancillary hydraulics can be secured with a lock against unintentional
activation. If you have activated the lock, it is not possible to operate the lifting frame or ancillary hydraulics. The
lifting frame and ancillary hydraulics lock is not indicated by indicator lights, it can be recognized by the position of
the control lever.
Eurotrac W11 Eurotrac W12/W13
