December 2019W11/W12/W13 | Operation manual
ENVIRONMENTAL INFORMATION
Hydraulic oil is harmful to the environment! Avoid uncontrolled release into the environment.
1. Approach the attachment with the wheel loader.
2. Place the locating bolt beneath the locating hook.
3. Raise the lifting frame and tip it against the attachment.

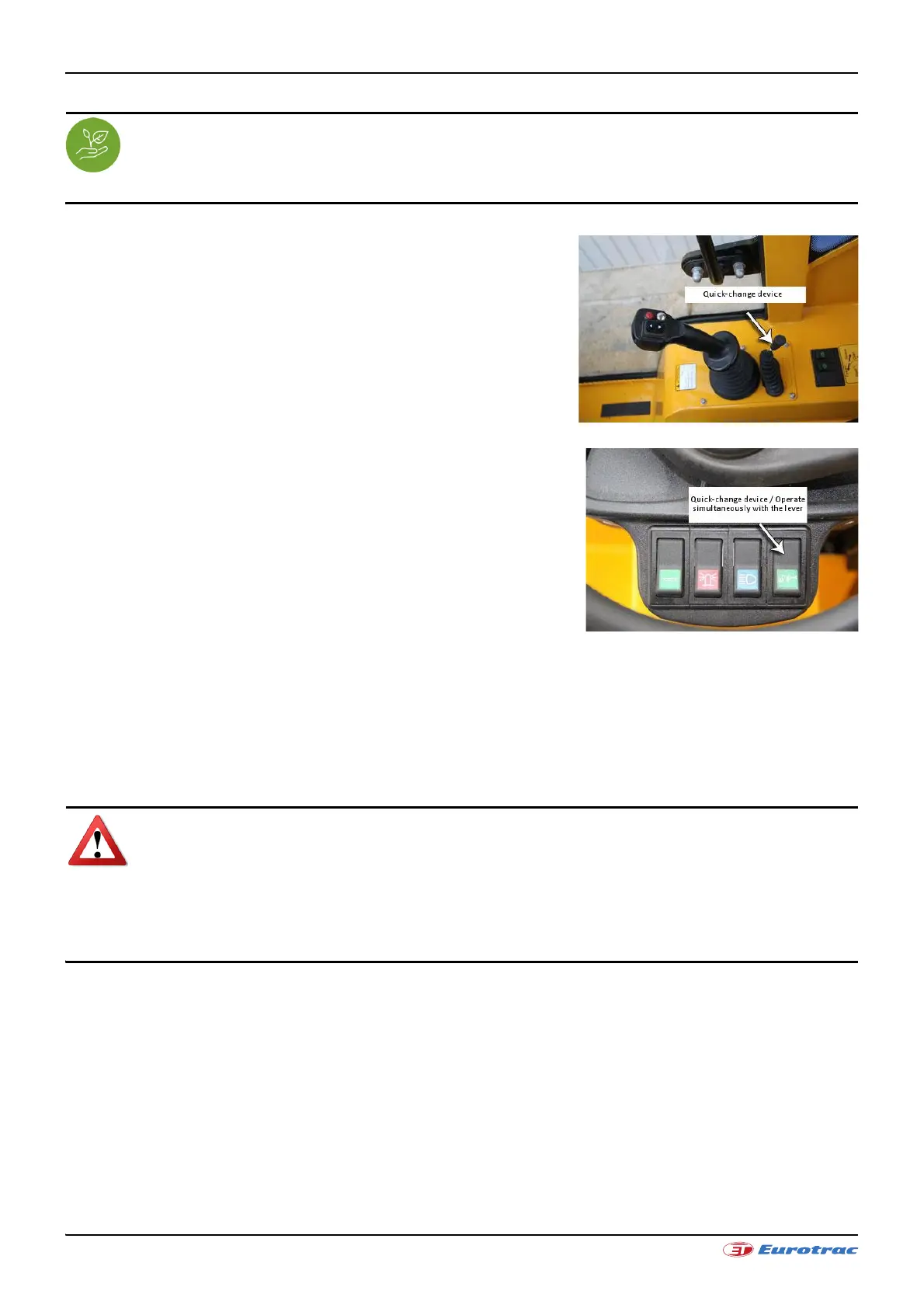

4. Extend the locking bolt using the quick-change device lever.
(With a hydraulic quick-change device)
5. Check that the bolts are located in the locking holes.
6. Unit with hydraulic function:
- Switch off the engine.
- Switch on the ignition.
- Press the ancillary hydraulics button and move the joystick
several times in both directions. This depressurizes the
ancillary hydraulics lines.
7. Insert the quick-release couplings from the attachment into the
corresponding connections of the ancillary hydraulics on the
lifting frame.
8. Check the attachment's hydraulic system and the ancillary
hydraulics system's quick-release coupling for leaks. Carefully
move the attachment.
Eurotrac W13 special feature: in addition to the quick-change device lever, the quick-change device switch must be
pressed simultaneously.
Uncoupling attachments
Accident hazard due to people remaining in the danger zone!
Ensure that no persons are located in the wheel loader's danger zone. Accident hazard due to the uncoupled
attachment tipping. Close attachments with movable parts. Ensure that the attachment is resting on the ground. If
necessary, support the attachment with the correct supports. Place the attachment on solid and level ground only.
