Function

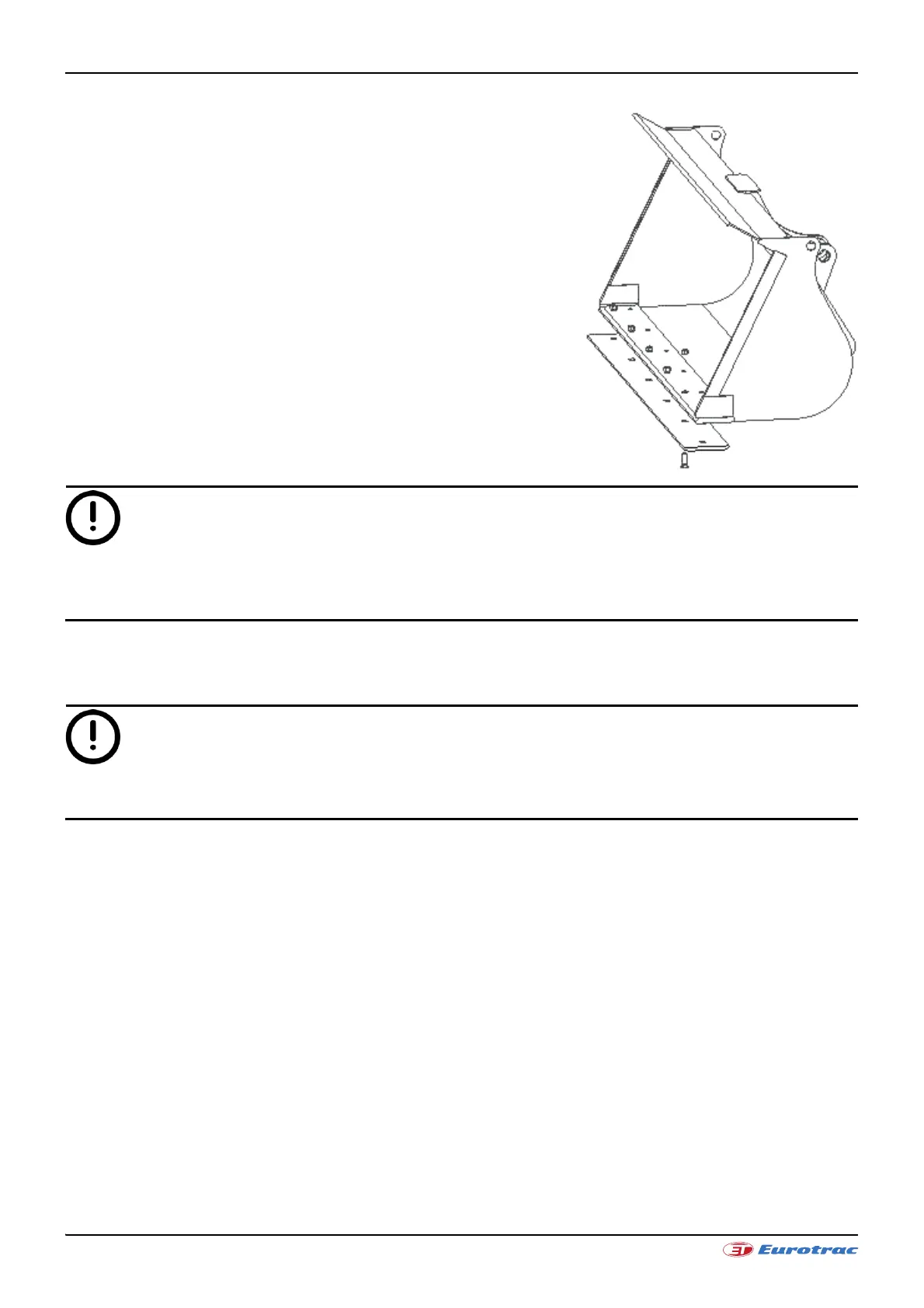

The lightweight goods bucket/soil bucket are intended for loosening,
collecting, transporting and placing materials.
Attaching the front bucket
Read "Coupling attachments".
Control elements
Operate the front bucket using the lifting frame control lever.
Operation
Practice handling the front bucket before working with it for the first time.
When tilting the bucket to load vehicles, two movements may be carried out simultaneously if necessary, e.g. lifting
and dumping or lowering and tipping. To do this, you must superimpose the movement on the control lever.
Level indicator (optional extra)
When using various attachments, you can place a mark on the guide tube for each attachment. You can then quickly
adjust the level indicator when replacing attachments.
Observe the level indicator to better estimate the tilting position of the attachment from the driver's seat.
Adjusting the level indicator
1. Bring the attachment parallel to the ground.
2. Release the hook by rotating anti-clockwise.
3. Move the guide tube so that the indicator bar connects to the end of the guide tube.
4. Set the lever by turning it clockwise.
5. Now you can align the attachment according to the indicator position while working.
