2.4. Description c-pro 3 EXP hecto and c-pro 3 EXP hecto+

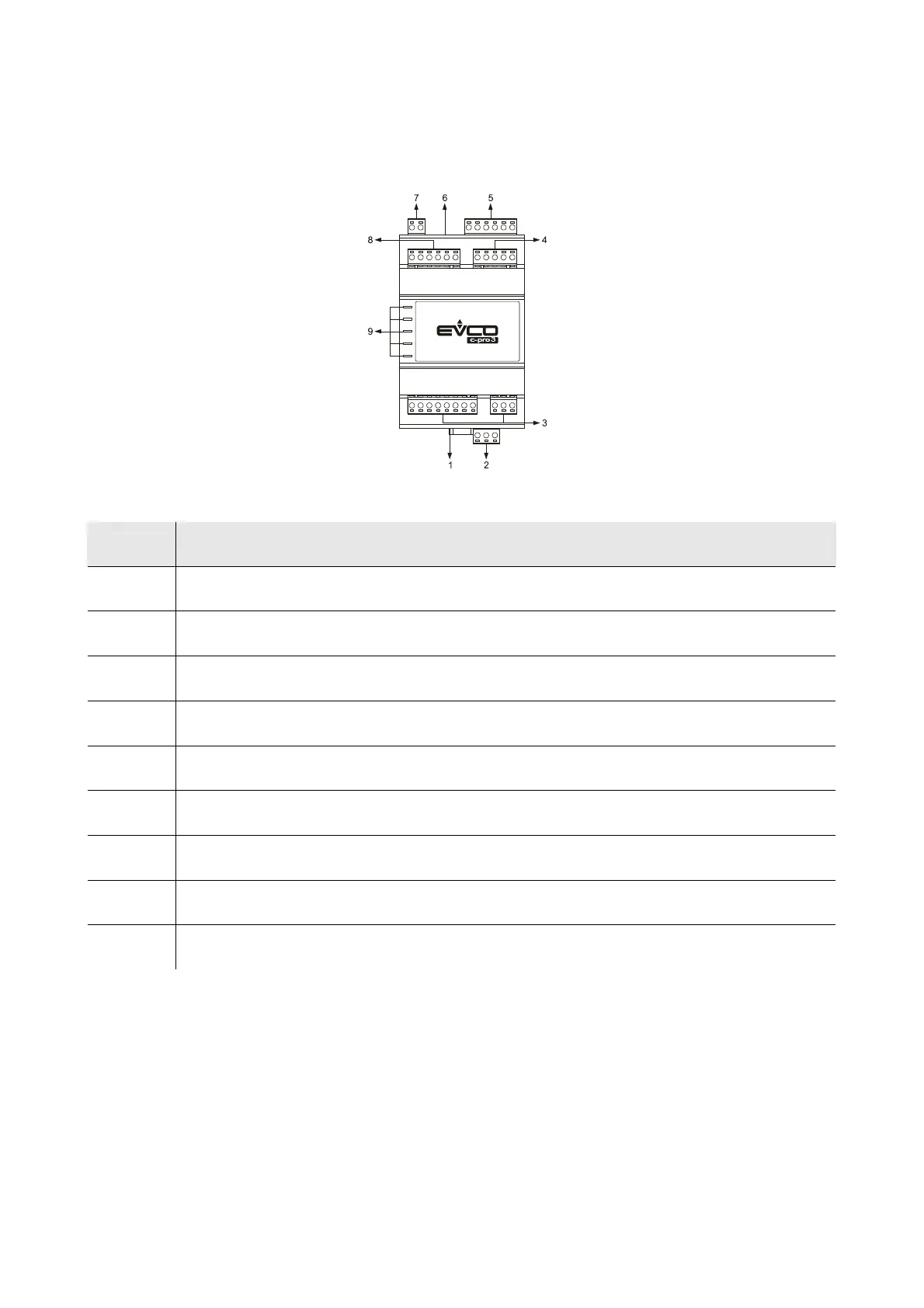

The following drawing shows the aspect of c-pro 3 EXP hecto and of c-pro 3 EXP hecto+.
The following table shows the meaning of the parts of the expansion.
Part Meaning
1 micro-switch to plug in the termination of the CAN port
2 CAN port
3 digital outputs
4 analog outputs in c-pro 3 EXP hecto, analog inputs and analog outputs in c-pro 3 EXP hecto+
5 analog inputs
6 port to update the firmware of the expansion
7 power supply
8 digital inputs
9 signalling LEDs
