Evco c-pro 3 Series User Manual

EVCO S.p.A. c-pro 3 | Hardware manual ver. 2.0 | Code 114CP3E204
page 7 of 86
2. DESCRIPTION
2.1. Description c-pro 3 hecto and c-pro 3 hecto+

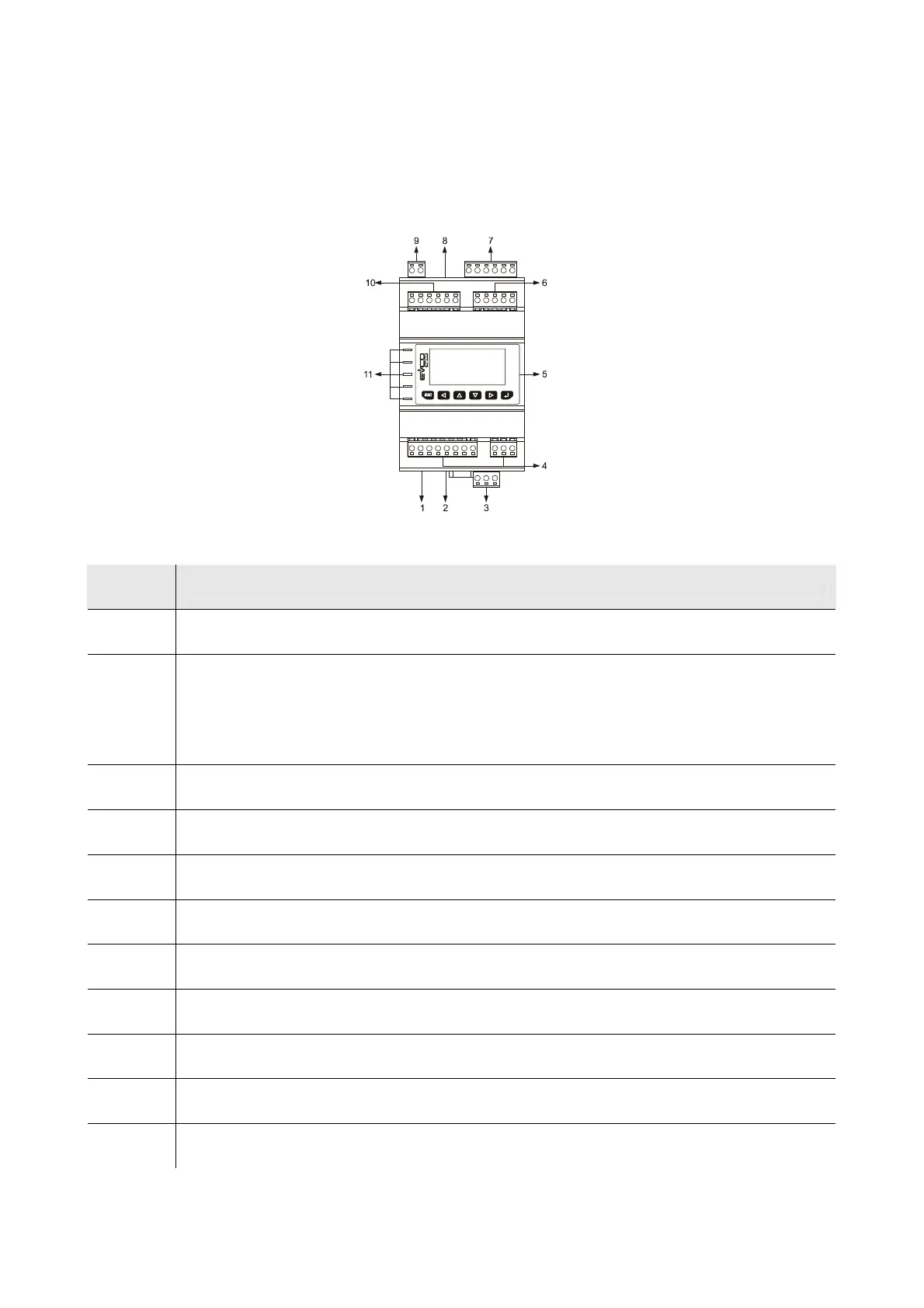

The following drawing shows the aspect of c-pro 3 hecto and of c-pro 3 hecto+.
The following table shows the meaning of the parts of the controller.
Part Meaning
1 RS-485 port with Modbus master / slave communication protocol
2
micro-switch to:
- plug in the termination of the RS-485 port
- polarize the network of the RS-485 port
- plug in the termination of the CAN port
3 CAN port
4 digital outputs
5 display and keyboard (available in c-pro 3 hecto+ only, not available in the blind versions)
6 analog outputs in c-pro 3 hecto, analog inputs and analog outputs in c-pro 3 hecto+
7 analog inputs
8 programming and debugging port
9 power supply
10 digital inputs
11 signalling LEDs
