4.3.2. Example of electrical connection of c-pro 3 EXP hecto

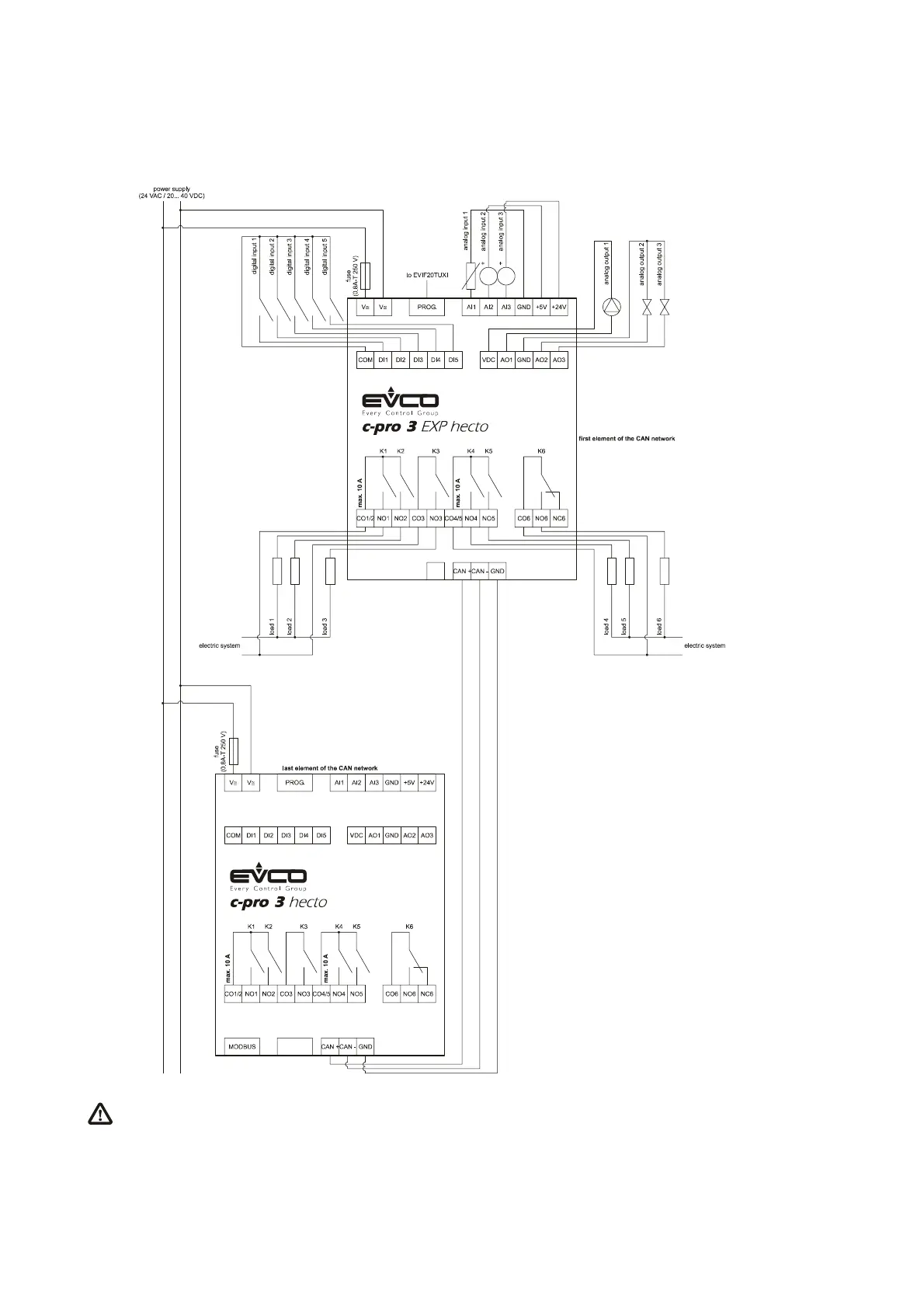

The following drawing shows an example of electrical connection of c-pro 3 EXP hecto.
To reduce the reflections on the signal transmitted through the cables connecting the devices each other, plug in the
termination of the CAN port of the first and of the last element of the network.
