EVCO S.p.A. c-pro 3 | Hardware manual ver. 2.0 | Code 114CP3E204
page 13 of 86
3.4. Installation
On DIN rail 35.0 x 7.5 mm (1.377 x 0.295 in) or 35.0 x 15.0 mm (1.377 x 0.590 in).

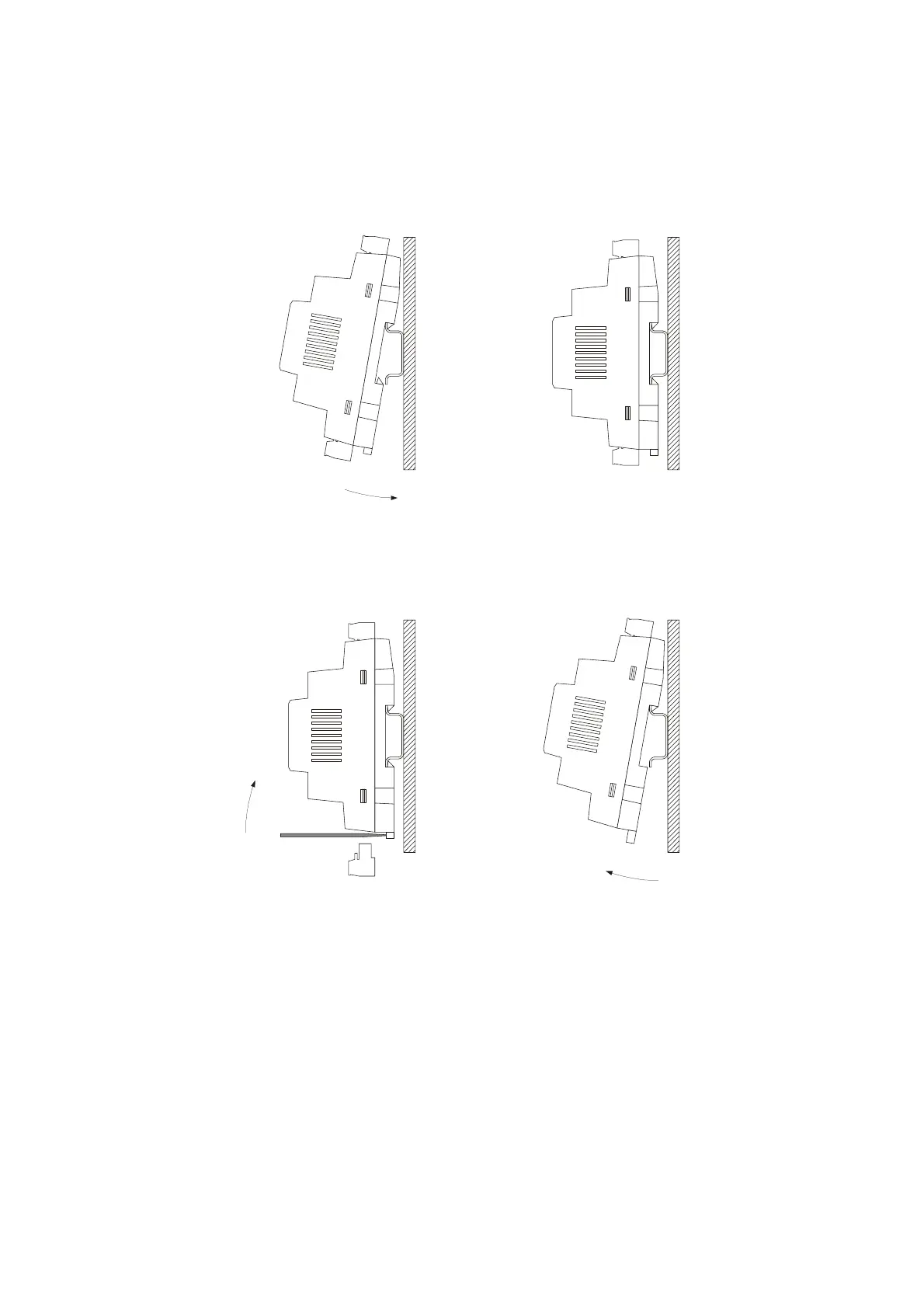

To install the devices operate as shown in the following drawing.
1 2
To remove the devices remove possible extractable screw terminal blocks plugged at the bottom first, then operate on the DIN rail clips
with a screwdriver as shown in the following drawing.
3 4
To install the devices again press the DIN rail clips to the end first.
3.5. Additional information for installation
- working conditions (working temperature, humidity, etc.) must be between the limits indicated in the technical data
- do not install the devices close to heating sources (heaters, hot air ducts, etc.), equipments provided with big magnetos (big
speakers, etc.), locations subject to direct sunlight, rain, humidity, dust, mechanical vibrations or bumps
- according to the safety legislation, the protection against electrical parts must be ensured by a correct installation of the
devices; the parts that ensure the protection must be installed so that you can not remove them if not by using a tool.
