Evco c-pro 3 Series - Size; Connection to the Controller

EVCO S.p.A. c-pro 3 | Hardware manual ver. 2.0 | Code 114CP3E204
page 74 of 86
The following table shows the meaning of the parts of the key.
Part Meaning
1 telephone connector
2 connector for power supplier EVPS

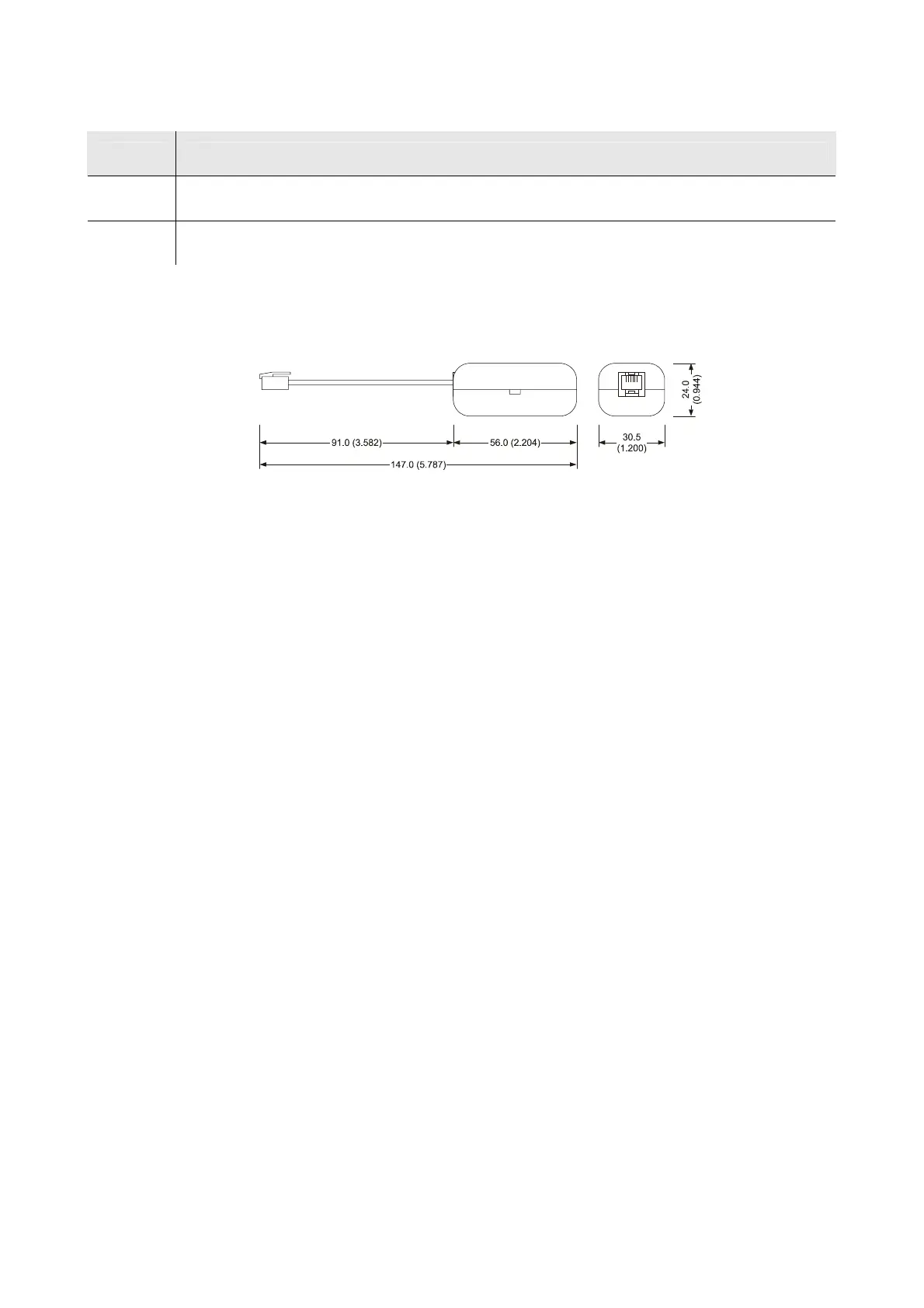

8.2.3. Size
Size is in mm (in).
8.2.4. Connection to the controller
Operate as follows:
1. Plug in the telephone connector of the key into the programming and debugging port of the controller.
To copy the parameters from the controller to the key and vice-versa look at chapter 6 “CONFIGURATION”.
For further information consult the Software manual of UNI-PRO 3.
