EVCO S.
p.A.
c-pro 3
| Hardware manual ver. 2.0 | Code 114CP3E204
page 21 of 86
4.1.2.
Example of el
ectrical connect
ion of
c-pro 3 hecto

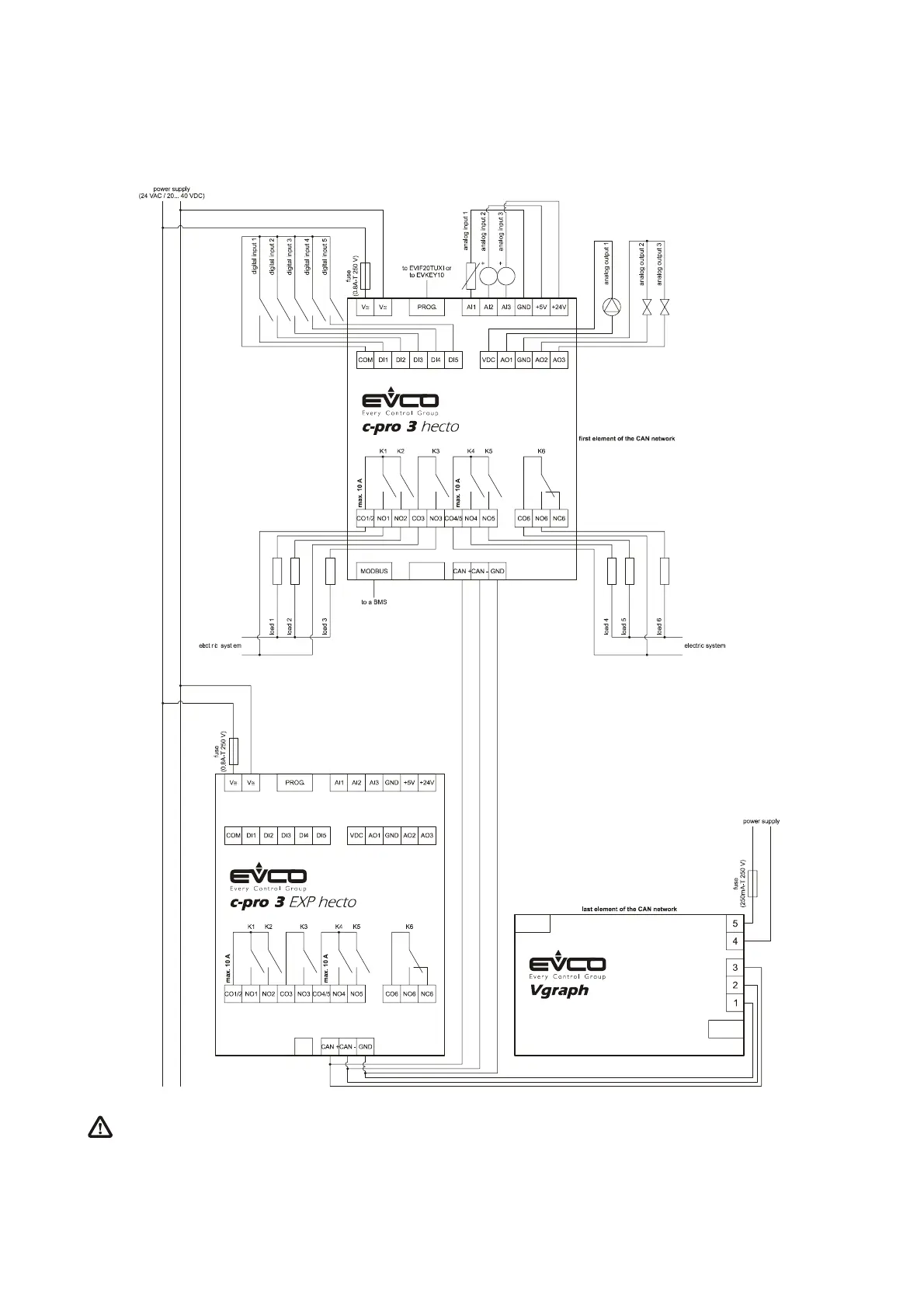

The following shows an example of electrical connecti
on of
c-pro 3
hect
o
.
To reduce the reflections on the signal transmitted through the cables connecting the devices each other, plug in the
terminat
ion of the CAN port of the first and of the last element of the netw
ork.
20
22
Table of Contents
Default Chapter
3
Table of Contents
3
Introduction
5
2 Description
7
Description C-Pro 3 Hecto and C-Pro 3 Hecto
7
Description C-Pro 3 Mega
8
Description C-Pro 3 NODE Mega
9
Description C-Pro 3 EXP Hecto and C-Pro 3 EXP Hecto
10
3 Size and Installation
11
Size C-Pro 3 Hecto, C-Pro 3 Hecto+, C-Pro 3 EXP Hecto and C-Pro 3 EXP Hecto
11
Size C-Pro 3 Mega
11
Size C-Pro 3 NODE Mega
12
Installation
13
Additional Information for Installation
13
4 Electrical Connection
14
Electrical Connection C-Pro 3 Hecto and C-Pro 3 Hecto
14
Meaning of the Connectors of C-Pro 3 Hecto and of C-Pro 3 Hecto
14
Example of Electrical Connection of C-Pro 3 Hecto
21
Electrical Connection C-Pro 3 Mega and C-Pro 3 NODE Mega
22
Meaning of the Connectors of C-Pro 3 Mega and of C-Pro 3 NODE Mega
22
Example of Electrical Connection of C-Pro 3 Mega
30
Electrical Connection C-Pro 3 EXP Hecto and C-Pro 3 EXP Hecto
31
Meaning of the Connectors of C-Pro 3 EXP Hecto and of C-Pro 3 EXP Hecto
31
Example of Electrical Connection of C-Pro 3 EXP Hecto
36
Additional Information for Electrical Connection
37
5 User Interface
38
Keyboard
38
Signalling Leds
38
Leds at the Front of the Device
38
Leds on the RS-485 Ports
39
6 Configuration
40
Configuring a Programmable Controller
40
Configuring a Built-In Programmable Controller
40
Configuring a Blind Programmable Controller
42
Configuring an I / O Expansion
43
Configuring a Device through an User Interface (Vgraph, Vtouch or Vroom)
44
List of Configuration Parameters
45
List of Configuration Parameters of C-Pro 3 Hecto and of C-Pro 3 Hecto
45
List of Configuration Parameters of C-Pro 3 Mega and of C-Pro 3 NODE Mega
52
List of Configuration Parameters of C-Pro 3 EXP Hecto and of C-Pro 3 EXP Hecto
62
7 User Interfaces
66
Preliminary Information
66
Vgraph
66
Introduction
66
Summarizing Table of the Main Features and Available Models
66
Size
67
Vtouch
68
Introduction
68
Summarizing Table of the Main Features and Available Models
68
Size
69
Vroom
70
Introduction
70
Summarizing Table of the Main Features and Available Models
70
Size
71
8 Accessories
72
Programming Kit EVIF20TUXI
72
Introduction
72
Description
72
Size
73
Connection to the Personal Computer
73
Programming Key EVKEY10
73
Introduction
73
Description
73
Size
74
Connection to the Controller
74
9 Technical Data
75
