EVCO S.
p.A.
c-pro 3
| Hardware manual ver. 2.0 | Code 114CP3E204
page 30 of 86
4.2.2.
Example of el
ectrical connect
ion of
c-pro 3 mega

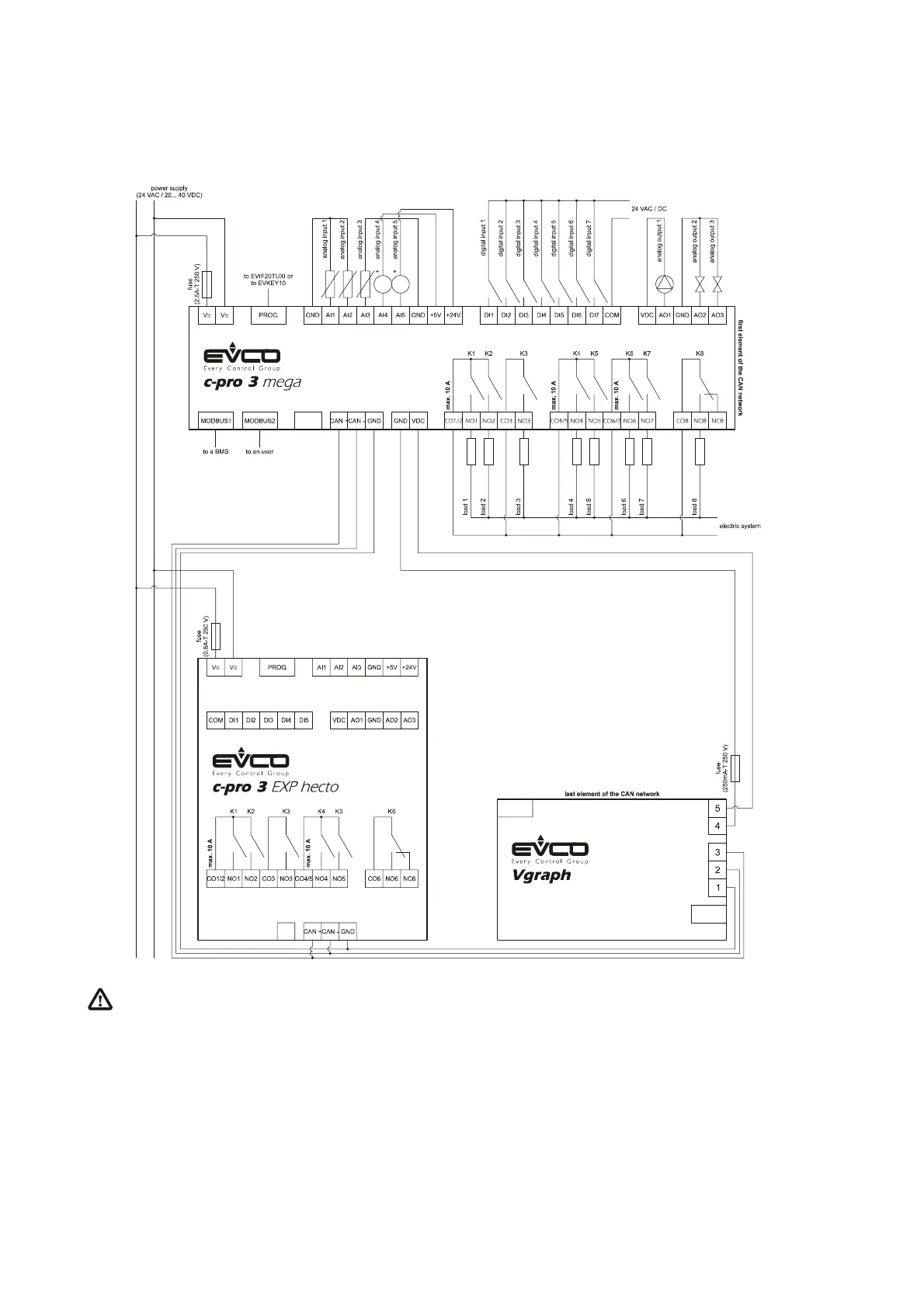

The following drawing shows an example of electric
al connection of
c-pro 3
mega
.
To reduce the reflections on the signal transmitted through the cables connecting the devices each other, plug in the
terminat
ion of the CAN port of the first and of the last element of the netw
ork.
29
31
