2.2. Description c-pro 3 mega

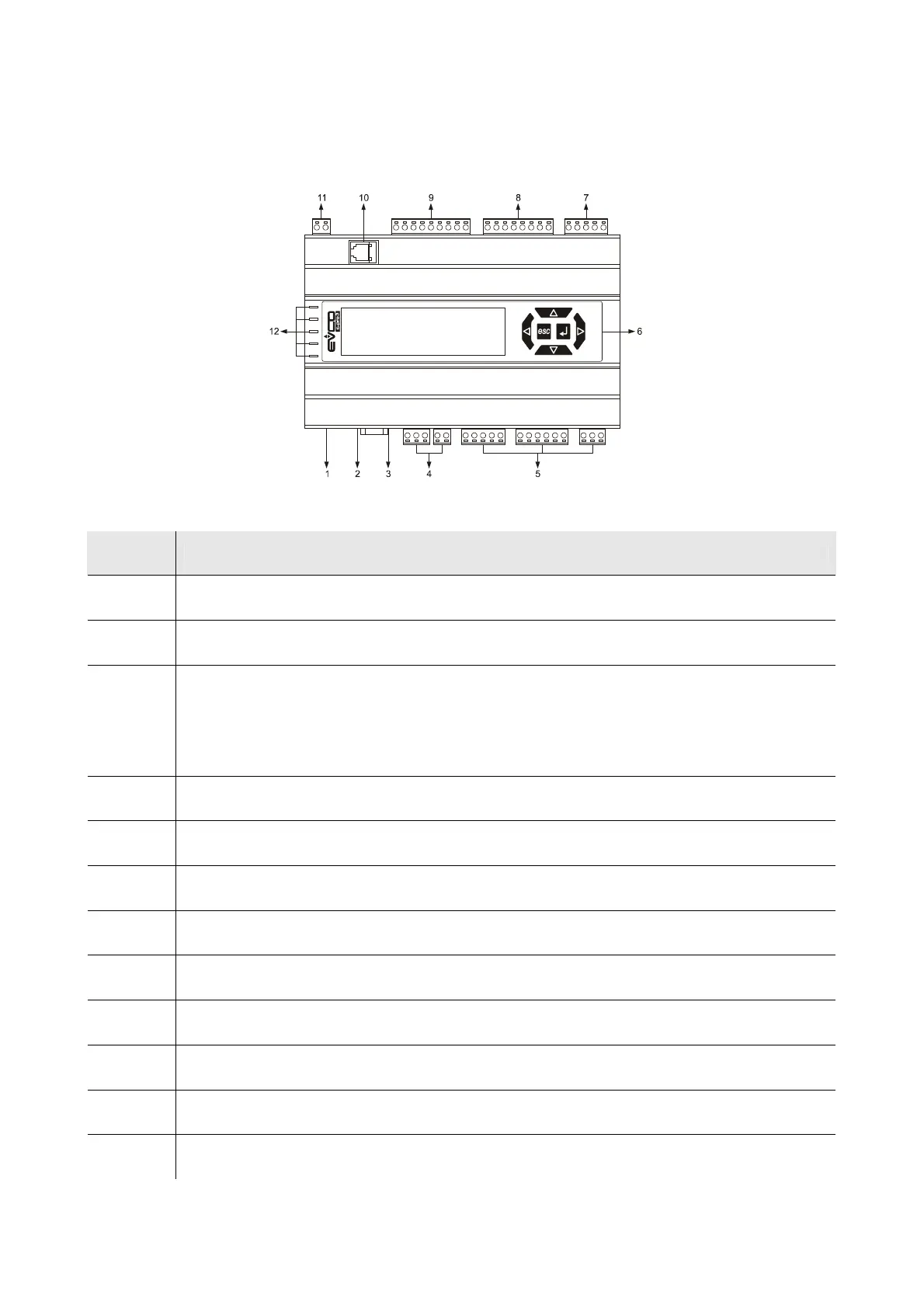

The following drawing shows the aspect of c-pro 3 mega.
The following table shows the meaning of the parts of the controller.
Part Meaning
1 RS-485 port with Modbus slave communication protocol (hereinafter also called first RS-485 port)
2 RS-485 port with Modbus master / slave communication protocol (hereinafter also called second RS-485 port)
3
micro-switch to:
- plug in the terminations of the RS-485 ports
- polarize the network of the second RS-485 port
- plug in the termination of the CAN port
4 CAN port
5 digital outputs
6 display and keyboard (not available in the blind versions)
7 analog outputs
8 digital inputs
9 analog inputs
10 programming and debugging port
11 power supply
12 signalling LEDs
