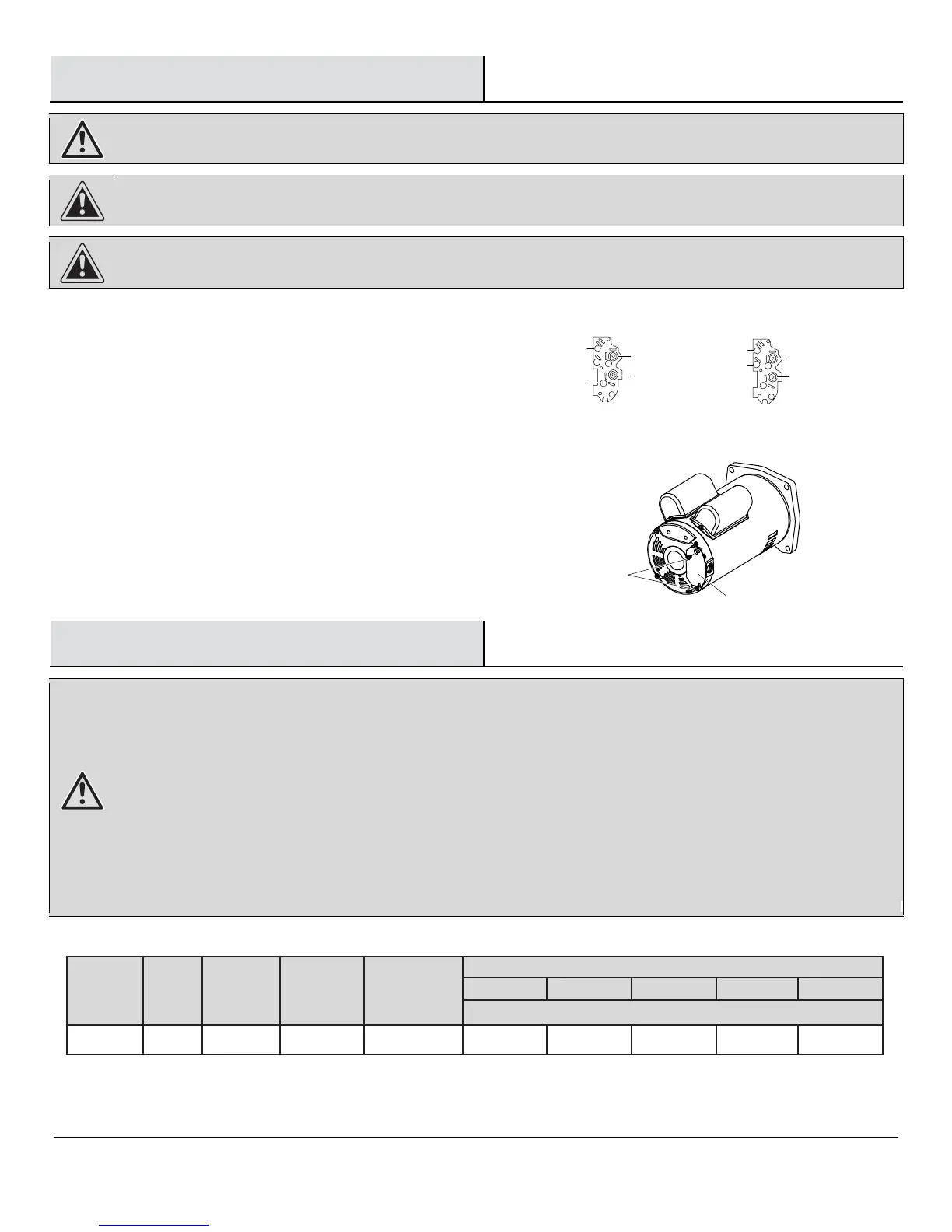

Electrical Settings
WARNING: Disconnect power before working on the pump, motor, pressure switch, or wiring.
CAUTION: The motor may b
e hot. Allow the motor to cool for 20 minutes after shut down.
CAUTION: Water pressure may have built up in the pump, pipes, or tank. Drain water to relieve pressure.
MOTOR SWITCH SETTINGS
Motors are designed to run on
either 115 volt or 230 volt current.
Ensure the motor’s current is set to match the current being
supplied to your motor from the electrical source.
To ensure your motor is set at the correct current setting, remove
the motor cover plate from the motor and inspect the wiring connections to
ensure they are set correctly.
Wiring Connections
WARNING: Risk of el
ectric shock. Can shock, burn, or kill.
1. To avoid dangerous or fatal electrical shock, turn OFF power to the motor before working on electrical
con
nections.
2. Grou
nd the motor before connecting to electrical power supply. Failure to ground the motor can cause severe or
fatal electrical shock hazard.
3. Supply voltage must be within +/- 10% of the nameplate voltage. Incorrect voltage can cause fire or damage the
motor and voids the warr
anty. If in doubt consult a licensed electrician.
4. Use a
wire size specified in the Wiring Chart (below). If possible, connect the pump to a separate branch circuit
with no other appliances on it.
5. Do not ground to a gas suppl
y line.
RECOMMENDED WIRE AND
FUSE SIZES FOR 115 AND 230 VOLTS
MOTOR HP
VOLTS
MAX. LOAD
AMP
BRANCH
FUSE
RATING AMP
AWG MIN. WIRE
SIZE (mm
2
)
DISTANCE
IN FEET FROM MOTOR TO SUPPLY
0-100 101-200 201-300 301-400 401-500
AWG WIRE SIZE
(mm
2
)
1-1/2
115/230 20.09/10.05 32/15 10/14 (5.5/2) 6/14 (14/2) 8/14 (8.4/2) 6/12 (14/3) 4/10 (21/5.5) 4/10 (21/5.5)
1
15V 60HZ115V 60HZ 230V 60HZ
Plate Screws
Motor Cover Plate
BLUE
WHITE
3
2
1
4
BL
UE
HI
TE
3
2
1
4
Lin
e 1
Line 2
Li
ne 1
Line 2
6. Wire the motor according to the
7. If the diagram
on the motor cover plate differs fr om the diagrams in this section, follow the diagram on the
8.
If this procedure or the wiring diagrams are confusing, consult a licensed electrician.
diagram on the motor cover plate.
motor cover plate.
