Everlast Typhoon 330 - Pin Connector Pinout and Information for Remote

63

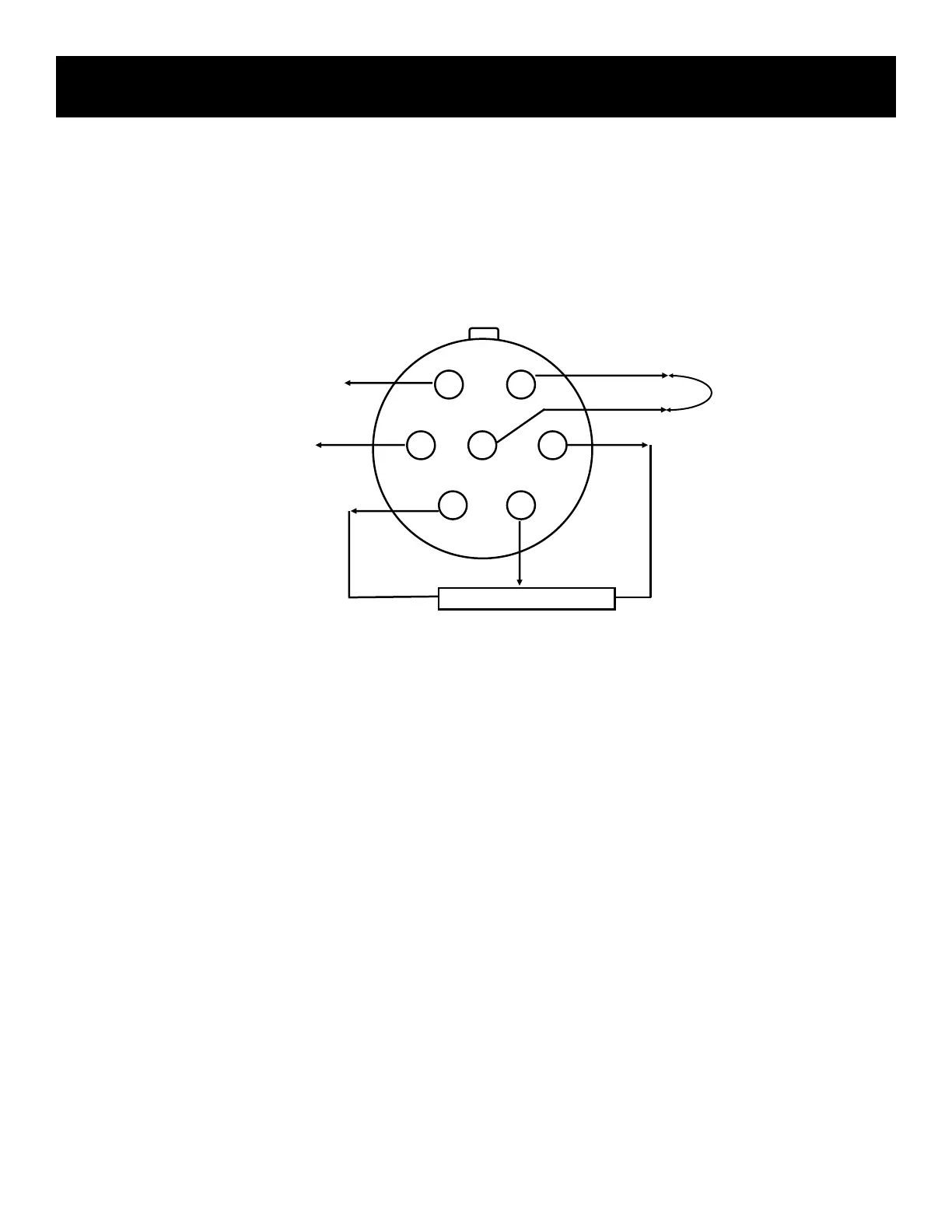

7 PIN CONNECTOR FOR 10K Ω NOVA FOOT PEDAL
To Pedal or Torch Switch ON/OFF
To Pedal or Torch Switch ON/OFF
1
2
3
4
5
6
7
Low
Middle/Common
High
Potentiometer (VR)
Component Identification and Explanation
Bridge a Jumper to Pins 6 and 7
